Standard vertical block for direct connection to Rear SCV
Applications
Casting solutions with integrated cartridges for agricultural machinery

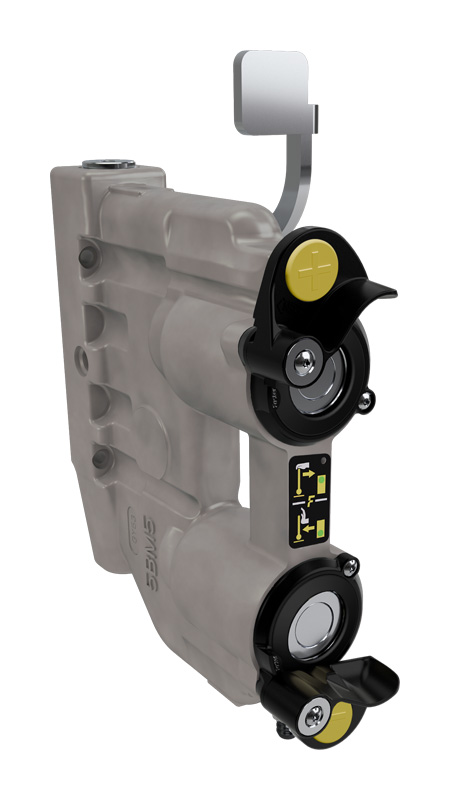

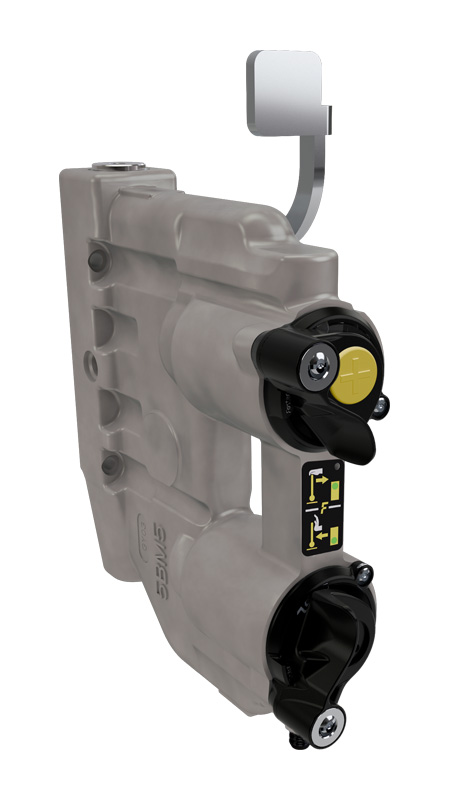

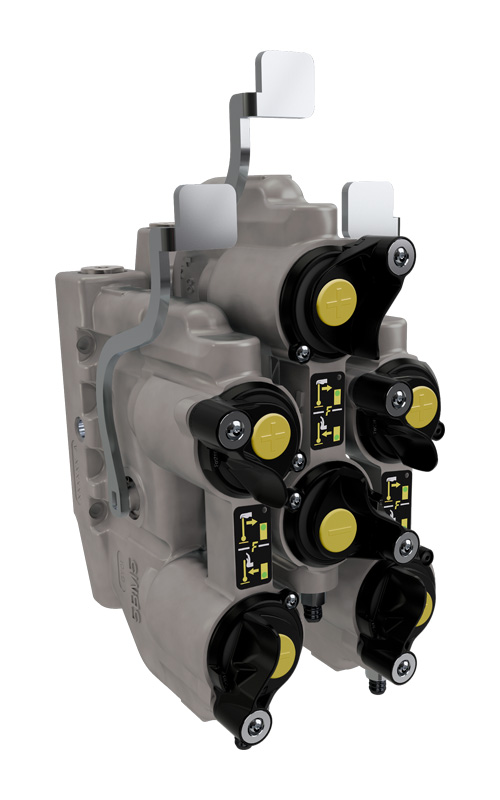

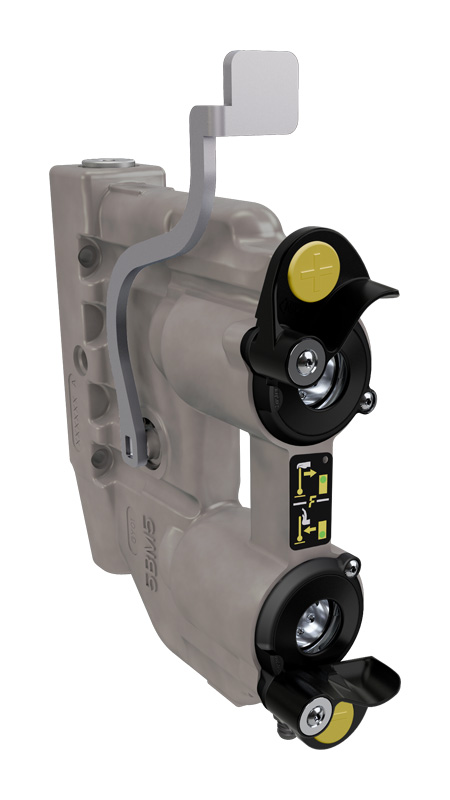

GenYus manifolds can host two 1/2" or 3/4" ISO 7241 part A poppet valve cartridges, or two ISO 16028 flat face cartridges. This series can be directly screwed to two of the most popular hydraulic SCV series: Bosch SB24-34 and Danfoss PVBZ 40; also, by means of custom flanged adapters. installation can be extended to other SCV models too.
Downloads
Data sheet
Items
Specs
Female
Female
Filter items
Units
Metric
Imperial
Size (mm)
12.5 mm
16 mm
19 mm
Size (in)
1/2"
5/8"
3/4"
PartNumber
Thread
Details
D1
L1
L2
Parametric drawing type
Housings
Couplings
12,5
1/2"
|1/2|
5BMGYV08 01 A
Specs
D1:
63 mm
2.48"
L1:
199 mm
7.83"
L2:
272
10.71

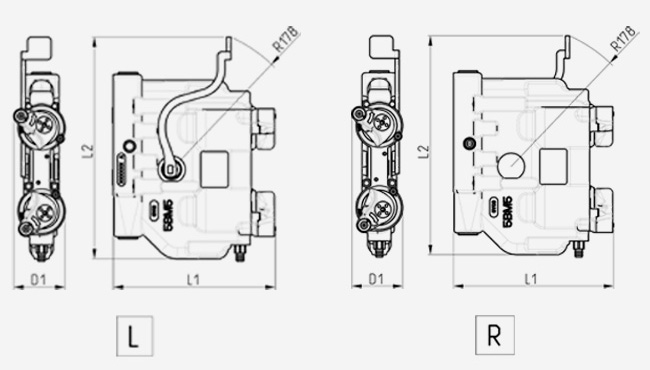

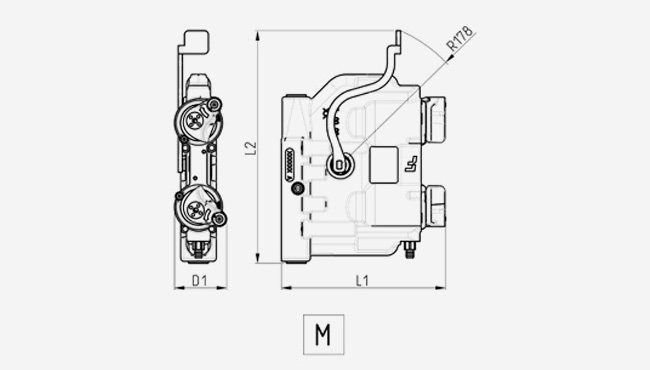

Parametric drawing type:
L
Flow Rate:
65 (l/min) at 0.2 MPa
17.171 (gal/min) at 0.2 MPa
Seals:
HNBR & PUR
63
2.48
7.83
199
10.71
272
L
2
2
12,5
1/2"
|1/2|
5BMGYV08 02 A
Specs
D1:
63 mm
2.48"
L1:
199 mm
7.83"
L2:
282
11.1
Parametric drawing type:
M
Flow Rate:
65 (l/min) at 0.2 MPa
17.171 (gal/min) at 0.2 MPa
Seals:
HNBR & PUR
63
2.48
7.83
199
11.1
282
M
2
2
12,5
1/2"
|1/2|
5BMGYV08 03 A
Specs
D1:
63 mm
2.48"
L1:
199 mm
7.83"
L2:
272
10.71
Parametric drawing type:
R
Flow Rate:
65 (l/min) at 0.2 MPa
17.171 (gal/min) at 0.2 MPa
Seals:
HNBR & PUR
63
2.48
7.83
199
10.71
272
R
16
5/8"
|5/8|
5BMGYF10 51 A
Specs
D1:
63 mm
2.48"
L1:
204 mm
8.03"
L2:
272
10.71
Parametric drawing type:
L
Flow Rate:
65 (l/min) at 0.2 MPa
17.171 (gal/min) at 0.2 MPa
Seals:
HNBR & PUR
63
2.48
8.03
204
10.71
272
L
16
5/8"
|5/8|
5BMGYF10 52 A
Specs
D1:
63 mm
2.48"
L1:
204 mm
8.03"
L2:
282
11.1
Parametric drawing type:
M
Flow Rate:
65 (l/min) at 0.2 MPa
17.171 (gal/min) at 0.2 MPa
Seals:
HNBR & PUR
63
2.48
8.03
204
11.1
282
M
16
5/8"
|5/8|
5BMGYF10 53 A
Specs
D1:
63 mm
2.48"
L1:
204 mm
8.03"
L2:
272
10.71
Parametric drawing type:
R
Flow Rate:
65 (l/min) at 0.2 MPa
17.171 (gal/min) at 0.2 MPa
Seals:
HNBR & PUR
63
2.48
8.03
204
10.71
272
R
19
3/4"
|3/4|
5BMGYV12 51 A
Specs
D1:
63 mm
2.48"
L1:
199 mm
7.83"
L2:
272
10.71
Parametric drawing type:
L
Flow Rate:
75 (l/min) at 0.2 MPa
19.813 (gal/min) at 0.2 MPa
Seals:
HNBR & PUR
63
2.48
7.83
199
10.71
272
L
19
3/4"
|3/4|
5BMGYV12 52 A
Specs
D1:
63 mm
2.48"
L1:
199 mm
7.83"
L2:
282
11.1
Parametric drawing type:
M
Flow Rate:
75 (l/min) at 0.2 MPa
19.813 (gal/min) at 0.2 MPa
Seals:
HNBR & PUR
63
2.48
7.83
199
11.1
282
M
19
3/4"
|3/4|
5BMGYV12 53 A
Specs
D1:
63 mm
2.48"
L1:
199 mm
7.83"
L2:
272
10.71
Parametric drawing type:
R
Flow Rate:
75 (l/min) at 0.2 MPa
19.813 (gal/min) at 0.2 MPa
Seals:
HNBR & PUR
63
2.48
7.83
199
10.71
272
R
Technical Specifications
Burst pressure (MPa)
Burst pressure (psi)
Dash Size
Size (
mm
Inch
)
Working Pressure
Flow Rate (
l/min
gal/min
)
Spillage (ml)
Force to connect (N)
Female
Burst pressure
Male + Female
Burst pressure
08
12.5
1/2"
25 MPa
3625.943 psi
65
17.171
1.8
110
100 MPa
100
14503.774 psi
14503.774
100 MPa
100
14503.774 psi
14503.774
10
16
5/8"
25 MPa
3625.943 psi
65
17.171
0.02
110
100 MPa
100
14503.774 psi
14503.774
100 MPa
100
14503.774 psi
14503.774
12
19
3/4"
25 MPa
3625.943 psi
75
19.813
9
120
100 MPa
100
14503.774 psi
14503.774
100 MPa
100
14503.774 psi
14503.774
Material:
Cast Iron & Steel
Seals:
HNBR & PUR
Working temperatures:
-30 °C to 100 °C
-22 °F to 212 °F
Surface treatment:
CrIII
Warnings:
This product can expose you to chemicals such as Lead or Nickel which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to
www.p65warnings.ca.gov
.
Specifications:
Series Interchange: ISO 7241-A
Valve Type: Poppet
Connection: Push to Connect
Disconnection: Lever
Connection Under Pressure: Connection and disconnection under residual pressure both halves
