Rear Remote Block
Applications
Agriculture

General purpose remote casting solutions for agriculture with integrated cartridges

The cast iron block is equipped with two integrated 1/2" cartridges, in accordance to ISO 7241 part A standard. Push-Pull connection type. Connection and disconnection under pressure is allowed, thanks to the lever, specifically designed to ensure depressurization of the internal circuit. Thanks to the special design, this kind of blocks can be connected by means of rigid hoses to distant selective control vales.
Downloads

Female

Filter items
Units
PartNumber Thread Details L1 L2 Housings Couplings
12,5 1/2" 5BM5DCPV02 C
Specs
Flow Rate: 55 (l/min) at 0.2 MPa 14.529 (gal/min) at 0.2 MPa
Seals: HNBR & PUR
Weight: 4202 g 9.26 lb

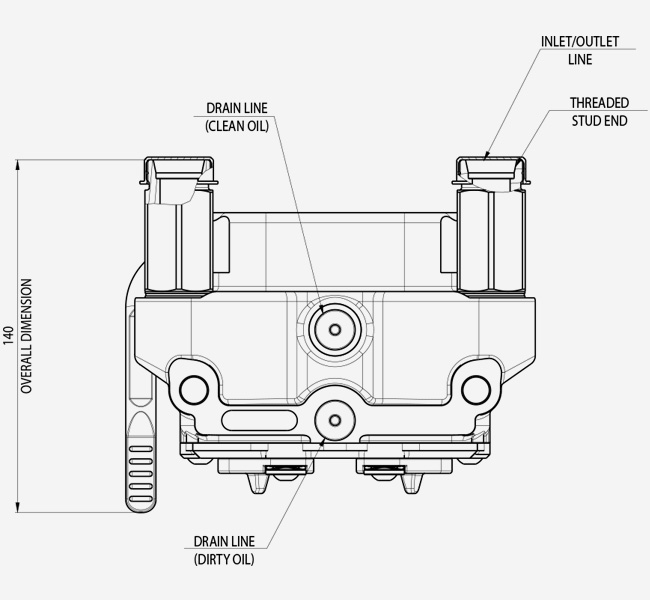

5.51 140 2.91 74 2 2
  • Various Accessories
  • Seals

Accessories & Spares

Size (mm) Size (in) Thread Part Number Material
12,5 1/2" KIT 5DCPVA08 A Steel
Seal kits
Size Thread Part Number
12,5 mm 1/2" KITAE12S+OR12LT
Technical Specifications
Dash Size Size (mmInch) Working Pressure Flow Rate (l/mingal/min) Spillage (ml) Force to connect (N) Female Burst pressure Male + Female Burst pressure
08 12.5 1/2" 25 MPa 3625.943 psi 55 14.529 1.8 300 100 MPa 14503.774 psi 100 MPa 14503.774 psi
Material:
Cast Iron & Steel
Seals:
HNBR & PUR
Working temperatures:
-25 °C to 125 °C -13 °F to 257 °F
Surface treatment:
Paint
Specifications:
Series Interchange: ISO 7241-A
Valve Type: Poppet
Connection: Push to Connect
Disconnection: Lever
Connection Under Pressure: Allowed Both Halves up to W.P.
