Quick Swivel
Applications
Agriculture Construction Equipment Industrial Forestry

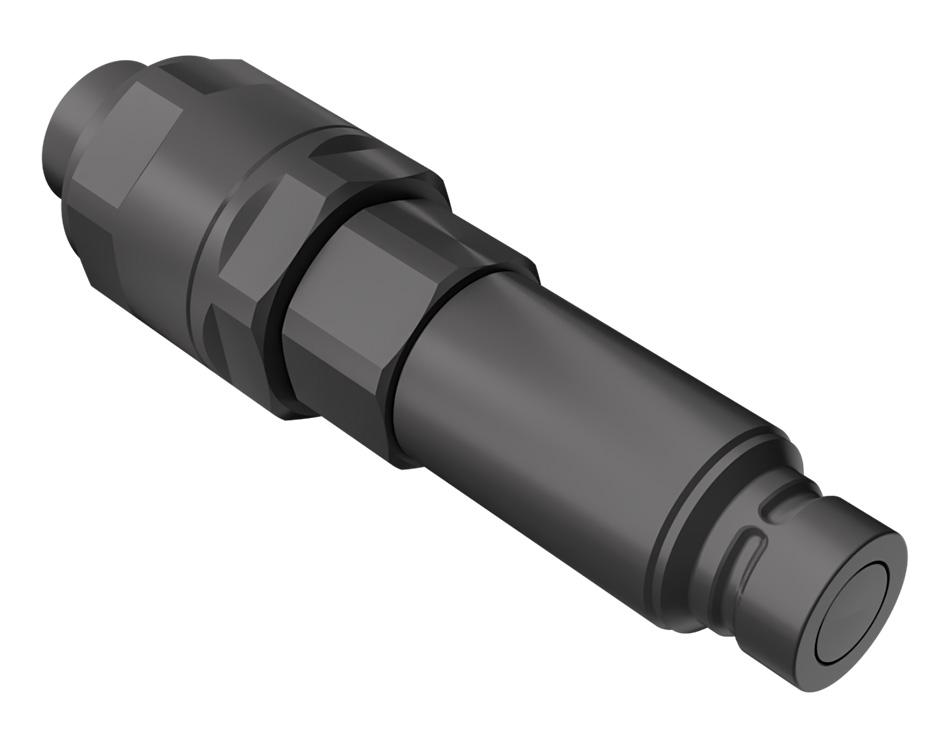

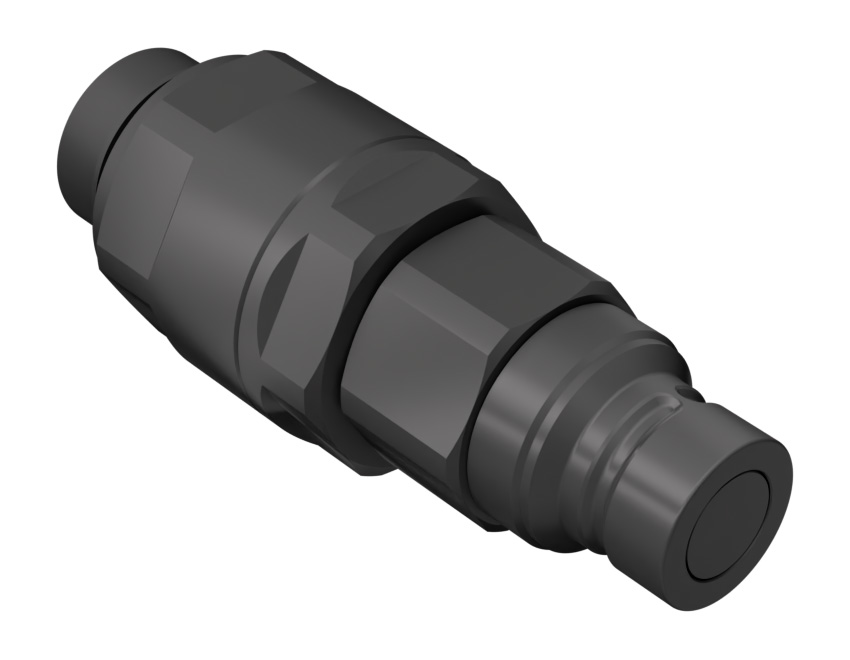

Solution integrating a Taimi Swivel into a flat face male coupling (FFH or 3FFH series), allowing the coupler to rotate under pressure without getting damaged.

This product allowes quick connection/disconnection of a hydraulic circuit while providing all of the benefits of a traditional swivel preventing premature wear, hose failure and system downtime. Both "SC" and "SD" types are compatible with ISO 16028 standard, with the "SD" type specifically designed to facilitate connection under residual pressure, an enhanced feature beyond the "SC" type capabilities.

Male

Filter items
Units

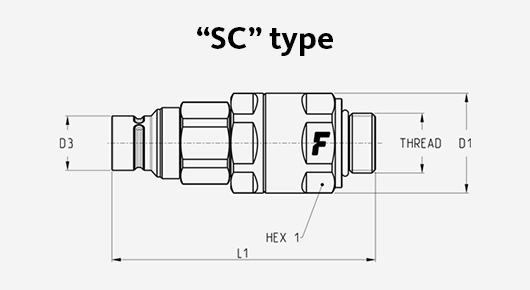

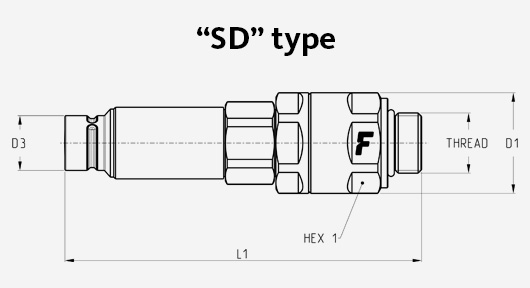

PartNumber Thread 1 (T1) Specs HEX1 D1 L1 D3
12,5 1/2" new SW-FF-08-SC-1/34S M
Specs
Thread 1 (T1):1-1/16"-12 UN MALE - ISO 11926-3
Flow Rate: 110 (l/min) at 0.2 MPa 29.059 (gal/min) at 0.2 MPa
Seals: NBR & PUR
41 1.61 45 1.77 4.67 118.7 24,5
12,5 1/2" new SW-FF-08-SD-1/34S M
Specs
Thread 1 (T1):1-1/16"-12 UN MALE - ISO 11926-3
Seals: NBR & PUR
41 1.61 45 1.77 6.28 159.4 24,5
19 3/4" new SW-FF-12-SC-1/34S M
Specs
Thread 1 (T1):1-1/16"-12 UN MALE - ISO 11926-3
Flow Rate: 120 (l/min) at 0.2 MPa 31.701 (gal/min) at 0.2 MPa
Seals: NBR & PUR
48 1.89 50 1.97 5.31 135 29,95
19 3/4" new SW-FF-12-SD-1/34S M
Specs
Thread 1 (T1):1-1/16"-12 UN MALE - ISO 11926-3
Seals: NBR & PUR
48 1.89 50 1.97 6.38 162 29,95
Technical Specifications
Dash Size Size (mmInch) Working Pressure Burst pressure
08 12.5 1/2" 35 MPa 5076.321 psi 140 MPa 20305.283 psi
12 19 3/4" 35 MPa 5076.321 psi 140 MPa 20305.283 psi
Material:
Steel
Seals:
NBR & PUR
Working temperatures:
-25 °C to 100 °C -13 °F to 212 °F
Surface treatment:
MATE 1000 (ZnNi)
