Product series
PSA06
Applications

MultiFaster 4 lines, size 06 (3/8"). ISO 16028 individual couplings connectable.

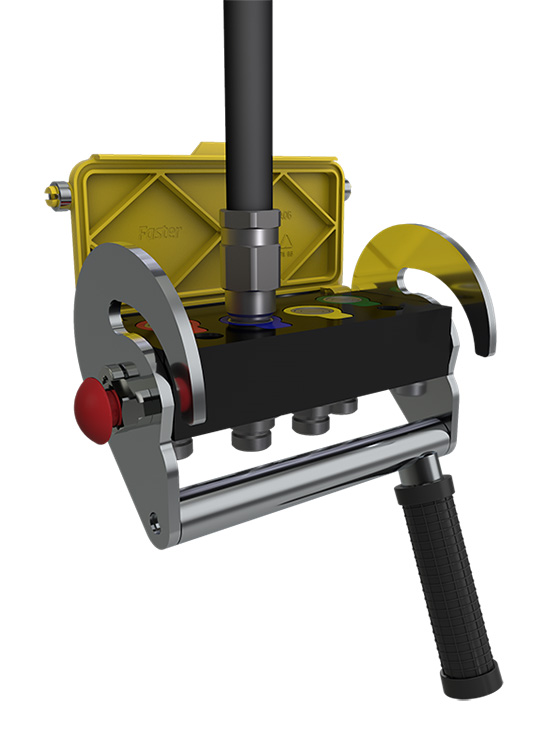

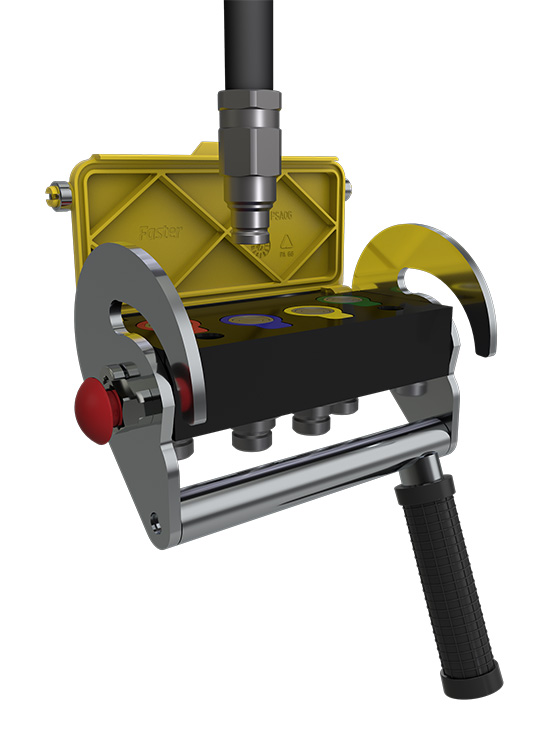

Thanks to the special cartridges design, it's possible to connect to this series either a PS06 mobile half or up to four ISO 16028 3/8" individual couplings.

Female

Filter items
Units
PartNumber Details
10 2PSA06-1-4-2/22FWC
Specs
4 x Couplings 3/8":M22x1,5 MALE 15L - ISO 8434-1-L
Flow Rate: 40 (l/min) at 0.2 MPa
1 Electrical Contact :3 Pins
Seals: NBR & PUR
Weight: 3550 g
5 4 1
10 2PSA06-4-2/22FC
Specs
4 x Couplings 3/8":M22x1,5 MALE 15L - ISO 8434-1-L
Flow Rate: 40 (l/min) at 0.2 MPa
Seals: NBR & PUR
Weight: 3550 g
4 4
Technical Specifications
Dash Size Size (mm) Working Pressure Flow Rate (l/min) Spillage (ml) Male Burst pressure Female Burst pressure Male + Female Burst pressure
06 10 2P 25 MPa 40 0.008 100 MPa 100 MPa 100 MPa
Material:
Aluminium & Steel
Seals:
NBR & PUR
Working temperatures:
-25 °C to 100 °C
Surface treatment:
MATE 500 (CrIII) & Paint
Specifications:
Series Interchange: MultiFaster
Valve Type: Flat
Connection: Lever
Disconnection: Lever
Connection Under Pressure: Allowed Residual
