Product series
PH406
Applications

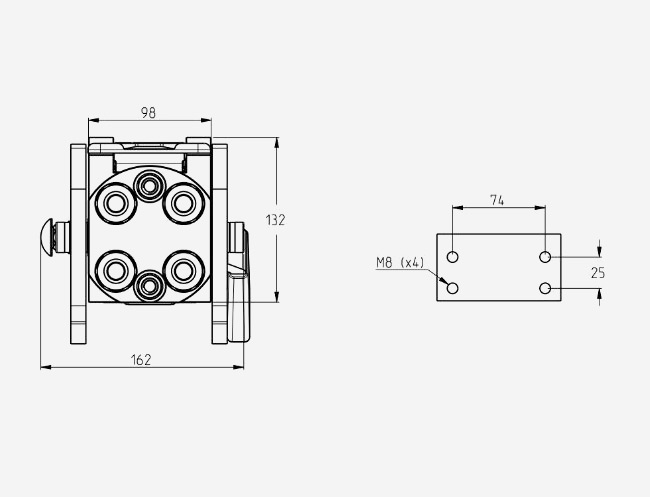

MultiFaster, high pressure version, 4 lines size 06.
New multi-connection system specifically designed to withstand high pressure applications (46 MPa). Equipped with 4 lines size 06. Available in two versions: Red paint plates with stainless steel handle and cams, or Black cataphoresis plates with Zn-Ni plated carbon steel handle and cams (part number with S).
Downloads
Data sheet
User Instruction
Configure your Multifaster
Items
Specs
Female
Male
Accessories
Female
Filter items
Units
Metric
Imperial
Size (mm)
10 mm
Size (mm)
Size (mm)
10 mm
Size (in)
3/8"
Size (in)
Size (in)
3/8"
PartNumber
Details
Housings
Couplings
10
3/8"
|3/8|
PH406-4-38G F C
Specs
4 x Couplings 3/8":
BSPP 3/8" FEMALE - ISO 1179-1
Flow Rate:
35 (l/min) at 0.2 MPa
9.246 (gal/min) at 0.2 MPa
Temperature:
-25 °C to 100 °C
-13 °F to 212 °F
Seals:
NBR & PUR
Weight:
5188.2 g
11.44 lb
For more information contact us:
info@fastercouplings.com
4
4
10
3/8"
|3/8|
PH406-4-A F C
Specs
4 x Couplings 3/8":
M20x1.5 MALE 12S - ISO 8434-1-S
Flow Rate:
35 (l/min) at 0.2 MPa
9.246 (gal/min) at 0.2 MPa
Temperature:
-25 °C to 100 °C
-13 °F to 212 °F
Seals:
NBR & PUR
For more information contact us:
info@fastercouplings.com
4
4
10
3/8"
|3/8|
PH406S-4-38G F C
Specs
4 x Couplings 3/8":
BSPP 3/8" FEMALE - ISO 1179-1
Flow Rate:
35 (l/min) at 0.2 MPa
9.246 (gal/min) at 0.2 MPa
Seals:
NBR & PUR
Weight:
5188 g
11.44 lb
4
4
Male
Filter items
Units
Metric
Imperial
Size (mm)
10 mm
Size (mm)
Size (mm)
10 mm
Size (in)
3/8"
Size (in)
Size (in)
3/8"
PartNumber
Specs
Housings
Couplings
10
3/8"
|3/8|
3PH406-4-38G MC
Specs
4 x Couplings 3/8":
BSPP 3/8" FEMALE - ISO 1179-1
Flow Rate:
35 (l/min) at 0.2 MPa
9.246 (gal/min) at 0.2 MPa
Temperature:
-25 °C to 100 °C
-13 °F to 212 °F
Seals:
NBR & PUR
Weight:
2523 g
5.56 lb
For more information contact us:
info@fastercouplings.com
4
4
10
3/8"
|3/8|
3PH406-4-A M C
Specs
4 x Couplings 3/8":
M20x1.5 MALE 12S - ISO 8434-1-S
Flow Rate:
35 (l/min) at 0.2 MPa
9.246 (gal/min) at 0.2 MPa
Temperature:
-25 °C to 100 °C
-13 °F to 212 °F
Seals:
NBR & PUR
For more information contact us:
info@fastercouplings.com
4
4
10
3/8"
|3/8|
3PH406S-4-38G M C
Specs
4 x Couplings 3/8":
BSPP 3/8" FEMALE - ISO 1179-1
Flow Rate:
35 (l/min) at 0.2 MPa
9.246 (gal/min) at 0.2 MPa
Seals:
NBR & PUR
Weight:
2523 g
5.56 lb
4
4
Technical Specifications
Burst pressure (MPa)
Burst pressure (psi)
Dash Size
Size (
mm
Inch
)
Working Pressure
Flow Rate (
l/min
gal/min
)
Spillage (ml)
Male
Burst pressure
Female
Burst pressure
Male + Female
Burst pressure
06
10
3/8"
46 MPa
6671.736 psi
35
9.246
0.008
138 MPa
138
20015.208 psi
20015.208
138 MPa
138
20015.208 psi
20015.208
138 MPa
138
20015.208 psi
20015.208
Material:
Aluminium & Steel
Seals:
NBR & PUR
Working temperatures:
-25 °C to 100 °C
-13 °F to 212 °F
Surface treatment:
MATE 1000 (ZnNi) & Paint
Warnings:
This product can expose you to chemicals such as Lead or Nickel which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to
www.p65warnings.ca.gov
.
Specifications:
Series Interchange: MultiFaster
Valve Type: Flat
Connection: Lever
Disconnection: Lever
Connection Under Pressure: Allowed Residual
