Product series
P506HD
Applications
Construction Equipment Industrial Oil&Gas Vehicles & Road Machines Forestry Mining

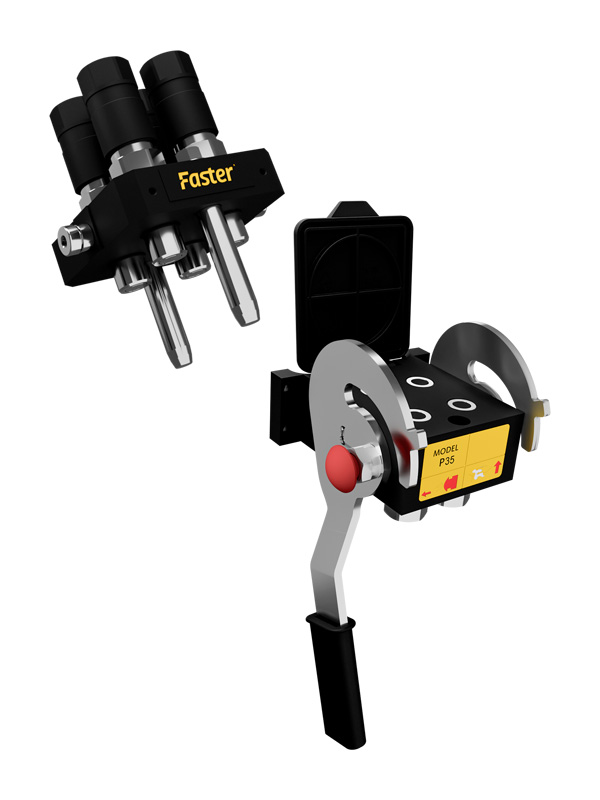

New Multifaster 350 bar, 4 lines size 06

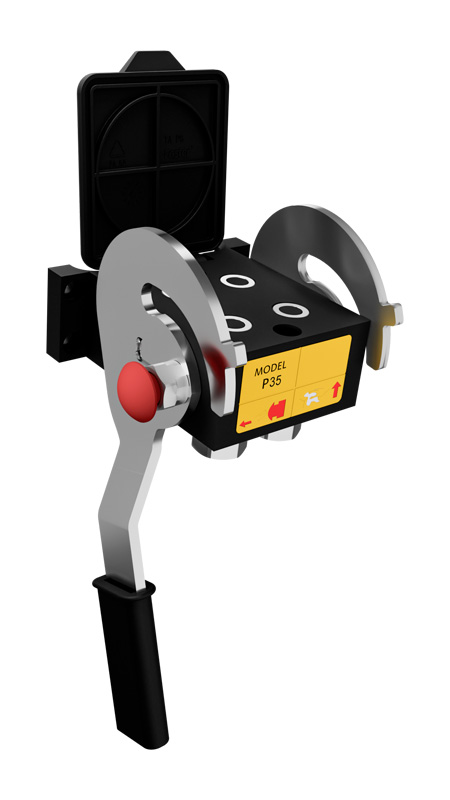

Female

Filter items
Units
PartNumber Details Housings Couplings
10 3/8" new P506HD-D-0000-4-AFC
Specs
4 x Couplings 3/8":BSPP 3/8" FEMALE - ISO 1179-1
Flow Rate: 40 (l/min) at 0.2 MPa 10.567 (gal/min) at 0.2 MPa
Seals: NBR & PUR
Weight: 3800 g 8.38 lb
* Right-hand lever and safety lock.
4 4
10 3/8" new P506HD-S-0000-4-AFC
Specs
4 x Couplings 3/8":BSPP 3/8" FEMALE - ISO 1179-1
Flow Rate: 40 (l/min) at 0.2 MPa 10.567 (gal/min) at 0.2 MPa
Seals: NBR & PUR
Weight: 3800 g 8.38 lb
* Left-hand lever and safety lock.
4 4

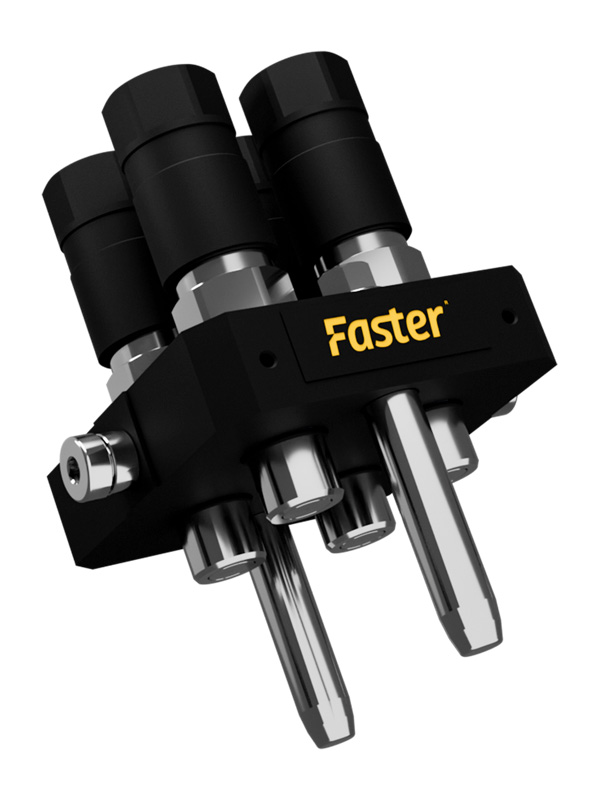

Male

Filter items
Units
PartNumber Specs Housings Couplings
10 3/8" new P506HD-0000-4-AMC
Specs
4 x Couplings 3/8":BSPP 3/8" FEMALE - ISO 1179-1
Flow Rate: 40 (l/min) at 0.2 MPa 10.567 (gal/min) at 0.2 MPa
Seals: NBR & PUR
Weight: 1700 g 3.75 lb
4 4
Technical Specifications
Dash Size Size (mmInch) Working Pressure Flow Rate (l/mingal/min) Spillage (ml) Male Burst pressure Female Burst pressure Male + Female Burst pressure
06 10 3/8" 35 MPa 5076.321 psi 40 10.567 0.008 105 MPa 15228.962 psi 105 MPa 15228.962 psi 105 MPa 15228.962 psi
Material:
Aluminium & Steel
Seals:
NBR & PUR
Working temperatures:
-25 °C to 100 °C -13 °F to 212 °F
Surface treatment:
MATE 500 (CrIII) & Paint
Specifications:
Series Interchange: MultiFaster
Valve Type: Flat
Connection: Lever
Disconnection: Lever
Connection Under Pressure: Allowed Residual
