Product series
P506-x

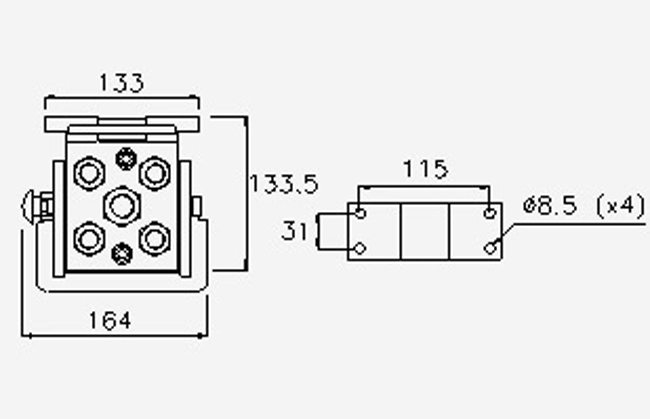

Applications

MultiFaster 5 lines (4 lines 06 and 1 line 08). The line 08 can be replaced by an electric connector.

Female

Filter items
Units
PartNumber Details Housings Couplings Electrical Contacts
10 & 12,5 3/8" & 1/2" 2P506-0-4-2/2FC
Specs
4 x Couplings 3/8":M22x1,5 MALE 15L - ISO 8434-1-L
Flow Rate: 40 (l/min) at 0.2 MPa 10.567 (gal/min) at 0.2 MPa
Seals: NBR & PUR
5 4
10 & 12,5 3/8" & 1/2" 2P506-0-4-D F C
Specs
4 x Couplings 3/8":M22x1,5 MALE 15L - ISO 8434-1-L
Flow Rate: 40 (l/min) at 0.2 MPa 10.567 (gal/min) at 0.2 MPa
Temperature: -25 °C to 100 °C -13 °F to 212 °F
Seals: NBR & PUR
Weight: 3500 g 7.72 lb

For more information contact us: [email protected]
* Right safey lock
5 4
10 & 12,5 3/8" & 1/2" 2P506-0-5-12GFC
Specs
1 x Coupling 1/2":BSPP 1/2" FEMALE - ISO 1179-1
Flow Rate: 70 (l/min) at 0.2 MPa 18.492 (gal/min) at 0.2 MPa
4 x Couplings 3/8":BSPP 1/2" FEMALE - ISO 1179-1
Flow Rate: 40 (l/min) at 0.2 MPa 10.567 (gal/min) at 0.2 MPa
Seals: NBR & PUR
Weight: 3800 g 8.38 lb
5 5
10 & 12,5 3/8" & 1/2" 2P506-0-5-S0 FC
Specs
4 x Couplings 3/8":BSPP 3/8" FEMALE - ISO 1179-1
Flow Rate: 40 (l/min) at 0.2 MPa 10.567 (gal/min) at 0.2 MPa
1 x Coupling 1/2":BSPP 1/2" FEMALE - ISO 1179-1
Flow Rate: 70 (l/min) at 0.2 MPa 18.492 (gal/min) at 0.2 MPa
Temperature: -25 °C to 100 °C -13 °F to 212 °F
Seals: NBR & PUR
Weight: 3779 g 8.33 lb

For more information contact us: [email protected]
5 5
10 & 12,5 3/8" & 1/2" 2P506-0-5-S4 FC
Specs
4 x Couplings 3/8":M22x1,5 MALE 15L - ISO 8434-1-L
Flow Rate: 40 (l/min) at 0.2 MPa 10.567 (gal/min) at 0.2 MPa
1 x Coupling 1/2":M22x1,5 MALE 15L - ISO 8434-1-L
Flow Rate: 70 (l/min) at 0.2 MPa 18.492 (gal/min) at 0.2 MPa
Temperature: -25 °C to 100 °C -13 °F to 212 °F
Seals: NBR & PUR
Weight: 3609 g 7.96 lb

For more information contact us: [email protected]
5 5
10 & 12,5 3/8" & 1/2" 2P506-1-4-12GFC
Specs
4 x Couplings 3/8":BSPP 1/2" FEMALE - ISO 1179-1
Flow Rate: 40 (l/min) at 0.2 MPa 10.567 (gal/min) at 0.2 MPa
1 Electrical Contact :3 Pins
Temperature: -25 °C to 100 °C -13 °F to 212 °F
Seals: NBR & PUR
Weight: 3537 g 7.8 lb

For more information contact us: [email protected]
5 4 1
10 & 12,5 3/8" & 1/2" 2P506-1-4-2/2FC
Specs
4 x Couplings 3/8":M22x1,5 MALE 15L - ISO 8434-1-L
Flow Rate: 40 (l/min) at 0.2 MPa 10.567 (gal/min) at 0.2 MPa
1 Electrical Contact :3 Pins
Temperature: -25 °C to 100 °C -13 °F to 212 °F
Seals: NBR & PUR
Weight: 3484 g 7.68 lb

For more information contact us: [email protected]
5 4 1
10 & 12,5 3/8" & 1/2" 2P506-1-4-38GFC
Specs
4 x Couplings 3/8":BSPP 3/8" FEMALE - ISO 1179-1
Flow Rate: 40 (l/min) at 0.2 MPa 10.567 (gal/min) at 0.2 MPa
1 Electrical Contact :3 Pins
Temperature: -25 °C to 100 °C -13 °F to 212 °F
Seals: NBR & PUR
Weight: 3545 g 7.82 lb

For more information contact us: [email protected]
5 4 1
10 & 12,5 3/8" & 1/2" 2P506-A-4-12SFC
Specs
4 x Couplings 3/8":3/4" - 16 UNF FEMALE ORB - ISO 11926-1
Flow Rate: 40 (l/min) at 0.2 MPa 10.567 (gal/min) at 0.2 MPa
1 Electrical Contact :7 Pins
Seals: NBR & PUR
Weight: 3568 g 7.87 lb
5 4 1
10 & 12,5 3/8" & 1/2" 2P506-A-4-2/2FC
Specs
4 x Couplings 3/8":M22x1,5 MALE 15L - ISO 8434-1-L
Flow Rate: 40 (l/min) at 0.2 MPa 10.567 (gal/min) at 0.2 MPa
1 Electrical Contact :7 Pins
Temperature: -25 °C to 100 °C -13 °F to 212 °F
Seals: NBR & PUR
Weight: 3511.4 g 7.74 lb

For more information contact us: [email protected]
5 4 1
10 & 12,5 3/8" & 1/2" 2P506-A-4-38GFC
Specs
4 x Couplings 3/8":BSPP 3/8" FEMALE - ISO 1179-1
Flow Rate: 40 (l/min) at 0.2 MPa 10.567 (gal/min) at 0.2 MPa
1 Electrical Contact :7 Pins
Temperature: -25 °C to 100 °C -13 °F to 212 °F
Seals: NBR & PUR
Weight: 3599 g 7.93 lb

For more information contact us: [email protected]
5 4 1

Male

Filter items
Units
PartNumber Specs Housings Couplings Electrical Contacts
10 & 12,5 3/8" & 1/2" 2P506-0-4-2/2MC
Specs
4 x Couplings 3/8":M22x1,5 MALE 15L - ISO 8434-1-L
Flow Rate: 40 (l/min) at 0.2 MPa 10.567 (gal/min) at 0.2 MPa
Temperature: -25 °C to 100 °C -13 °F to 212 °F
Seals: NBR & PUR
Weight: 1446.5 g 3.19 lb

For more information contact us: [email protected]
5 4
10 & 12,5 3/8" & 1/2" 2P506-0-5-12GMC
Specs
4 x Couplings 3/8":BSPP 3/8" FEMALE - ISO 1179-1
Flow Rate: 40 (l/min) at 0.2 MPa 10.567 (gal/min) at 0.2 MPa
1 x Coupling 1/2":BSPP 1/2" FEMALE - ISO 1179-1
Flow Rate: 70 (l/min) at 0.2 MPa 18.492 (gal/min) at 0.2 MPa
Seals: NBR & PUR
Weight: 1700 g 3.75 lb
5 5
10 & 12,5 3/8" & 1/2" 2P506-0-5-S0 MC
Specs
4 x Couplings 3/8":BSPP 3/8" FEMALE - ISO 1179-1
Flow Rate: 40 (l/min) at 0.2 MPa 10.567 (gal/min) at 0.2 MPa
1 x Coupling 1/2":BSPP 1/2" FEMALE - ISO 1179-1
Flow Rate: 70 (l/min) at 0.2 MPa 18.492 (gal/min) at 0.2 MPa
Temperature: -25 °C to 100 °C -13 °F to 212 °F
Seals: NBR & PUR
Weight: 733 g 1.62 lb

For more information contact us: [email protected]
5 5
10 & 12,5 3/8" & 1/2" 2P506-0-5-S4 MC
Specs
4 x Couplings 3/8":M22x1,5 MALE 15L - ISO 8434-1-L
Flow Rate: 40 (l/min) at 0.2 MPa 10.567 (gal/min) at 0.2 MPa
1 x Coupling 1/2":M22x1,5 MALE 15L - ISO 8434-1-L
Flow Rate: 70 (l/min) at 0.2 MPa 18.492 (gal/min) at 0.2 MPa
Temperature: -25 °C to 100 °C -13 °F to 212 °F
Seals: NBR & PUR
Weight: 1644.8 g 3.63 lb

For more information contact us: [email protected]
5 5
10 & 12,5 3/8" & 1/2" 2P506-1-4-12GMC
Specs
4 x Couplings 3/8":BSPP 1/2" FEMALE - ISO 1179-1
Flow Rate: 40 (l/min) at 0.2 MPa 10.567 (gal/min) at 0.2 MPa
1 Electrical Contact :3 Pins
Temperature: -25 °C to 100 °C -13 °F to 212 °F
Seals: NBR & PUR
Weight: 1448 g 3.19 lb

For more information contact us: [email protected]
5 4 1
10 & 12,5 3/8" & 1/2" 2P506-1-4-2/2MC
Specs
4 x Couplings 3/8":M22x1,5 MALE 15L - ISO 8434-1-L
Flow Rate: 40 (l/min) at 0.2 MPa 10.567 (gal/min) at 0.2 MPa
1 Electrical Contact :3 Pins
Temperature: -25 °C to 100 °C -13 °F to 212 °F
Seals: NBR & PUR
Weight: 1421 g 3.13 lb

For more information contact us: [email protected]
5 4 1
10 & 12,5 3/8" & 1/2" 2P506-1-4-38GMC
Specs
4 x Couplings 3/8":BSPP 3/8" FEMALE - ISO 1179-1
Flow Rate: 40 (l/min) at 0.2 MPa 10.567 (gal/min) at 0.2 MPa
1 Electrical Contact :3 Pins
Temperature: -25 °C to 100 °C -13 °F to 212 °F
Seals: NBR & PUR
Weight: 1500 g 3.31 lb

For more information contact us: [email protected]
5 4 1
10 & 12,5 3/8" & 1/2" 2P506-A-4-2/2MC
Specs
4 x Couplings 3/8":M22x1,5 MALE 15L - ISO 8434-1-L
Flow Rate: 40 (l/min) at 0.2 MPa 10.567 (gal/min) at 0.2 MPa
1 Electrical Contact :7 Pins
Temperature: -25 °C to 100 °C -13 °F to 212 °F
Seals: NBR & PUR

For more information contact us: [email protected]
5 4 1
10 & 12,5 3/8" & 1/2" 2P506-A-4-38GMC
Specs
4 x Couplings 3/8":BSPP 3/8" FEMALE - ISO 1179-1
Flow Rate: 40 (l/min) at 0.2 MPa 10.567 (gal/min) at 0.2 MPa
1 Electrical Contact :7 Pins
Temperature: -25 °C to 100 °C -13 °F to 212 °F
Seals: NBR & PUR
Weight: 1503 g 3.31 lb

For more information contact us: [email protected]
5 4 1
10 & 12,5 3/8" & 1/2" 3P506-0-4-2/2MC
Specs
4 x Couplings 3/8":M22x1,5 MALE 15L - ISO 8434-1-L
Flow Rate: 40 (l/min) at 0.2 MPa 10.567 (gal/min) at 0.2 MPa
Seals: NBR & PUR
Weight: 1600 g 3.53 lb
5 4
10 & 12,5 3/8" & 1/2" 3P506-1-4-38GMC
Specs
4 x Couplings 3/8":BSPP 3/8" FEMALE - ISO 1179-1
Flow Rate: 40 (l/min) at 0.2 MPa 10.567 (gal/min) at 0.2 MPa
1 Electrical Contact :3 Pins
Seals: NBR & PUR
Weight: 1800 g 3.97 lb
5 4 1
10 & 12,5 3/8" & 1/2" 3P506-A-4-12SMC
Specs
4 x Couplings 3/8":3/4" - 16 UNF FEMALE ORB - ISO 11926-1
Flow Rate: 40 (l/min) at 0.2 MPa 10.567 (gal/min) at 0.2 MPa
1 Electrical Contact :7 Pins
Seals: NBR & PUR
Weight: 1947 g 4.29 lb
4 4 1
10 & 12,5 3/8" & 1/2" 3P506-A-4-38GMC
Specs
4 x Couplings 3/8":BSPP 3/8" FEMALE - ISO 1179-1
Flow Rate: 40 (l/min) at 0.2 MPa 10.567 (gal/min) at 0.2 MPa
1 Electrical Contact :7 Pins
Temperature: -25 °C to 100 °C -13 °F to 212 °F
Seals: NBR & PUR
Weight: 1804 g 3.98 lb

For more information contact us: [email protected]
2 4 1
Technical Specifications
Dash Size Size (mmInch) Working Pressure Flow Rate (l/mingal/min) Spillage (ml) Male Burst pressure Female Burst pressure Male + Female Burst pressure
06 10 3/8" 25 MPa 3625.943 psi 40 10.567 0.008 100 MPa 14503.774 psi 100 MPa 14503.774 psi 100 MPa 14503.774 psi
08 12.5 1/2" 25 MPa 3625.943 psi 70 18.492 0.01 100 MPa 14503.774 psi 100 MPa 14503.774 psi 100 MPa 14503.774 psi
Material:
Aluminium & Steel
Seals:
NBR & PUR
Working temperatures:
-25 °C to 100 °C -13 °F to 212 °F
Surface treatment:
MATE 500 (CrIII) & Paint
Specifications:
Series Interchange: MultiFaster
Valve Type: Flat
Connection: Lever
Disconnection: Lever
Connection Under Pressure: Allowed Residual
