Product series

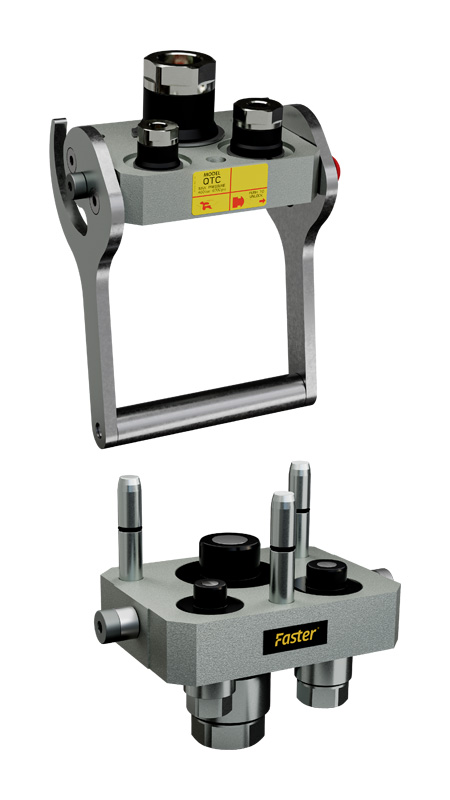

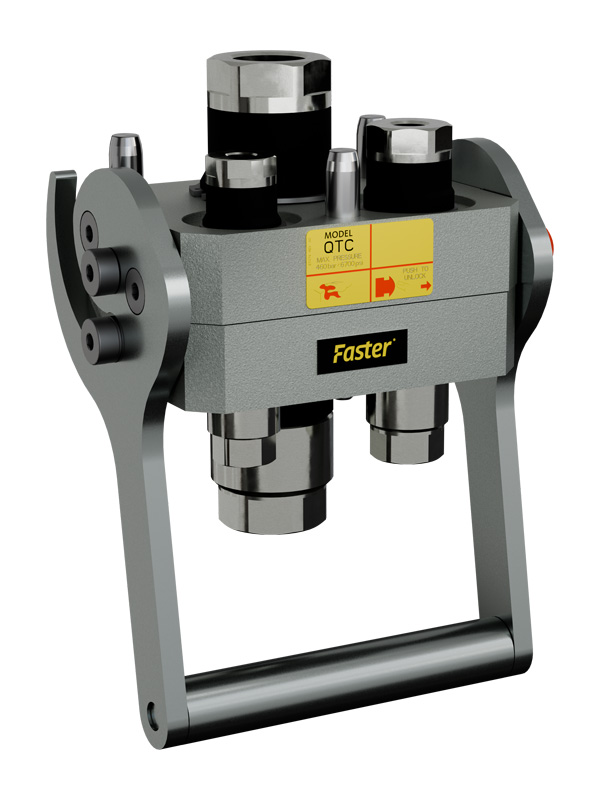

MultiQTC
Applications
Construction Equipment

MultiFaster 3 lines (size 06, 08, 20)

Configure your Multifaster

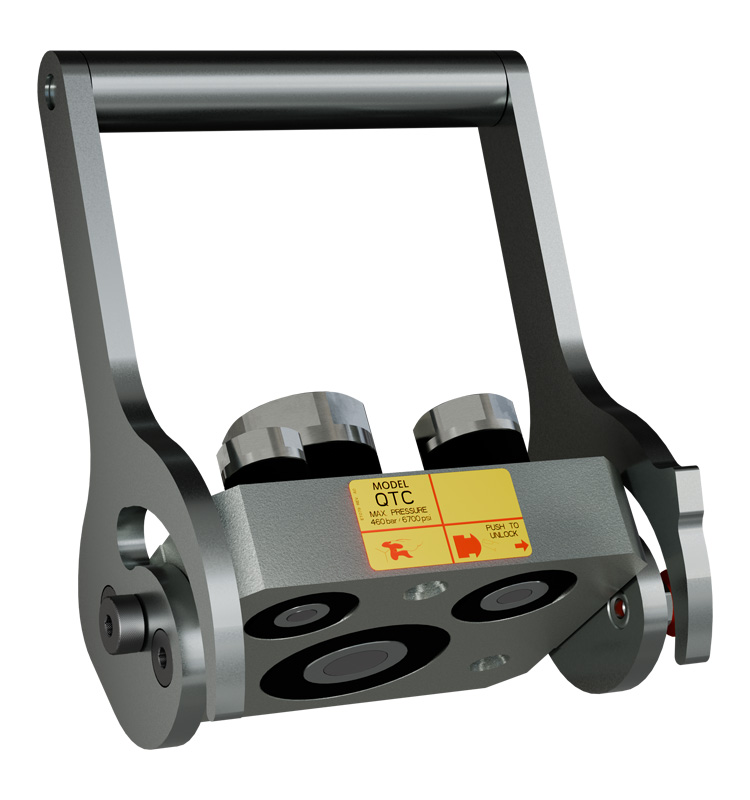

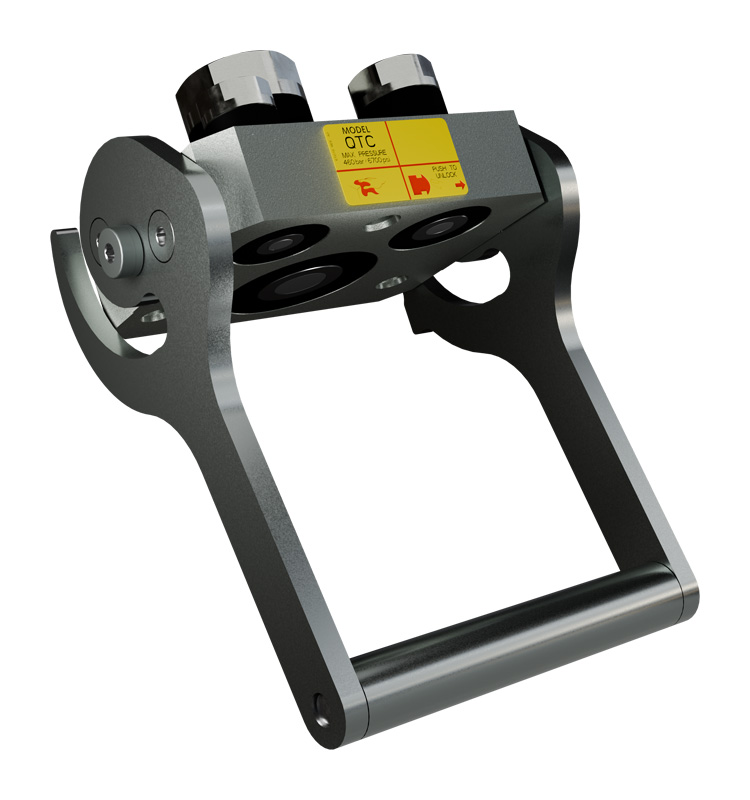

Female

Filter items
Units
PartNumber Details Housings
10 & 12,5 & 31,5 3/8" & 1/2" & 1-1/4" new MQ3A-06-08-20-A-FC
Specs
1 x Coupling 3/8":BSPP 3/8" FEMALE - ISO 1179-1
Flow Rate: 20 (l/min) at 0.2 MPa 5.283 (gal/min) at 0.2 MPa
1 x Coupling 1/2":BSPP 1/2" FEMALE - ISO 1179-1
Flow Rate: 70 (l/min) at 0.2 MPa 18.492 (gal/min) at 0.2 MPa
1 x Coupling 1-1/4":BSPP 1-1/4" FEMALE - ISO 1179-1
Flow Rate: 350 (l/min) at 0.2 MPa 92.46 (gal/min) at 0.2 MPa
Seals: HNBR & PUR
3
12,5 & 31,5 1/2" & 1-1/4" new MQ3A-00-08-20-A-FC
Specs
1 x Coupling 1/2":BSPP 1/2" FEMALE - ISO 1179-1
Flow Rate: 70 (l/min) at 0.2 MPa 18.492 (gal/min) at 0.2 MPa
1 x Coupling 1-1/4":BSPP 1-1/4" FEMALE - ISO 1179-1
Flow Rate: 350 (l/min) at 0.2 MPa 92.46 (gal/min) at 0.2 MPa
Seals: HNBR & PUR
3

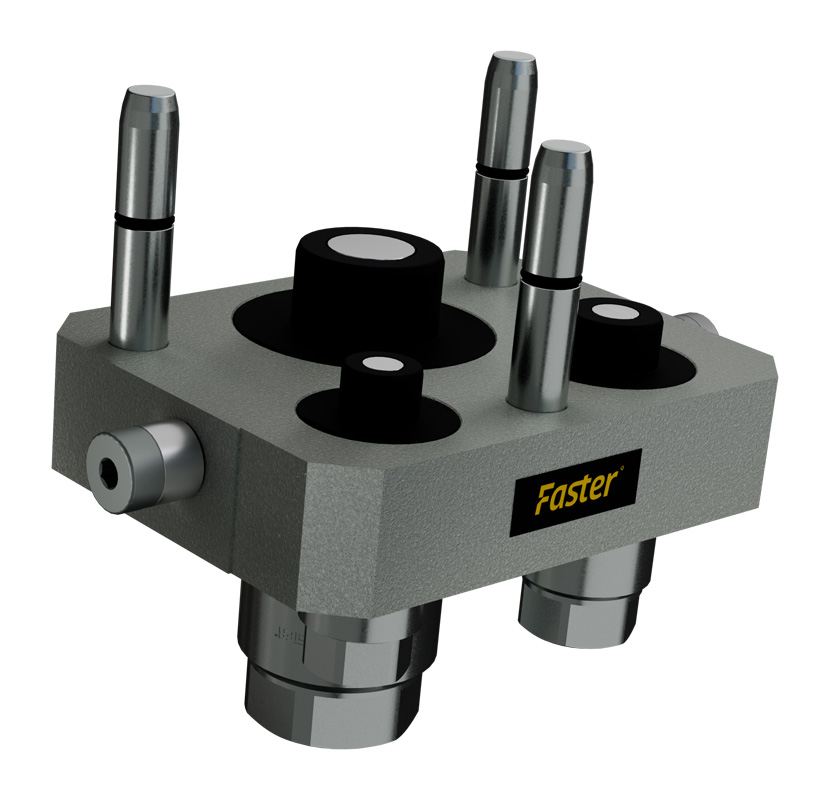

Male

Filter items
Units
PartNumber Specs Housings
10 & 12,5 & 31,5 3/8" & 1/2" & 1-1/4" new MQ3A-06-08-20-A-MC
Specs
1 x Coupling 3/8":BSPP 3/8" FEMALE - ISO 1179-1
Flow Rate: 20 (l/min) at 0.2 MPa 5.283 (gal/min) at 0.2 MPa
1 x Coupling 1/2":BSPP 1/2" FEMALE - ISO 1179-1
Flow Rate: 70 (l/min) at 0.2 MPa 18.492 (gal/min) at 0.2 MPa
1 x Coupling 1-1/4":BSPP 1-1/4" FEMALE - ISO 1179-1
Flow Rate: 350 (l/min) at 0.2 MPa 92.46 (gal/min) at 0.2 MPa
Seals: HNBR & PUR
3
12,5 & 31,5 1/2" & 1-1/4" new MQ3A-00-08-20-A-MC
Specs
1 x Coupling 1/2":BSPP 1/2" FEMALE - ISO 1179-1
Flow Rate: 70 (l/min) at 0.2 MPa 18.492 (gal/min) at 0.2 MPa
1 x Coupling 1-1/4":BSPP 1-1/4" FEMALE - ISO 1179-1
Flow Rate: 350 (l/min) at 0.2 MPa 92.46 (gal/min) at 0.2 MPa
Seals: HNBR & PUR
3

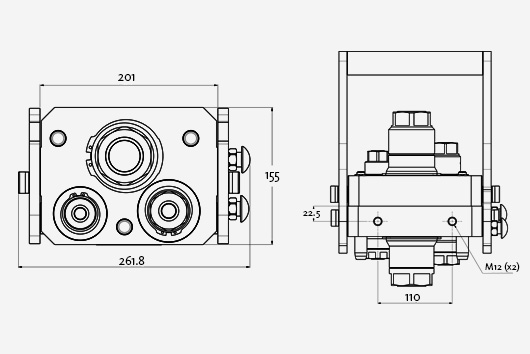

Technical Specifications
Dash Size Size (mmInch) Working Pressure Flow Rate (l/mingal/min) Spillage (ml) Male Burst pressure Female Burst pressure Male + Female Burst pressure
06 10 3/8" 46 MPa 6671.736 psi 20 5.283 0.01 140 MPa 20305.283 psi 140 MPa 20305.283 psi 140 MPa 20305.283 psi
08 12.5 1/2" 46 MPa 6671.736 psi 70 18.492 0.01 140 MPa 20305.283 psi 140 MPa 20305.283 psi 140 MPa 20305.283 psi
20 31.5 1-1/4" 46 MPa 6671.736 psi 350 92.46 0.03 140 MPa 20305.283 psi 140 MPa 20305.283 psi 140 MPa 20305.283 psi
Material:
Aluminium & Steel
Seals:
HNBR & PUR
Working temperatures:
-20 °C to 100 °C -4 °F to 212 °F
Surface treatment:
CrIII & Zn-Ni
Specifications:
Series Interchange: MultiFaster
Valve Type: Flat
Connection: Lever
Disconnection: Lever
Connection Under Pressure: Allowed Residual
