Product series
MC4
Applications

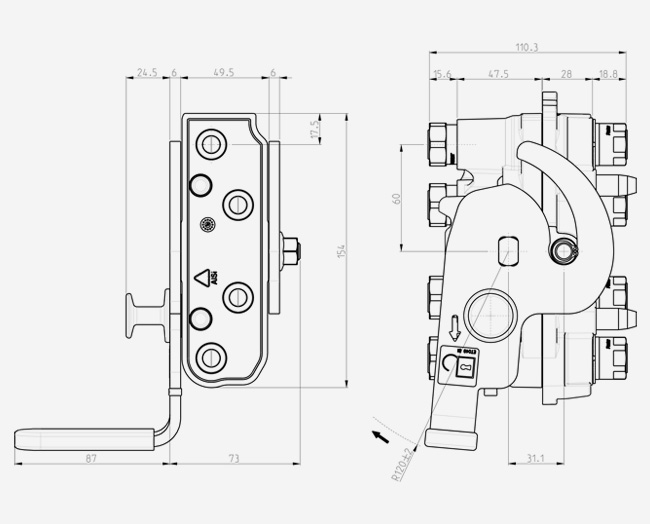

MultiFaster 4 lines, size 04. ISO 16028 individual couplings connectable.

It's possible to connect to the male plate either its counterpart or individual 1/4" female quick couplings compliant with ISO 16028.

Female

Filter items
Units
PartNumber Details
6,3 MC4-04-38S-A FC
Specs
4 x Couplings 1/4":9/16" - 18 UNF FEMALE ORB - ISO 11926-1
Flow Rate: 20 (l/min) at 0.2 MPa
Seals: NBR & PUR
Weight: 1800 g
4 4

Male

Filter items
Units
PartNumber Specs
6,3 2MC4-04-38S-A MC
Specs
4 x Couplings 1/4":9/16" - 18 UNF FEMALE ORB - ISO 11926-1
Flow Rate: 20 (l/min) at 0.2 MPa
Seals: NBR & PUR
4 4
Technical Specifications
Dash Size Size (mm) Working Pressure Flow Rate (l/min) Spillage (ml) Male Burst pressure Female Burst pressure Male + Female Burst pressure
04 6.3 20 MPa 20 0.008 80 MPa 80 MPa 80 MPa
Material:
Aluminium & Steel
Seals:
NBR & PUR
Working temperatures:
-25 °C to 90 °C
Surface treatment:
MATE 500 (CrIII) & MATE 1000 (ZnNi)
Specifications:
Series Interchange: MultiFaster
Valve Type: Flat
Connection: Lever
Disconnection: Lever
Connection Under Pressure: Allowed Residual

Exceptions:

It’s possible to connect the two plates with residual pressure up to max. 100 bar on female plate side and within no more than two lines.
