Product series

FSH

Applications

Flat face couplings, ISO 16028 interchange, 35 MPa series, sectors latching

Flat face couplings with real maximum working pressure of 35 MPa and Zinc-Nickel plating. The sector latching system enables to effectively tackle the Brinelling effect, provoked by high frequency impulse pressures. ISO 16028 interchange.

Downloads

Data sheet

Female

Filter items

Units

PartNumber

Thread

FSH06 38GAS F

BSPP 3/8" FEMALE

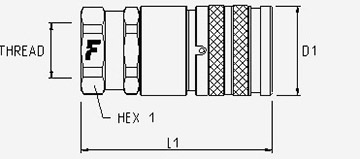

Specs
Hex1:	27 mm 1.06"
D1:	30 mm 1.18"
L1:	75 mm 2.95"
Flow Rate:	50 (l/min) at 0.2 MPa 13.209 (gal/min) at 0.2 MPa
Temperature:	-25 °C to 100 °C -13 °F to 212 °F
Seals:	NBR & PUR
Weight:	267.9 g 0.59 lb

FSH06-2/1815 F

M18x1,5 MALE 12L

Specs
Hex1:	27 mm 1.06"
D1:	30 mm 1.18"
L1:	81 mm 3.19"
Flow Rate:	50 (l/min) at 0.2 MPa 13.209 (gal/min) at 0.2 MPa
Temperature:	-25 °C to 100 °C -13 °F to 212 °F
Seals:	NBR & PUR
Weight:	267 g 0.59 lb

FSH06-7/1815 F

M18x1.5 MALE BULKHEAD SHORT 12L

Specs
Hex1:	27 mm 1.06"
Hex2:	24 mm 0.94"
D1:	30 mm 1.18"
L1:	96 mm 3.78"
Flow Rate:	50 (l/min) at 0.2 MPa 13.209 (gal/min) at 0.2 MPa
Seals:	NBR & PUR
Weight:	298 g 0.66 lb

12,5

FSH08 12GAS F

BSPP 1/2" FEMALE

Specs
Hex1:	34 mm 1.34"
D1:	38 mm 1.5"
L1:	81.3 mm 3.2"
Flow Rate:	110 (l/min) at 0.2 MPa 29.059 (gal/min) at 0.2 MPa
Temperature:	-25 °C to 100 °C -13 °F to 212 °F
Seals:	NBR & PUR
Weight:	455.1 g 1 lb

12,5

FSH08 34SAE F

1-1/16"-12 UN FEMALE ORB

Specs
Hex1:	34 mm 1.34"
D1:	38 mm 1.5"
L1:	86.8 mm 3.42"
Flow Rate:	110 (l/min) at 0.2 MPa 29.059 (gal/min) at 0.2 MPa
Temperature:	-25 °C to 100 °C -13 °F to 212 °F
Seals:	NBR & PUR
Weight:	446.9 g 0.99 lb

12,5

FSH08-12/58SFD

1"-14 UNS MALE BULKHEAD ORFS

Specs
Hex1:	34 mm 1.34"
D1:	38 mm 1.5"
L1:	112 mm 4.41"
Flow Rate:	110 (l/min) at 0.2 MPa 29.059 (gal/min) at 0.2 MPa
Temperature:	-25 °C to 100 °C -13 °F to 212 °F
Seals:	NBR & PUR
Weight:	520 g 1.15 lb

FSH12 34GAS F

BSPP 3/4" FEMALE

Specs
Hex1:	42 mm 1.65"
D1:	48 mm 1.89"
L1:	100 mm 3.94"
Flow Rate:	160 (l/min) at 0.2 MPa 42.268 (gal/min) at 0.2 MPa
Temperature:	-25 °C to 100 °C -13 °F to 212 °F
Seals:	NBR & PUR
Weight:	907.1 g 2 lb

FSH12 34SAE F

1 - 1/16" - 12 UN FEMALE ORB

Specs
Hex1:	42 mm 1.65"
Hex3:	42 mm 1.65"
D1:	48 mm 1.89"
L1:	104 mm 4.09"
Flow Rate:	160 (l/min) at 0.2 MPa 42.268 (gal/min) at 0.2 MPa
Seals:	NBR & PUR

FSH16 1GAS F

BSPP 1" FEMALE

Specs
Hex1:	50 mm 1.97"
D1:	55 mm 2.17"
L1:	100.5 mm 3.96"
Flow Rate:	230 (l/min) at 0.2 MPa 60.76 (gal/min) at 0.2 MPa
Temperature:	-25 °C to 100 °C -13 °F to 212 °F
Seals:	NBR & PUR
Weight:	1199 g 2.64 lb

FSH16 1SAE F

1-5/16"-12 UN FEMALE ORB

Specs
Hex1:	50 mm 1.97"
D1:	55 mm 2.17"
L1:	100.5 mm 3.96"
Flow Rate:	230 (l/min) at 0.2 MPa 60.76 (gal/min) at 0.2 MPa
Temperature:	-25 °C to 100 °C -13 °F to 212 °F
Seals:	NBR & PUR

Dust Protections

Accessories & Spares

Dust Protection - Acetal Resin - Female

Size	Part Number	Color
3/8" 10 mm	TAF 38	Blue
3/8" 10 mm	TAF 38 UV	Blue
3/8" 10 mm	TAF 38 G	Yellow
3/8" 10 mm	TAF 38 M UV	Brown
3/8" 10 mm	TAF 38 N	Black
3/8" 10 mm	TAF 38 R	Red
3/8" 10 mm	TAF 38 R UV	Red
3/8" 10 mm	TAF 38 V	Green
3/8" 10 mm	TAF 38 V UV	Green

Dust Protection - Acetal Resin - Male

Size	Part Number	Color

Dust Protection - PVC - Female

Size	Part Number	Color
1" 25 mm	TM 2FI1	Orange
1" 25 mm	TM 2FI1 N	Black
1/2" 12,5 mm	TM 2FI12	Orange
1/2" 12,5 mm	TM 2FI12 N	Black
1/2" 12,5 mm	TM 2FI12 R	Red
3/4" 20 mm	TM 2FI34	Orange
3/4" 20 mm	TM 2FI34 N	Black
3/4" 20 mm	TM 2FI34 R	Red
3/8" 10 mm	TMF 38	Orange
3/8" 10 mm	TMF 38 B	Blue
3/8" 10 mm	TMF 38 G	Yellow
3/8" 10 mm	TMF 38 N	Black
3/8" 10 mm	TMF 38 R	Red
3/8" 10 mm	TMF 38 V	Green

Dust Protection - PVC - Male

Size	Part Number	Color

Dust Protection - Aluminium - Female

Size	Part Number	Color
1" 25 mm	TM 2FI1 S	Metal
1/2" 12,5 mm	TM 2FI12 S	Metal
3/4" 20 mm	TM 2FI34 S	Metal
3/8" 10 mm	TM 2FN38 S	Metal

Dust Protection - Aluminium - Male

Size	Part Number	Color

Compact Excavators

Forestry Harvesters

Technical Specifications

Burst pressure (MPa)

Dash Size	Size (mmInch)	Working Pressure	Flow Rate (l/mingal/min)	Spillage (ml)	Force to connect (N)	Male Burst pressure	Female Burst pressure	Male + Female Burst pressure
06	10 3/8"	35 MPa 5076.321 psi	50 13.209	0.008	150	140 MPa 140 20305.283 psi 20305.283	140 MPa 140 20305.283 psi 20305.283	170 MPa 170 24656.415 psi 24656.415
08	12.5 1/2"	35 MPa 5076.321 psi	110 29.059	0.01	210	140 MPa 140 20305.283 psi 20305.283	140 MPa 140 20305.283 psi 20305.283	170 MPa 170 24656.415 psi 24656.415
12	20 3/4"	35 MPa 5076.321 psi	160 42.268	0.02	215	140 MPa 140 20305.283 psi 20305.283	140 MPa 140 20305.283 psi 20305.283	140 MPa 140 20305.283 psi 20305.283
16	25 1"	35 MPa 5076.321 psi	230 60.76	0.03	280	140 MPa 140 20305.283 psi 20305.283	140 MPa 140 20305.283 psi 20305.283	170 MPa 170 24656.415 psi 24656.415

Material:
Steel

Seals:
NBR & PUR

Working temperatures:
-25 °C to 100 °C

Surface treatment:
MATE 1000 (ZnNi)

Specifications:
Series Interchange: ISO 16028
Valve Type: Flat
Connection: Push to Connect
Disconnection: Sleeve Retraction
Connection Under Pressure: Not Allowed

Pressure Drop

Data shown in the diagram are indicative and not binding.
(§) 1 MPa = 10 bar
Dash size are specified.
