Product series
FPI - 5FPI
Applications
Agriculture

Flat face push-pull couplings for agricultural applications (Power Beyond circuit). Compliance to ISO 17567 standard. Connectable to flat face couplings complying with ISO 16028 standard.

Data sheet
Female

Female

Filter items
Units

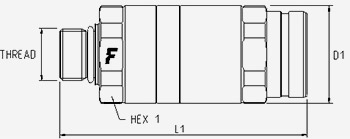

PartNumber Thread Details HEX1 HEX2 HEX3 D1 D2 L1
6,3 1/4" FPI041/1415 F M14x1,5 MALE
Specs
Flow Rate: 25 (l/min) at 0.2 MPa 6.604 (gal/min) at 0.2 MPa
Temperature: -25 °C to 100 °C -13 °F to 212 °F
Seals: NBR & PUR
Weight: 334 g 0.74 lb
30 1.18 32 1.26 3.53 89.7
6,3 1/4" FPI04 14GAS F BSPP 1/4" FEMALE
Specs
Flow Rate: 25 (l/min) at 0.2 MPa 6.604 (gal/min) at 0.2 MPa
Seals: NBR & PUR
Weight: 350 g 0.77 lb
30 1.18 32 1.26 3.54 90
6,3 1/4" FPI045/1415 F M14x1.5 MALE BULKHEAD 8L
Specs
Flow Rate: 25 (l/min) at 0.2 MPa 6.604 (gal/min) at 0.2 MPa
Seals: NBR & PUR
Weight: 350 g 0.77 lb
30 1.18 19 0.75 32 1.26 21.2 0.83 4.4 111.8
10 3/8" FPI06 12GAS F BSPP 1/2" FEMALE
Specs
Flow Rate: 47 (l/min) at 0.2 MPa 12.416 (gal/min) at 0.2 MPa
Seals: NBR & PUR
Weight: 480 g 1.06 lb
34 1.34 36 1.42 4 101.7
12,5 1/2" 5FPI081/272F A M27x2 MALE
Specs
Flow Rate: 92 (l/min) at 0.2 MPa 24.304 (gal/min) at 0.2 MPa
Seals: NBR & PUR
Weight: 975 g 2.15 lb
38 1.5 46 1.81 5.27 133.9
12,5 1/2" FPI081/2215 F M22x1,5 MALE
Specs
Flow Rate: 92 (l/min) at 0.2 MPa 24.304 (gal/min) at 0.2 MPa
Seals: NBR & PUR
Weight: 728 g 1.6 lb
41 1.61 38 1.5 43 1.69 4.33 110
16 5/8" 5FPI108/3620 FD M36X2 MALE BULKHEAD SHORT 25S
Specs
Flow Rate: 115 (l/min) at 0.2 MPa 30.38 (gal/min) at 0.2 MPa
Seals: NBR & PUR
Weight: 2000 g 4.41 lb
* No Locknut
38 1.5 58 2.28 7.44 189
16 5/8" 5FPI10 34GAS F 3/4 BSP FEMALE ORB
Specs
Flow Rate: 115 (l/min) at 0.2 MPa 30.38 (gal/min) at 0.2 MPa
Seals: NBR & PUR
Weight: 1880 g 4.14 lb
38 1.5 58 2.28 6.5 165
16 5/8" FPI101/2720 F M27x2 MALE
Specs
Flow Rate: 115 (l/min) at 0.2 MPa 30.38 (gal/min) at 0.2 MPa
Seals: NBR & PUR
Weight: 1300 g 2.87 lb
48 1.89 48 1.89 51 2.01 5.12 130
20 3/4" 5FPI121/272F A M27x2 MALE
Specs
Flow Rate: 152 (l/min) at 0.2 MPa 40.154 (gal/min) at 0.2 MPa
Temperature: -25 °C to 100 °C -13 °F to 212 °F
Seals: NBR & PUR
38 1.5 58 2.28 6.44 163.6
20 3/4" FPI121/272 F M27x2 MALE
Specs
Flow Rate: 125 (l/min) at 0.2 MPa 33.022 (gal/min) at 0.2 MPa
Temperature: -25 °C to 100 °C -13 °F to 212 °F
Seals: NBR & PUR
Weight: 1191 g 2.63 lb
48 1.89 51 2.01 5.12 130.1
25 1" FPI16 34GAS F BSPP 3/4" FEMALE
Specs
Flow Rate: 210 (l/min) at 0.2 MPa 55.476 (gal/min) at 0.2 MPa
Seals: NBR & PUR
Weight: 900 g 1.98 lb
60 2.36 64 2.52 5.51 140
  • Dust Protections

Accessories & Spares

PVC caps female Dust Protection - PVC - Female
Size Part Number Color
1/2"
12,5 mm
 TM 5FPI08 R
Red
1/2"
12,5 mm
 TM 5FPI08R JD2
Red
5/8"
16 mm
 TM 5FPI10 N
Black
3/4"
20 mm
 TM 5FPI12 R
Red
1/4"
6,3 mm
 TM FPI04
Orange
3/8"
10 mm
 TM FPI06
Orange
3/4"
20 mm
 TM FPI12 N JD
Black
3/4"
20 mm
 TM FPI12N JD2
Black
1"
25 mm
 TM FPI16 N
Black
Technical Specifications
Dash Size Size (mmInch) Working Pressure Flow Rate (l/mingal/min) Spillage (ml) Force to connect (N) Male Burst pressure Female Burst pressure Male + Female Burst pressure
04 6.3 1/4" 25 MPa 3625.943 psi 25 6.604 0.006 112 100 MPa 14503.774 psi 100 MPa 14503.774 psi 100 MPa 14503.774 psi
06 10 3/8" 25 MPa 3625.943 psi 47 12.416 0.01 190 100 MPa 14503.774 psi 100 MPa 14503.774 psi 100 MPa 14503.774 psi
08 12.5 1/2" 25 MPa 3625.943 psi 92 24.304 0.01 300 100 MPa 14503.774 psi 100 MPa 14503.774 psi 100 MPa 14503.774 psi
10 16 5/8" 25 MPa 3625.943 psi 115 30.38 0.1 320 100 MPa 14503.774 psi 100 MPa 14503.774 psi 100 MPa 14503.774 psi
12 20 3/4" 25 MPa 3625.943 psi 152 40.154 0.03 345 100 MPa 14503.774 psi 100 MPa 14503.774 psi 100 MPa 14503.774 psi
16 25 1" 25 MPa 3625.943 psi 210 55.476 0.03 410 100 MPa 14503.774 psi 100 MPa 14503.774 psi 100 MPa 14503.774 psi
Material:
Steel
Seals:
NBR & PUR
Working temperatures:
-25 °C to 100 °C -13 °F to 212 °F
Surface treatment:
MATE 500 (CrIII)
Specifications:
Series Interchange: ISO 16028 ISO 17567
Valve Type: Flat
Connection: Push to Connect
Disconnection: Pull to Disconnect
Connection Under Pressure: Allowed Male Half up to W.P. and residual in Female Half
