Block with semi-integrated cartridges for Rear SCV
Applications

Custom-made casting solutions for agriculture with semi integrated cartridges

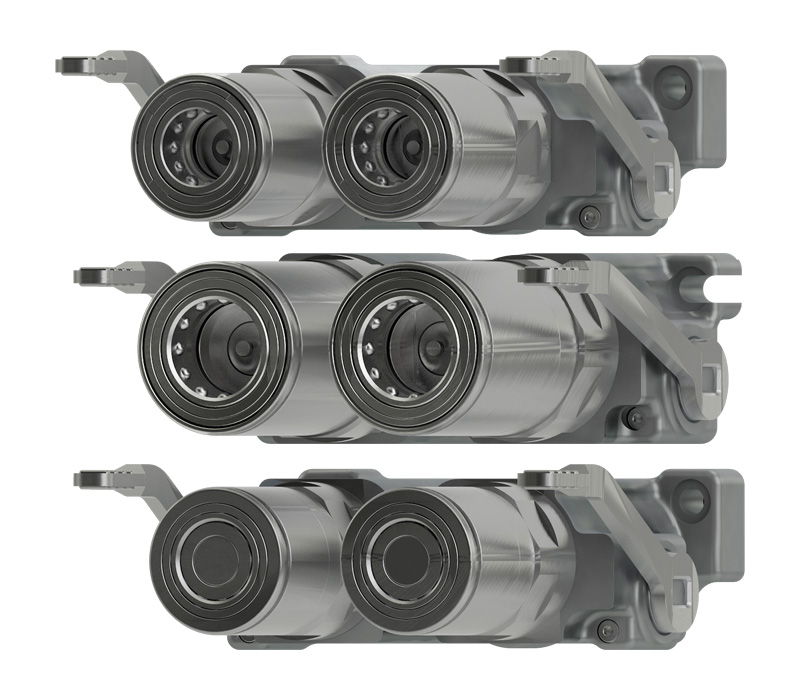

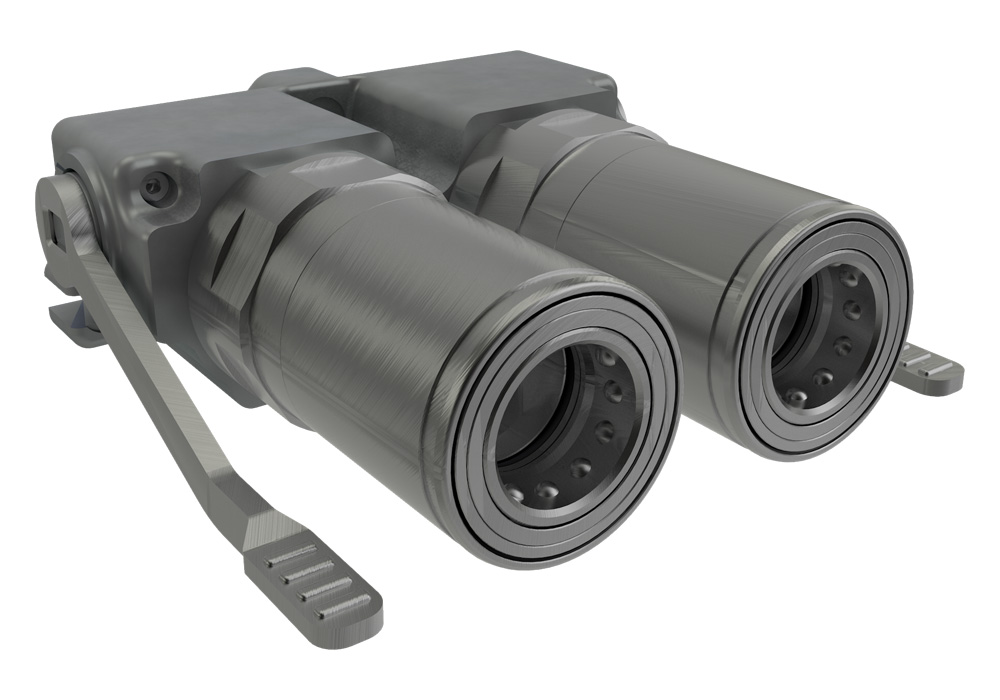

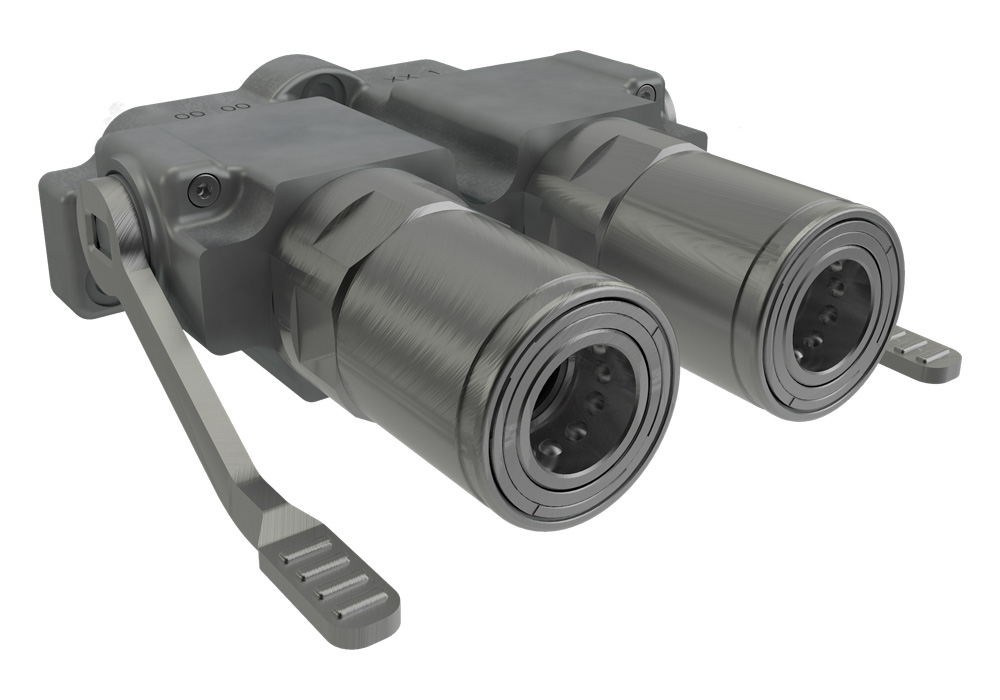

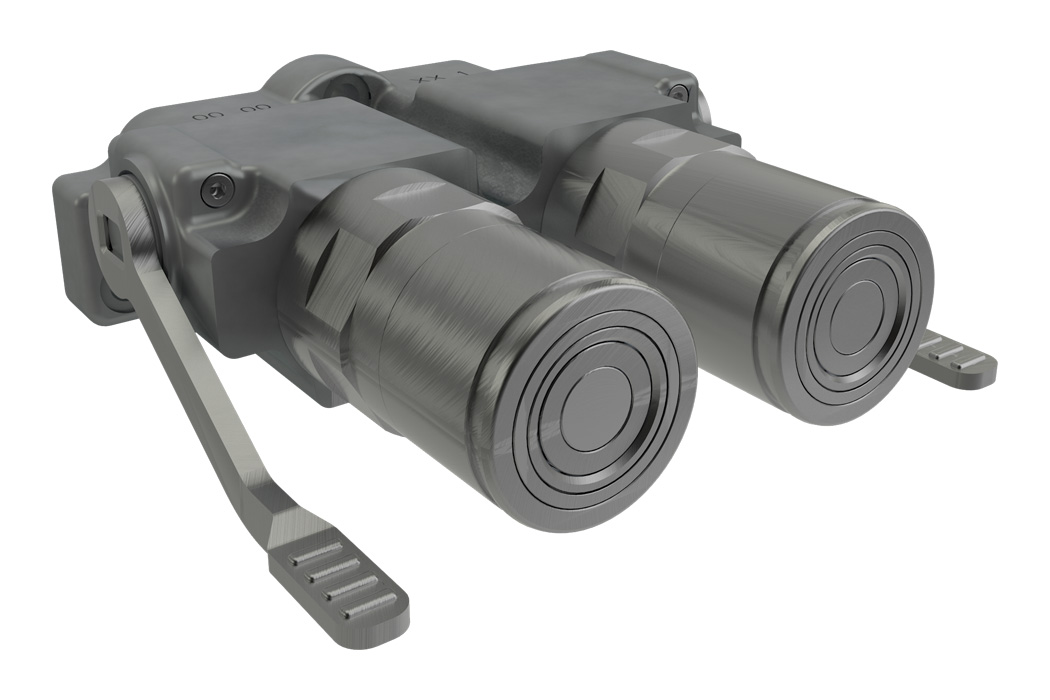

Cast iron blocks equipped with two semi-integrated cartridges. Internal axial flow makes this product particularly suitable for applications where higher flow rate is requested. ISO 7241 (1/2” and 3/4”) and flat face ISO 16028 (1/2” and 5/8”) cartridges can both be installed into the casting ports, to ensure flexibility. Great ease to connect and disconnect agricultural implements thanks to relief of internal residual pressure ensured by one dedicate lever for each line.
Downloads
Technical Specifications
Material:
Cast Iron & Steel
Seals:
PUR
Working temperatures:
-25 °C to 125 °C -13 °F to 257 °F
Surface treatment:
CrIII
Specifications:
Series Interchange: ISO 7241-A
Valve Type: Poppet
Connection: Push to Connect
Disconnection: Lever
Connection Under Pressure: Allowed Both Halves up to W.P.
