Product series
Auxiliary Lines Block (3 ports)
Applications

Castings with 3 couplings for construction equipment

The first cast iron block ever designed allowing a quick connection and disconnection of attachments for skid steer loaders and other construction equipment machines. Cartridges share all the benefits of the FFH series technology. The decompression feature allows to connect the circuit with residual pressure on both ends. Higher flow capability is guaranteed when using 3/4" cartridges instead of 1/2" (both the sizes fit into the same block).
Downloads

Male

Filter items
Units

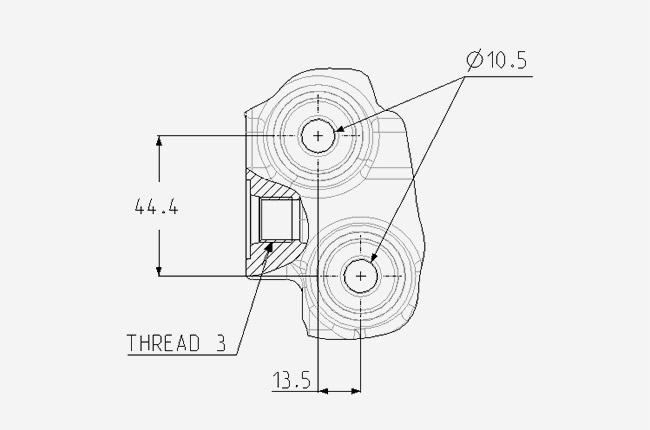

PartNumber Thread Specs L1 L2 Housings Couplings
12,5 1/2" 4BD4FH08-11/12S 13/16"-16 UN MALE ORFS
Specs
Flow Rate: 100 (l/min) at 0.2 MPa 26.417 (gal/min) at 0.2 MPa
Temperature: -25 °C to 100 °C -13 °F to 212 °F
Seals: NBR & PUR
Weight: 4346 g 9.58 lb
7.04 178.7 3 3
12,5 1/2" 4BD4FH08-11/1S 1-7/16"-12 UN MALE ORFS
Specs
Flow Rate: 100 (l/min) at 0.2 MPa 26.417 (gal/min) at 0.2 MPa
Temperature: -25 °C to 100 °C -13 °F to 212 °F
Seals: NBR & PUR
Weight: 4536.2 g 10 lb
7.21 183.2 3 3
12,5 1/2" 4BD4FH08-11/34S 1-3/16"-12 UN MALE ORFS
Specs
Flow Rate: 100 (l/min) at 0.2 MPa 26.417 (gal/min) at 0.2 MPa
Temperature: -25 °C to 100 °C -13 °F to 212 °F
Seals: NBR & PUR
Weight: 4415 g 9.73 lb
7.19 182.7 3 3
12,5 1/2" 4BD4FH08-13/34S 1-1/16"-12 UN MALE JIC
Specs
Flow Rate: 100 (l/min) at 0.2 MPa 26.417 (gal/min) at 0.2 MPa
Temperature: -25 °C to 100 °C -13 °F to 212 °F
Seals: NBR & PUR
Weight: 4380 g 9.66 lb
7.39 187.6 3 3
12,5 1/2" 4BD4FH08-13/58S 7/8"-14 UNF MALE JIC
Specs
Flow Rate: 100 (l/min) at 0.2 MPa 26.417 (gal/min) at 0.2 MPa
Temperature: -25 °C to 100 °C -13 °F to 212 °F
Seals: NBR & PUR
Weight: 4309 g 9.5 lb
7.28 185 3 3
12,5 1/2" 4BD4FH08-3/2415 M24x1,5 Male
Specs
Flow Rate: 100 (l/min) at 0.2 MPa 26.417 (gal/min) at 0.2 MPa
Seals: NBR & PUR
7.09 180 3 3
12,5 1/2" 4BD4FH08-58SAE 7/8"-14 UNF FEMALE ORB
Specs
Flow Rate: 100 (l/min) at 0.2 MPa 26.417 (gal/min) at 0.2 MPa
Temperature: -25 °C to 100 °C -13 °F to 212 °F
Seals: NBR & PUR
Weight: 4659 g 10.27 lb
7.38 187.5 3 3
12,5 1/2" 4BD4FH08-A 1-3/16"-12 UN MALE ORFS
Specs
Flow Rate: 100 (l/min) at 0.2 MPa 26.417 (gal/min) at 0.2 MPa
Temperature: -25 °C to 100 °C -13 °F to 212 °F
Seals: NBR & PUR
7.57 192.4 3 3
12,5 1/2" 4BD4FH08-C BSPP 3/4" FEMALE
Specs
Flow Rate: 100 (l/min) at 0.2 MPa 26.417 (gal/min) at 0.2 MPa
Temperature: -25 °C to 100 °C -13 °F to 212 °F
Seals: NBR & PUR
Weight: 4651 g 10.25 lb
7.38 187.5 3 3
12,5 1/2" 4BD4FH08-D 1-1/16"-12 UN 90° MALE
Specs
Flow Rate: 100 (l/min) at 0.2 MPa 26.417 (gal/min) at 0.2 MPa
Temperature: -25 °C to 100 °C -13 °F to 212 °F
Seals: NBR & PUR
Weight: 5148.6 g 11.35 lb
8.46 215 3 3
12,5 1/2" 4BD4FH08-E 7/8"-14 UNF MALE JIC
Specs
Flow Rate: 100 (l/min) at 0.2 MPa 26.417 (gal/min) at 0.2 MPa
Temperature: -25 °C to 100 °C -13 °F to 212 °F
Seals: NBR & PUR
Weight: 4459.6 g 9.83 lb
7.67 194.7 3 3
12,5 1/2" 4BD4FH08-F 1-3/16"-12 UN MALE ORFS
Specs
Flow Rate: 100 (l/min) at 0.2 MPa 26.417 (gal/min) at 0.2 MPa
Temperature: -25 °C to 100 °C -13 °F to 212 °F
Seals: NBR & PUR
Weight: 4519 g 9.96 lb
7.44 189 3 3
20 3/4" 4BD4FH12-11/1S 1-7/16"-12 UN MALE ORFS
Specs
Flow Rate: 145 (l/min) at 0.2 MPa 38.305 (gal/min) at 0.2 MPa
Temperature: -25 °C to 100 °C -13 °F to 212 °F
Seals: NBR & PUR
Weight: 5099.4 g 11.24 lb
7.99 203 3 3
20 3/4" 4BD4FH12-13/1S 1 - 5/16" - 12 UN MALE JIC
Specs
Flow Rate: 145 (l/min) at 0.2 MPa 38.305 (gal/min) at 0.2 MPa
Temperature: -25 °C to 100 °C -13 °F to 212 °F
Seals: NBR & PUR
Weight: 5995.6 g 13.22 lb
8.21 208.6 3 3
20 3/4" 4BD4FH12-13/34S 1-1/16"-12 UN MALE JIC
Specs
Flow Rate: 145 (l/min) at 0.2 MPa 38.305 (gal/min) at 0.2 MPa
Temperature: -25 °C to 100 °C -13 °F to 212 °F
Seals: NBR & PUR
Weight: 4905 g 10.81 lb
8.17 207.4 3 3
20 3/4" 4BD4FH12-B 1-7/16"-12 UN MALE ORFS
Specs
Flow Rate: 145 (l/min) at 0.2 MPa 38.305 (gal/min) at 0.2 MPa
Temperature: -25 °C to 100 °C -13 °F to 212 °F
Seals: NBR & PUR
Weight: 5158 g 11.37 lb
8.24 209.3 3 3
20 3/4" 4BD4FH12-C BSPP 3/4" FEMALE
Specs
Flow Rate: 145 (l/min) at 0.2 MPa 38.305 (gal/min) at 0.2 MPa
Temperature: -25 °C to 100 °C -13 °F to 212 °F
Seals: NBR & PUR
Weight: 5158 g 11.37 lb
8.16 207.3 7.64 194 3 3
  • Accessories for 4BD4FH
  • Seals

Accessories & Spares

Size (mm) Size (in) Thread Part Number Material
10 3/8" KIT 4BD-FFH06F Steel
10 3/8" KIT 4BD-FFH06M Steel
M KIT 4FH 13/1S Steel
M KIT 4FH 13/58S Steel
12,5 1/2" KIT 4FH08 F Steel
12,5 1/2" KIT 4FH08 M Steel
20 3/4" KIT 4FH12 F Steel
20 3/4" KIT 4FH12 M Steel
M KIT 4FH 2/1815 Steel
M KIT 4BD-3/2415 Steel
M KIT 4FH 13/38S Steel
Seal kits
Size Thread Part Number
10 mm 3/8" SK FFH06
12,5 mm 1/2" SK FFH08
Technical Specifications
Dash Size Size (mmInch) Working Pressure Flow Rate (l/mingal/min) Spillage (ml) Force to connect (N) Male Burst pressure Female Burst pressure Male + Female Burst pressure
08 12.5 1/2" 35 MPa 5076.321 psi 100 26.417 0.01 200 125 MPa 18129.717 psi 125 MPa 18129.717 psi 125 MPa 18129.717 psi
12 20 3/4" 35 MPa 5076.321 psi 145 38.305 0.02 230 125 MPa 18129.717 psi 125 MPa 18129.717 psi 125 MPa 18129.717 psi
Material:
Cast Iron & Steel
Seals:
NBR & PUR
Working temperatures:
-25 °C to 100 °C -13 °F to 212 °F
Surface treatment:
MATE 500 (CrIII) & MATE 1000 (ZnNi)
Specifications:
Series Interchange: ISO 16028
Valve Type: Flat
Connection: Push to Connect
Disconnection: Sleeve Retraction
Connection Under Pressure: Allowed Both Halves up to W.P.
