Auxiliary Lines Block (3+2 HF ports)
Applications
Construction Equipment

Castings with 5 couplings (standard and high flow lines) for construction equipment

5 Lines blocks make machines more versatile and suitable for a wide range of attachments thanks to 5 quick-couplings hosted in one single casting: two couplings 1/2”, two couplings 3/4” for high flow applications and one 3/8” to connect drain lines. The blocks can be hooked up to the machine hydraulic circuit by means of 2 input ports. Hydraulic decompression of the 1/2" lines is performed through the same patented system implemented on the 3-ports auxiliary lines blocks, whereas decompression of the 3/4" lines is achieved through a manual activation. Items shown into this section are off the shelf products not requiring any further design development or investment for production tools.
Downloads

Male & Female

Filter items
Units
PartNumber Thread Details L1 L2 Housings Couplings
12,5 & 20 3/4" & 1/2" 5BDHF0812-13/34S 1-1/16"-12 UN MALE JIC
Specs
2 x Couplings 3/4":1-1/16"-12 UN MALE JIC - ISO 8434-2
Flow Rate: 146 (l/min) at 0.2 MPa 38.569 (gal/min) at 0.2 MPa
2 x Couplings 1/2":1-1/16"-12 UN MALE JIC - ISO 8434-2
Flow Rate: 69 (l/min) at 0.2 MPa 18.228 (gal/min) at 0.2 MPa
Temperature: -25 °C to 100 °C -13 °F to 212 °F
Seals: NBR & PUR
Weight: 10000 g 22.05 lb

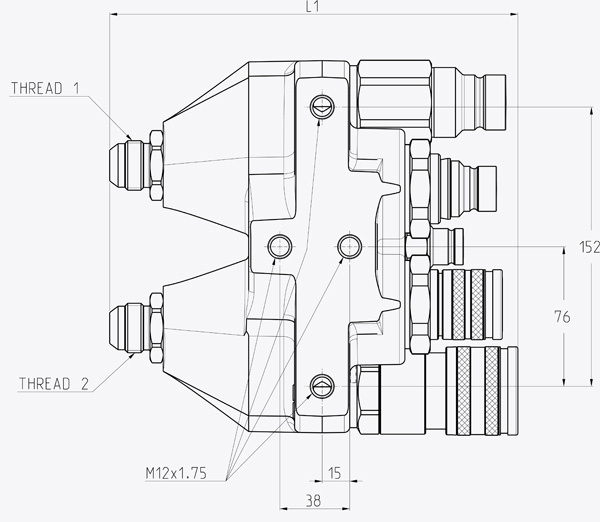

8.74 222.1 7.90.2,0.2 202,5 5 5
  • Accessories for 4BD4FH
  • Seals

Accessories & Spares

Size (mm) Size (in) Thread Part Number Material
KIT 4BD-13/34S Steel
10 3/8" KIT 4BD-FFH06M Steel
12,5 1/2" KIT 4FH08 F Steel
12,5 1/2" KIT 4FH08 M Steel
Seal kits
Size Thread Part Number
10 mm 3/8" SK FFH06
12,5 mm 1/2" SK FFH08
Technical Specifications
Dash Size Size (mmInch) Working Pressure Flow Rate (l/mingal/min) Spillage (ml) Force to connect (N) Male Burst pressure Female Burst pressure Male + Female Burst pressure
08 12.5 1/2" 35 MPa 5076.321 psi 69 18.228 0.01 200 100 MPa 14503.774 psi 100 MPa 14503.774 psi 100 MPa 14503.774 psi
12 20 3/4" 35 MPa 5076.321 psi 146 38.569 0.02 215 100 MPa 14503.774 psi 100 MPa 14503.774 psi 100 MPa 14503.774 psi
Material:
Cast Iron & Steel
Seals:
NBR & PUR
Working temperatures:
-25 °C to 100 °C -13 °F to 212 °F
Surface treatment:
MATE 500 (CrIII) & MATE 1000 (ZnNi)
Specifications:
Series Interchange: ISO 16028
Valve Type: Flat
Connection: Push to Connect
Disconnection: Sleeve Retraction
Connection Under Pressure: Allowed Both Halves up to W.P.
