Série do Produto

OGF

Aplicações

Flat Face Push-to-Connect couplings. Equipped with locking ball to prevent accidental disconnection. Available in 5 different sizes

OGF couplings are designed for a wide range of applications. The Flat Face design guarantees zero spillage and prevents external contamination. Push-to-Connect technology to make connection maneuver easier. Equipped with locking ball to prevent accidental disconnection. Available in 5 different sizes. Interchangable with Snap-tite 71 series. Thread: NPT (others options available upon request).

Downloads

Data sheet

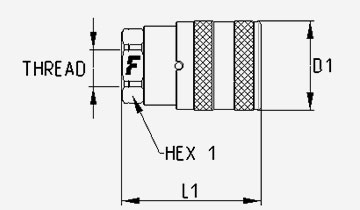

Fêmea
Macho

Fêmea

Filtrar

Unidade de medida

Código do Produto

Rosca

6,3

OGF04 14NPT F

NPTF 1/4" FEMALE

Specs
Hex1:	24 mm 0,94"
D1:	30 mm 1,18"
L1:	51,7 mm 2,04"
Vazão:	15 (l/min) at 0.2 MPa 3,963 (gal/min) at 0.2 MPa
Vedações:	NBR
* Working pressure ratings established for impulse pressure in connected configuration. For static pressure conditions, multiply the max. working pressure by 2.

OGF06 38NPT F

NPTF 3/8" FEMALE

Specs
Hex1:	30 mm 1,18"
D1:	40 mm 1,57"
L1:	61,7 mm 2,43"
Vazão:	33 (l/min) at 0.2 MPa 8,718 (gal/min) at 0.2 MPa
Vedações:	NBR
* Working pressure ratings established for impulse pressure in connected configuration. For static pressure conditions, multiply the max. working pressure by 2.

12,5

OGF08 12NPT F

NPTF 1/2" FEMALE

Specs
Hex1:	38 mm 1,5"
D1:	48 mm 1,89"
L1:	71 mm 2,8"
Vazão:	54 (l/min) at 0.2 MPa 14,265 (gal/min) at 0.2 MPa
Vedações:	NBR
* Working pressure ratings established for impulse pressure in connected configuration. For static pressure conditions, multiply the max. working pressure by 2.

OGF12 34NPT F

NPTF 3/4" FEMALE

Specs
Hex1:	46 mm 1,81"
D1:	58 mm 2,28"
L1:	79 mm 3,11"
Vazão:	130 (l/min) at 0.2 MPa 34,342 (gal/min) at 0.2 MPa
Vedações:	NBR
* Working pressure ratings established for impulse pressure in connected configuration. For static pressure conditions, multiply the max. working pressure by 2.

OGF16 1NPT F

NPTF 1" FEMALE

Specs
Hex1:	50 mm 1,97"
D1:	68 mm 2,68"
L1:	87,8 mm 3,46"
Vazão:	215 (l/min) at 0.2 MPa 56,797 (gal/min) at 0.2 MPa
Vedações:	NBR
* Working pressure ratings established for impulse pressure in connected configuration. For static pressure conditions, multiply the max. working pressure by 2.

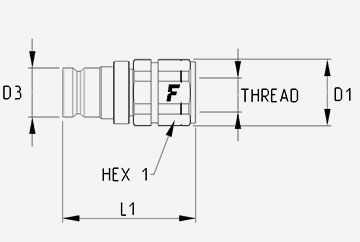

Macho

Filtrar

Unidade de medida

Código do Produto

Thread

6,3

OGF04 14NPT M

NPTF 1/4" FEMALE

Specs
Hex1:	22 mm 0,87"
D1:	24 mm 0,94"
D3:	18 mm 0,71"
L1:	54 mm 2,13"
Vazão:	15 (l/min) at 0.2 MPa 3,963 (gal/min) at 0.2 MPa
Vedações:	NBR
* Working pressure ratings established for impulse pressure in connected configuration. For static pressure conditions, multiply the max. working pressure by 2.

OGF06 38NPT M

NPTF 3/8" FEMALE

Specs
Hex1:	30 mm 1,18"
D1:	31,9 mm 1,26"
D3:	23,7 mm 0,93"
L1:	64 mm 2,52"
Vazão:	33 (l/min) at 0.2 MPa 8,718 (gal/min) at 0.2 MPa
Vedações:	NBR
* Working pressure ratings established for impulse pressure in connected configuration. For static pressure conditions, multiply the max. working pressure by 2.

12,5

OGF08 12NPT M

NPTF 1/2" FEMALE

Specs
Hex1:	36 mm 1,42"
D1:	39 mm 1,54"
D3:	30 mm 1,18"
L1:	74 mm 2,91"
Vazão:	54 (l/min) at 0.2 MPa 14,265 (gal/min) at 0.2 MPa
Vedações:	NBR
* Working pressure ratings established for impulse pressure in connected configuration. For static pressure conditions, multiply the max. working pressure by 2.

OGF12 34NPT M

NPTF 3/4" FEMALE

Specs
Hex1:	41 mm 1,61"
D1:	45 mm 1,77"
D3:	38,6 mm 1,52"
L1:	87 mm 3,43"
Vazão:	130 (l/min) at 0.2 MPa 34,342 (gal/min) at 0.2 MPa
Vedações:	NBR
* Working pressure ratings established for impulse pressure in connected configuration. For static pressure conditions, multiply the max. working pressure by 2.

OGF16 1NPT M

NPTF 1" FEMALE

Specs
Hex1:	50 mm 1,97"
D1:	55 mm 2,17"
D3:	44,95 mm 1,77"
L1:	91,5 mm 3,6"
Vazão:	215 (l/min) at 0.2 MPa 56,797 (gal/min) at 0.2 MPa
Vedações:	NBR
* Working pressure ratings established for impulse pressure in connected configuration. For static pressure conditions, multiply the max. working pressure by 2.

Oil Platforms Maintenance Equipment

Coiled Tubing Units

Snubbing Units For Wells Control

Especificações Técnicas

Pressão de Ruptura (MPa)

Bitola	Tamanhos (mmInch)	Pressão de trabalho	Vazão (l/mingal/min)	Vazamento (ml)	Macho Pressão de Ruptura	Fêmea Pressão de Ruptura	Macho + Fêmea Pressão de Ruptura
04	6,3 1/4"	70 MPa 10152,642 psi	15 3,963	0,01	170 MPa 170 24656,415 psi 24656,415	143 MPa 143 20740,397 psi 20740,397	170 MPa 170 24656,415 psi 24656,415
06	10 3/8"	70 MPa 10152,642 psi	33 8,718	0,02	150 MPa 150 21755,661 psi 21755,661	175 MPa 175 25381,604 psi 25381,604	160 MPa 160 23206,038 psi 23206,038
08	12,5 1/2"	70 MPa 10152,642 psi	54 14,265	0,03	140 MPa 140 20305,283 psi 20305,283	155 MPa 155 22480,849 psi 22480,849	210 MPa 210 30457,925 psi 30457,925
12	20 3/4"	70 MPa 10152,642 psi	130 34,342	0,06	160 MPa 160 23206,038 psi 23206,038	130 MPa 130 18854,906 psi 18854,906	170 MPa 170 24656,415 psi 24656,415
16	25 1"	70 MPa 10152,642 psi	215 56,797	0,1	130 MPa 130 18854,906 psi 18854,906	115 MPa 115 16679,34 psi 16679,34	145 MPa 145 21030,472 psi 21030,472

Material:
Aço

Vedações:
NBR

Temperaturas de trabalho:
-25 °C to 100 °C

Tratamento da superfície:
CrIII

Especificações:
Série de intercâmbio: MARKET
Tipo de Válvula: Plana
Conexão: Pressione para ligar
Desconexão: Retração da Luva
Conexão sob Pressão: Não consentida

Exceções:

Pressure ratings were established under static pressure conditions. For high impulse applications, please contact your Faster sales team.

Queda de Pressão

Os dados escritos no diagrama são indicativos e não vinculantes.
(§) 1 MPa = 10 bar
As bitolas estão indicadas no gráfico.
