Série do Produto
90° SWIVELS
Aplicações
Taimi’s patented ball-less swivels absorb torsional and kinking movements, protecting hoses from premature wear and extending their lifespan. 90° swivels efficiently alter fluid flow direction, perfectly accommodating diverse installation requirements.
Enhance your hydraulic system's reliability with Taimi’s swivels. They significantly increase hoses service life, eliminate leakages, and are chosen by leading global machinery manufacturers for higher productivity and lower operating costs.
Produtos
Especif
Aplicações
Macho
Macho
Filtrar
Unidade de medida
Métrico
Polegada
Tamanhos (mm)
10 mm
12,5 mm
19 mm
25 mm
31,5 mm
Tamanhos (in)
3/8"
1/2"
3/4"
1"
1-1/4"
Código do Produto
Thread 1 (T1)
Thread 2 (T2)
Especif
HEX1
HEX2
D1
D2
L1
Seal kit
10
3/8"
|3/8|
SZ90-F06M-F06F
NPTF 3/8" MALE
NPTF 3/8" FEMALE
Specs
Thread 1 (T1):
NPTF 3/8" MALE - ANSI B1.20.3
Thread 2 (T2):
NPTF 3/8" FEMALE - ANSI B1.20.3
Hex1:
15,9 mm
0,63"
Hex2:
28,6 mm
1,13"
D1:
34,3 mm
1,35"
D2:
30,7 mm
1,21"
L1:
77,2 mm
3,04"
Seal kit:
SZ-06-002SK-A
Vedações:
FKM
15,9
0,63
28,6
1,13
34,3
1,35
30,7
1,21
3,04
77,2
SZ-06-002SK-A
10
3/8"
|3/8|
SZ90-J06M-B06F
9/16"-18 UNF MALE JIC
9/16"-18 UNF FEMALE ORB
Specs
Thread 1 (T1):
9/16"-18 UNF MALE JIC - ISO 8434-2
Thread 2 (T2):
9/16"-18 UNF FEMALE ORB - ISO 11926-1
Hex1:
12,7 mm
0,5"
Hex2:
25,4 mm
1"
D1:
31 mm
1,22"
D2:
27,4 mm
1,08"
L1:
77 mm
3,03"
Seal kit:
SZ-06-001SK-A
Vedações:
FKM
12,7
0,5
25,4
1
31
1,22
27,4
1,08
3,03
77
SZ-06-001SK-A
12,5
1/2"
|1/2|
SZ90-F08M-B08F
1/2" NPTF MALE
3/4" - 16 UNF FEMALE ORB
Specs
Thread 1 (T1):
1/2" NPTF MALE - ANSI B1.20.3
Thread 2 (T2):
3/4" - 16 UNF FEMALE ORB - ISO 11926-1
Hex1:
19,1 mm
0,75"
Hex2:
30,2 mm
1,19"
D1:
38,9 mm
1,53"
D2:
33,8 mm
1,33"
L1:
96 mm
3,78"
Seal kit:
SZ-08-002SK-A
Vedações:
FKM
19,1
0,75
30,2
1,19
38,9
1,53
33,8
1,33
3,78
96
SZ-08-002SK-A
12,5
1/2"
|1/2|
SZ90-F08M-F08F
1/2" NPTF MALE
NPTF 1/2" FEMALE
Specs
Thread 1 (T1):
1/2" NPTF MALE - ANSI B1.20.3
Thread 2 (T2):
NPTF 1/2" FEMALE - ANSI B1.20.3
Hex1:
19,1 mm
0,75"
Hex2:
30,2 mm
1,19"
D1:
38,9 mm
1,53"
D2:
33,8 mm
1,33"
L1:
96 mm
3,78"
Seal kit:
SZ-08-002SK-A
Vedações:
FKM
19,1
0,75
30,2
1,19
38,9
1,53
33,8
1,33
3,78
96
SZ-08-002SK-A
12,5
1/2"
|1/2|
SZ90-J08M-B08F
3/4"-16 UNF MALE JIC
3/4"-16 UNF FEMALE ORB
Specs
Thread 1 (T1):
3/4"-16 UNF MALE JIC - ISO 8434-2
Thread 2 (T2):
3/4"-16 UNF FEMALE ORB - ISO 11926-1
Hex1:
17,5 mm
0,69"
Hex2:
31,8 mm
1,25"
D1:
37,3 mm
1,47"
L1:
97,5 mm
3,84"
Seal kit:
SZ-08-001SK-A
Vedações:
FKM
* Ex reference S30813FS00FS-10V000
17,5
0,69
31,8
1,25
37,3
1,47
3,84
97,5
SZ-08-001SK-A
12,5
1/2"
|1/2|
SZ90-P08M-B08F
60° 1/2 BSPP MALE 60° CONE MALE THREAD
3/4"-16 UNF FEMALE ORB
Specs
Thread 1 (T1):
60° 1/2 BSPP MALE 60° CONE MALE THREAD - ISO 8434-6
Thread 2 (T2):
3/4"-16 UNF FEMALE ORB - ISO 11926-1
Hex1:
19,1 mm
0,75"
Hex2:
30,2 mm
1,19"
D1:
38,9 mm
1,53"
L1:
95,7 mm
3,77"
Seal kit:
SZ-08-002SK-A
Vedações:
FKM
19,1
0,75
30,2
1,19
38,9
1,53
3,77
95,7
SZ-08-002SK-A
12,5
1/2"
|1/2|
SZ90-S08M-B08F
13/16"-16 UN MALE ORFS
3/4"-16 UNF FEMALE ORB
Specs
Thread 1 (T1):
13/16"-16 UN MALE ORFS - ISO 8434-3
Thread 2 (T2):
3/4"-16 UNF FEMALE ORB - ISO 11926-1
Hex1:
19,1 mm
0,75"
Hex2:
30,2 mm
1,19"
D1:
38,9 mm
1,53"
D2:
33,8 mm
1,33"
L1:
96,8 mm
3,81"
Seal kit:
SZ-08-002SK-A
Vedações:
FKM
19,1
0,75
30,2
1,19
38,9
1,53
33,8
1,33
3,81
96,8
SZ-08-002SK-A
19
3/4"
|3/4|
SZ90-F12M-B12F
3/4" NPTF MALE
1-1/16"-12 UN FEMALE ORB
Specs
Thread 1 (T1):
3/4" NPTF MALE - ANSI B1.20.3
Thread 2 (T2):
1-1/16"-12 UN FEMALE ORB - ISO 11926-1
Hex1:
23,8 mm
0,94"
Hex2:
41,3 mm
1,63"
D1:
50 mm
1,97"
D2:
44,2 mm
1,74"
L1:
126,7 mm
4,99"
Seal kit:
SZ-12-001SK-A
Vedações:
FKM
23,8
0,94
41,3
1,63
50
1,97
44,2
1,74
4,99
126,7
SZ-12-001SK-A
19
3/4"
|3/4|
SZ90-F12M-F12F
3/4" NPTF MALE
NPTF 3/4" FEMALE
Specs
Thread 1 (T1):
3/4" NPTF MALE - ANSI B1.20.3
Thread 2 (T2):
NPTF 3/4" FEMALE - ANSI B1.20.3
Hex1:
23,8 mm
0,94"
Hex2:
41,3 mm
1,63"
D1:
50 mm
1,97"
D2:
44,2 mm
1,74"
L1:
127 mm
5"
Seal kit:
SZ-12-002SK-A
Vedações:
FKM
23,8
0,94
41,3
1,63
50
1,97
44,2
1,74
5
127
SZ-12-002SK-A
19
3/4"
|3/4|
SZ90-J12M-B12F
1-1/16"-12 UN MALE JIC
1-1/16"-12 UN FEMALE ORB
Specs
Thread 1 (T1):
1-1/16"-12 UN MALE JIC - ISO 8434-2
Thread 2 (T2):
1-1/16"-12 UN FEMALE ORB - ISO 11926-1
Hex1:
23,8 mm
0,94"
Hex2:
41,3 mm
1,63"
D1:
50 mm
1,97"
D2:
44,2 mm
1,74"
L1:
128,8 mm
5,07"
Seal kit:
SZ-12-001SK-A
Vedações:
FKM
23,8
0,94
41,3
1,63
50
1,97
44,2
1,74
5,07
128,8
SZ-12-001SK-A
19
3/4"
|3/4|
SZ90-M30SM-B12F
M30x2 MALE 20S
1 - 1/16" - 12 UN FEMALE ORB
Specs
Thread 1 (T1):
M30x2 MALE 20S - ISO 8434-1-S
Thread 2 (T2):
1 - 1/16" - 12 UN FEMALE ORB - ISO 11926-1
D1:
53 mm
2,09"
L1:
126 mm
4,96"
Vedações:
FKM
53
2,09
4,96
126
19
3/4"
|3/4|
SZ90-P12M-B12F
1-1/16"-12 UN FEMALE ORB
G 3/4" 60° CONE MALE THREAD
Specs
Thread 1 (T1):
1-1/16"-12 UN FEMALE ORB - ISO 11926-1
Thread 2 (T2):
G 3/4" 60° CONE MALE THREAD - ISO 8434-6
Hex1:
23,8 mm
0,94"
Hex2:
41,3 mm
1,63"
D1:
50 mm
1,97"
L1:
125,2 mm
4,93"
Seal kit:
SZ-12-001SK-A
Vedações:
FKM
23,8
0,94
41,3
1,63
50
1,97
4,93
125,2
SZ-12-001SK-A
19
3/4"
|3/4|
SZ90-S12M-B12F
1-3/16"-12 UN MALE ORFS
1-1/16"-12 UN FEMALE ORB
Specs
Thread 1 (T1):
1-3/16"-12 UN MALE ORFS - ISO 8434-3
Thread 2 (T2):
1-1/16"-12 UN FEMALE ORB - ISO 11926-1
Hex1:
27 mm
1,06"
Hex2:
44,5 mm
1,75"
D1:
53,1 mm
2,09"
D2:
44,2 mm
1,74"
L1:
125 mm
4,92"
Seal kit:
SZ-12-002SK-A
Vedações:
FKM
27
1,06
44,5
1,75
53,1
2,09
44,2
1,74
4,92
125
SZ-12-002SK-A
25
1"
|1|
SZ90-F16M-B16F
1” NPTF MALE
1-5/16"-12 UN FEMALE ORB
Specs
Thread 1 (T1):
1” NPTF MALE - ANSI B1.20.3
Thread 2 (T2):
1-5/16"-12 UN FEMALE ORB - ISO 11926-1
Hex1:
30,2 mm
1,19"
Hex2:
47,6 mm
1,87"
D1:
56,4 mm
2,22"
D2:
48,5 mm
1,91"
L1:
140 mm
5,51"
Seal kit:
SZ-16-001SK-A
Vedações:
FKM
30,2
1,19
47,6
1,87
56,4
2,22
48,5
1,91
5,51
140
SZ-16-001SK-A
25
1"
|1|
SZ90-F16M-F16F
1” NPTF MALE
NPTF 1" FEMALE
Specs
Thread 1 (T1):
1” NPTF MALE - ANSI B1.20.3
Thread 2 (T2):
NPTF 1" FEMALE - ANSI B1.20.3
Hex1:
30,2 mm
1,19"
Hex2:
47,6 mm
1,87"
D1:
56,4 mm
2,22"
D2:
48,5 mm
1,91"
L1:
140 mm
5,51"
Seal kit:
SZ-16-002SK-A
Vedações:
FKM
30,2
1,19
47,6
1,87
56,4
2,22
48,5
1,91
5,51
140
SZ-16-002SK-A
25
1"
|1|
SZ90-J16M-B16F
1 - 5/16" - 12 UN MALE JIC
1-5/16"-12 UN FEMALE ORB
Specs
Thread 1 (T1):
1 - 5/16" - 12 UN MALE JIC - ISO 8434-2
Thread 2 (T2):
1-5/16"-12 UN FEMALE ORB - ISO 11926-1
Hex1:
30,2 mm
1,19"
Hex2:
47,6 mm
1,87"
D1:
56,4 mm
2,22"
D2:
48,5 mm
1,91"
L1:
147,8 mm
5,82"
Seal kit:
SZ-16-001SK-A
Vedações:
FKM
30,2
1,19
47,6
1,87
56,4
2,22
48,5
1,91
5,82
147,8
SZ-16-001SK-A
25
1"
|1|
SZ90-P16M-B16F
G 1" 60° CONE MALE THREAD
1-5/16"-12 UN FEMALE ORB
Specs
Thread 1 (T1):
G 1" 60° CONE MALE THREAD - ISO 8434-6
Thread 2 (T2):
1-5/16"-12 UN FEMALE ORB - ISO 11926-1
Hex1:
30,2 mm
1,19"
Hex2:
47,6 mm
1,87"
D1:
56,4 mm
2,22"
D2:
48,5 mm
1,91"
L1:
145,5 mm
5,73"
Seal kit:
SZ-16-001SK-A
Vedações:
FKM
30,2
1,19
47,6
1,87
56,4
2,22
48,5
1,91
5,73
145,5
SZ-16-001SK-A
25
1"
|1|
SZ90-S16M-B16F
1-7/16"-12 UN MALE ORFS
1-5/16"-12 UN FEMALE ORB
Specs
Thread 1 (T1):
1-7/16"-12 UN MALE ORFS - ISO 8434-3
Thread 2 (T2):
1-5/16"-12 UN FEMALE ORB - ISO 11926-1
Hex1:
30,2 mm
1,19"
Hex2:
50,8 mm
2"
D1:
59,4 mm
2,34"
D2:
48,5 mm
1,91"
L1:
145,3 mm
5,72"
Seal kit:
SZ-16-002SK-A
Vedações:
FKM
30,2
1,19
50,8
2
59,4
2,34
48,5
1,91
5,72
145,3
SZ-16-002SK-A
31,5
1-1/4"
|1-1/4|
SZ90-F20M-B20F
1-1/4” NPTF MALE
1-5/8"-12 UN FEMALE ORB
Specs
Thread 1 (T1):
1-1/4” NPTF MALE - ANSI B1.20.3
Thread 2 (T2):
1-5/8"-12 UN FEMALE ORB - ISO 11926-1
Hex1:
38,1 mm
1,5"
Hex2:
60,3 mm
2,37"
D1:
69,1 mm
2,72"
D2:
62 mm
2,44"
L1:
164,3 mm
6,47"
Seal kit:
SZ-20-001SK-A
Vedações:
FKM
38,1
1,5
60,3
2,37
69,1
2,72
62
2,44
6,47
164,3
SZ-20-001SK-A
31,5
1-1/4"
|1-1/4|
SZ90-J20M-B20F
1 - 5/8" - 12 UN MALE JIC
1-5/8"-12 UN FEMALE ORB
Specs
Thread 1 (T1):
1 - 5/8" - 12 UN MALE JIC - ISO 8434-2
Thread 2 (T2):
1-5/8"-12 UN FEMALE ORB - ISO 11926-1
Hex1:
38,1 mm
1,5"
Hex2:
60,3 mm
2,37"
D1:
69,1 mm
2,72"
D2:
62 mm
2,44"
L1:
172,7 mm
6,8"
Seal kit:
SZ-20-001SK-A
Vedações:
FKM
38,1
1,5
60,3
2,37
69,1
2,72
62
2,44
6,8
172,7
SZ-20-001SK-A
31,5
1-1/4"
|1-1/4|
SZ90-P20M-B20F
1-5/8"-12 UN FEMALE ORB
G 1 1/4" 60° CONE MALE THREAD
Specs
Thread 1 (T1):
1-5/8"-12 UN FEMALE ORB - ISO 11926-1
Thread 2 (T2):
G 1 1/4" 60° CONE MALE THREAD - ISO 8434-6
Hex1:
38,1 mm
1,5"
Hex2:
60,3 mm
2,37"
D1:
73,2 mm
2,88"
L1:
165,4 mm
6,51"
Seal kit:
SZ-20-001SK-A
Vedações:
FKM
38,1
1,5
60,3
2,37
73,2
2,88
6,51
165,4
SZ-20-001SK-A
31,5
1-1/4"
|1-1/4|
SZ90-S20M-B20F
1-11/16"-12 UN MALE ORFS
1-5/8"-12 UN FEMALE ORB

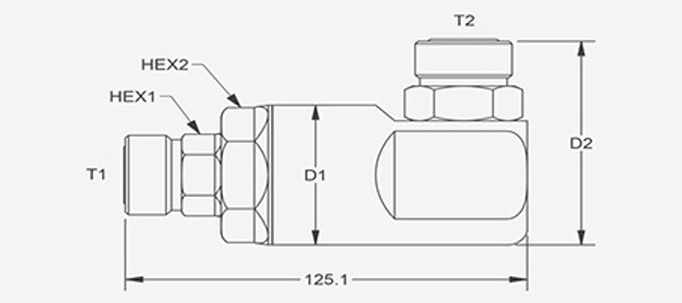

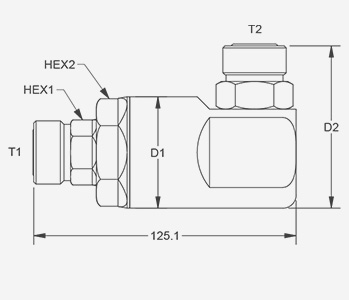

Specs
Thread 1 (T1):
1-11/16"-12 UN MALE ORFS - ISO 8434-3
Thread 2 (T2):
1-5/8"-12 UN FEMALE ORB - ISO 11926-1
Hex1:
39,7 mm
1,56"
Hex2:
60,3 mm
2,37"
D1:
69,1 mm
2,72"
D2:
62 mm
2,44"
L1:
166,1 mm
6,54"
Seal kit:
SZ-20-002SK-A
Vedações:
FKM
39,7
1,56
60,3
2,37
69,1
2,72
62
2,44
6,54
166,1
SZ-20-002SK-A
Forestry Harvester Heads
Roadside Maintenance Machines
Mining Trucks
Underground Mining Machines
Solar Concentrators
Especificações Técnicas
Bitola
Tamanhos (
mm
Inch
)
Pressão de trabalho
Pressão de Ruptura
06
10
3/8"
43 MPa
6236,623 psi
172 MPa
172 MPa
24946,491 psi
24946,491 psi
08
12,5
1/2"
43 MPa
6236,623 psi
172 MPa
172 MPa
24946,491 psi
24946,491 psi
12
19
3/4"
43 MPa
6236,623 psi
172 MPa
172 MPa
24946,491 psi
24946,491 psi
16
25
1"
43 MPa
6236,623 psi
172 MPa
172 MPa
24946,491 psi
24946,491 psi
20
31,5
1-1/4"
43 MPa
6236,623 psi
172 MPa
172 MPa
24946,491 psi
24946,491 psi
Material:
Aço
Vedações:
FKM
Temperaturas de trabalho:
-40 °C to 180 °C
-40 °F to 356 °F
Tratamento da superfície:
CrIII
Warnings:
This product can expose you to chemicals such as Lead or Nickel which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to
www.p65warnings.ca.gov
.
Faster Payoff
Espere, por favor...
A operação solicitada poderia levar alguns segundos
