DUAL MANIFOLD
Aplicações

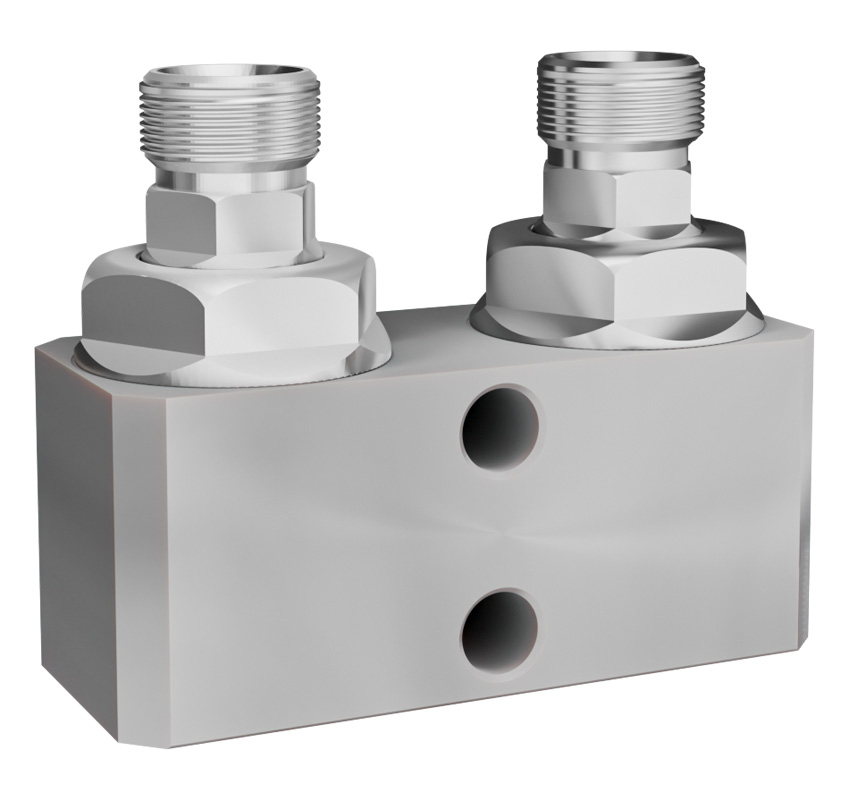

Dual Manifolds house two swivel cartridges of the same size and can be welded or bolted together.
Their modular design allows for the quick and easy creation of custom assemblies, securely held by a metal bracket. Taimi Swivel Manifolds are engineered for a wide variety of demanding applications, including harvester heads, forwarder cranes, feed wheel motors, truck log loaders, mining roof bolters, diamond drills and more.
Produtos
Especif
Macho
Macho
Filtrar
Unidade de medida
Métrico
Polegada
Tamanhos (mm)
10 mm
12,5 mm
16 mm
19 mm
25 mm
31,5 mm
Tamanhos (in)
3/8"
1/2"
5/8"
3/4"
1"
1-1/4"
Código do Produto
Thread 1 (T1)
Thread 2 (T2)
Especif

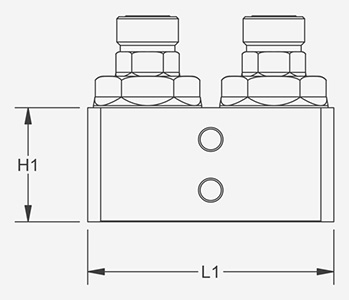

L1

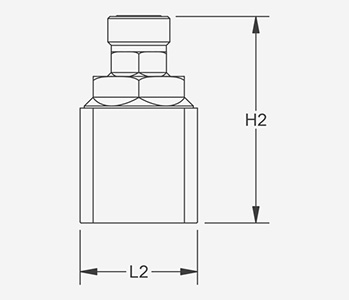

L2
H1
H2
Seal kit
10
3/8"
|3/8|
SM2A-J06-501
9/16"-18 UNF MALE JIC
9/16"-18 UNF MALE JIC
Specs
Thread 1 (T1):
9/16"-18 UNF MALE JIC - ISO 8434-2
Thread 2 (T2):
9/16"-18 UNF MALE JIC - ISO 8434-2
L1:
92,2 mm
3,63"
L2:
38,1
0,04,5,0,04
H1:
38,1 mm
1,5"
H2:
68,8 mm
2,71"
Seal kit:
SZ-06-001SK-A
Vedações:
FKM
* Fixing holes for installation, horizontally spaced.
3,63
92,2
0,04,5,0,04
38,1
1,5
38,1
2,71
68,8
SZ-06-001SK-A
10
3/8"
|3/8|
SM2A-J06-503
9/16"-18 UNF MALE JIC
9/16"-18 UNF MALE JIC
Specs
Thread 1 (T1):
9/16"-18 UNF MALE JIC - ISO 8434-2
Thread 2 (T2):
9/16"-18 UNF MALE JIC - ISO 8434-2
L1:
88,9 mm
3,5"
L2:
38,1
0,04,5,0,04
H1:
38,1 mm
1,5"
H2:
68,8 mm
2,71"
Seal kit:
SZ-06-001SK-A
Vedações:
FKM
3,5
88,9
0,04,5,0,04
38,1
1,5
38,1
2,71
68,8
SZ-06-001SK-A
12,5
1/2"
|1/2|
SM2A-J08-501
3/4"-16 UNF MALE JIC
3/4"-16 UNF MALE JIC
Specs
Thread 1 (T1):
3/4"-16 UNF MALE JIC - ISO 8434-2
Thread 2 (T2):
3/4"-16 UNF MALE JIC - ISO 8434-2
L1:
95,3 mm
3,75"
L2:
41,3
1,61,0,12
H1:
41,3 mm
1,63"
H2:
79,4 mm
3,13"
Seal kit:
SZ-08-001SK-A
Vedações:
FKM
3,75
95,3
1,61,0,12
41,3
1,63
41,3
3,13
79,4
SZ-08-001SK-A
12,5
1/2"
|1/2|
SM2A-P08-501
60° 1/2 BSPP MALE 60° CONE MALE THREAD
60° 1/2 BSPP MALE 60° CONE MALE THREAD
Specs
Thread 1 (T1):
60° 1/2 BSPP MALE 60° CONE MALE THREAD - ISO 8434-6
Thread 2 (T2):
60° 1/2 BSPP MALE 60° CONE MALE THREAD - ISO 8434-6
L1:
95,3 mm
3,75"
L2:
41,3
1,61,0,12
H1:
41,3 mm
1,63"
H2:
76,5 mm
3,01"
Seal kit:
SZ-08-001SK-A
Vedações:
FKM
3,75
95,3
1,61,0,12
41,3
1,63
41,3
3,01
76,5
SZ-08-001SK-A
16
5/8"
|5/8|
SM2A-J10-501
7/8"-14 UNF MALE JIC
7/8"-14 UNF MALE JIC
Specs
Thread 1 (T1):
7/8"-14 UNF MALE JIC - ISO 8434-2
Thread 2 (T2):
7/8"-14 UNF MALE JIC - ISO 8434-2
L1:
114,3 mm
4,5"
L2:
47,8
1,0,315,0,31
H1:
47,8 mm
1,88"
H2:
89,4 mm
3,52"
Seal kit:
SZ-10-001SK-A
Vedações:
FKM
4,5
114,3
1,0,315,0,31
47,8
1,88
47,8
3,52
89,4
SZ-10-001SK-A
19
3/4"
|3/4|
SM2A-J12-501
1-1/16"-12 UN MALE JIC
1-1/16"-12 UN MALE JIC
Specs
Thread 1 (T1):
1-1/16"-12 UN MALE JIC - ISO 8434-2
Thread 2 (T2):
1-1/16"-12 UN MALE JIC - ISO 8434-2
L1:
120,7 mm
4,75"
L2:
50,8
1,97,0,31
H1:
50,8 mm
2"
H2:
100,1 mm
3,94"
Seal kit:
SZ-12-001SK-A
Vedações:
FKM
4,75
120,7
1,97,0,31
50,8
2
50,8
3,94
100,1
SZ-12-001SK-A
19
3/4"
|3/4|
SM2A-P12-501
G 3/4" 60° CONE MALE THREAD
G 3/4" 60° CONE MALE THREAD
Specs
Thread 1 (T1):
G 3/4" 60° CONE MALE THREAD - ISO 8434-6
Thread 2 (T2):
G 3/4" 60° CONE MALE THREAD - ISO 8434-6
L1:
120,7 mm
4,75"
L2:
50,8
1,97,0,31
H1:
50,8 mm
2"
H2:
96,5 mm
3,8"
Seal kit:
SZ-12-001SK-A
Vedações:
FKM
4,75
120,7
1,97,0,31
50,8
2
50,8
3,8
96,5
SZ-12-001SK-A
25
1"
|1|
SM2A-J1612-501
1 - 5/16" - 12 UN MALE JIC
1-1/16"-12 UN MALE JIC
Specs
Thread 1 (T1):
1 - 5/16" - 12 UN MALE JIC - ISO 8434-2
Thread 2 (T2):
1-1/16"-12 UN MALE JIC - ISO 8434-2
L1:
120,7 mm
4,75"
L2:
57,2
0,08,0,084,0,08
H1:
57,2 mm
2,25"
H2:
115,9 mm
4,56"
Seal kit:
SZ-16-001SK-A and SZ-12-001SK-A
Vedações:
FKM
4,75
120,7
0,08,0,084,0,08
57,2
2,25
57,2
4,56
115,9
SZ-16-001SK-A and SZ-12-001SK-A
25
1"
|1|
SM2A-J16-501
1 - 5/16" - 12 UN MALE JIC
1 - 5/16" - 12 UN MALE JIC
Specs
Thread 1 (T1):
1 - 5/16" - 12 UN MALE JIC - ISO 8434-2
Thread 2 (T2):
1 - 5/16" - 12 UN MALE JIC - ISO 8434-2
L1:
127 mm
5"
L2:
57,2
0,08,0,084,0,08
H1:
57,2 mm
2,25"
H2:
116,1 mm
4,57"
Seal kit:
SZ-16-001SK-A
Vedações:
FKM
5
127
0,08,0,084,0,08
57,2
2,25
57,2
4,57
116,1
SZ-16-001SK-A
25
1"
|1|
SM2A-P16-501
G 1" 60° CONE MALE THREAD
G 1" 60° CONE MALE THREAD
Specs
Thread 1 (T1):
G 1" 60° CONE MALE THREAD - ISO 8434-6
Thread 2 (T2):
G 1" 60° CONE MALE THREAD - ISO 8434-6
L1:
127 mm
5"
L2:
57,2
0,08,0,084,0,08
H1:
57,2 mm
2,25"
H2:
113,5 mm
4,47"
Seal kit:
SZ-16-001SK-A
Vedações:
FKM
5
127
0,08,0,084,0,08
57,2
2,25
57,2
4,47
113,5
SZ-16-001SK-A
31,5
1-1/4"
|1-1/4|
SM2A-J20-501
1 - 5/8" - 12 UN MALE JIC
1 - 5/8" - 12 UN MALE JIC
Specs
Thread 1 (T1):
1 - 5/8" - 12 UN MALE JIC - ISO 8434-2
Thread 2 (T2):
1 - 5/8" - 12 UN MALE JIC - ISO 8434-2
L1:
155,4 mm
6,12"
L2:
69,9
2,72,0,35
H1:
69,9 mm
2,75"
H2:
134,6 mm
5,3"
Seal kit:
SZ-20-001SK-A
Vedações:
FKM
6,12
155,4
2,72,0,35
69,9
2,75
69,9
5,3
134,6
SZ-20-001SK-A
31,5
1-1/4"
|1-1/4|
SM2A-P20-501
G 1 1/4" 60° CONE MALE THREAD
G 1 1/4" 60° CONE MALE THREAD
Specs
Thread 1 (T1):
G 1 1/4" 60° CONE MALE THREAD - ISO 8434-6
Thread 2 (T2):
G 1 1/4" 60° CONE MALE THREAD - ISO 8434-6
L1:
150,4 mm
5,92"
L2:
70,0
2,76,0
H1:
70 mm
2,76"
H2:
127,2 mm
5,01"
Seal kit:
SZ-20-001SK-A
Vedações:
FKM
5,92
150,4
2,76,0
70,0
2,76
70
5,01
127,2
SZ-20-001SK-A
