Produktreihe
OGV ST
Anwendungsbereich
Baubranche Industrie Oil&Gas

Screw to connect couplings for Oil & Gas application, market interchange. Equipped with a marker that confirms the complete connection and a longer locking sleeve for an improved engagement.

Screw-to-connect coupling suitable for Oil & Gas applications. Robust sleeve design, poppet valve and ACME connection thread. Equipped with a marker that confirms the complete connection and a longer locking sleeve for an improved engagement.
Downloads
Muffe

Muffe

Filtern
Maßeinheit

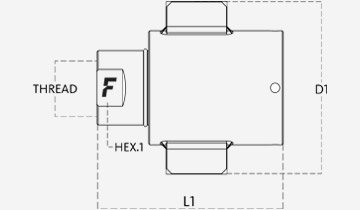

Produktcode Thread Details HEX1 D1 L1
37,5 1-1/2" OGV24 112GAS F ST BSPP 1-1/2" FEMALE
Specs
Durchfluss: 330 (l/min) at 0.2 MPa 87,177 (gal/min) at 0.2 MPa
Dichtungen: NBR & PUR
* Flow rate referred to Pressure Drop dp = 1 bar. PN ending in ST are equipped with a marker that confirms the complete connection.
55 2,17 147 5,79 6,26 159,1
50 2" OGV32 2GAS F ST BSPP 2" FEMALE
Specs
Durchfluss: 570 (l/min) at 0.2 MPa 150,578 (gal/min) at 0.2 MPa
Dichtungen: NBR & PUR
* Flow rate referred to Pressure Drop dp = 1 bar
75 2,95 170 6,69 7,34 186,4

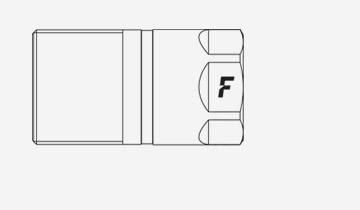

Stecker

Stecker

Filtern
Maßeinheit

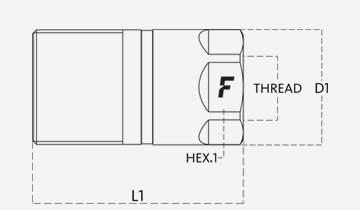

Produktcode Thread Specs HEX1 D1 L1
37,5 1-1/2" OGV24 112GAS M ST BSPP 1-1/2" FEMALE
Specs
Durchfluss: 330 (l/min) at 0.2 MPa 87,177 (gal/min) at 0.2 MPa
Dichtungen: NBR & PUR
* Flow rate referred to Pressure Drop dp = 1 bar
75 2,95 83 3,27 5,97 151,7
50 2" OGV32 2GAS M ST BSPP 2" FEMALE
Specs
Durchfluss: 570 (l/min) at 0.2 MPa 150,578 (gal/min) at 0.2 MPa
Dichtungen: NBR & PUR
* Flow rate referred to Pressure Drop dp = 1 bar. PN ending in ST are equipped with a marker that confirms the complete connection.
75 2,95 103 4,06 7,05 179,1
  • Deckel für Kupplungen

Zubehör

Aluminium caps female Staubschutz - Aluminium - Weiblich
Size Code Farbe
1-1/2"
37,5 mm
 TM OGV24 ST
Metal
2"
50 mm
 TM OGV32 ST
Metal
Aluminium caps male Staubschutz - Aluminium - Männlich
Size Code Farbe
1-1/2"
37,5 mm
 TF OGV24 S
Metal
2"
50 mm
 TF OGV32 S
Metal
Technische Daten
Dash Size Size (mmInch) Arbeitsdruck Durchfluss (l/mingal/min) Spillage (ml) Stecker Berstdruck Muffe Berstdruck Stecker + Muffe Berstdruck
20 31,5 1-1/4" 35 MPa 5076,321 psi 320 84,535 21 180 MPa 26106,793 psi 200 MPa 29007,548 psi 178 MPa 25816,717 psi
24 37,5 1-1/2" 35 MPa 5076,321 psi 330 87,177 41 160 MPa 23206,038 psi 176 MPa 25526,642 psi 170 MPa 24656,415 psi
32 50 2" 35 MPa 5076,321 psi 570 150,578 80 125 MPa 18129,717 psi 130 MPa 18854,906 psi 125 MPa 18129,717 psi
Material:
Stahl
Dichtungen:
NBR & PUR
Betriebstemperaturen:
-25 °C to 100 °C -13 °F to 212 °F
Oberflächenbehandlung:
MATE 500 (CrIII)
Technische Daten:
Austauschbarkeit Serien: MARKET
Ventiltyp: Teller
Verbinden: Zum Verbinden einschrauben
Trennen: Zum Trennen ausschrauben
Verbindung bei anstehendem Druck: Mit Restdruck

Pressure Drop

Data shown in the diagram are indicative and not binding.
Sizes 24 and 32: flow rate measured at 0,1 MPa pressure drop
Dash size are specified.

OGV ST flow diagram
