Standard female couplings with safety sleeve, poppet valve

Standard female couplings very similar to NV series but equipped with an additional safety sleeve to prevent accidental disconnections. Poppet valve shut-off system. Faster proprietary profile ( 1/2" size only is interchangeable according to ISO 7241 part A).

Downloads

Data sheet

Items
Specs

Female

Filter items

Units

PartNumber

Thread

6,3

SV 14 GAS F

BSPP 1/4" FEMALE

Specs

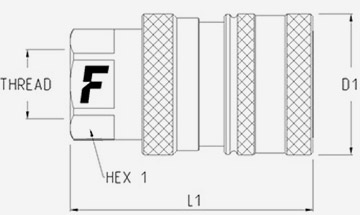

Hex1:	24 mm 0.94"
D1:	27 mm 1.06"
L1:	50 mm 1.97"
Flow Rate:	15 (l/min) at 0.2 MPa 3.963 (gal/min) at 0.2 MPa
Seals:	NBR
Weight:	117 g 0.26 lb
* Faster proprietary profile

12,5

SV 12 GAS F

BSPP 1/2" FEMALE

Specs
Hex1:	27 mm 1.06"
D1:	38 mm 1.5"
L1:	66 mm 2.6"
Flow Rate:	75 (l/min) at 0.2 MPa 19.813 (gal/min) at 0.2 MPa
Temperature:	-25 °C to 125 °C -13 °F to 257 °F
Seals:	NBR
Weight:	299.9 g 0.66 lb

Dust Protections
Various Accessories
For Couplings
Seals

Accessories & Spares

Size (mm)	Size (in)	Thread	Part Number	Material
12,5	1/2"	MF	AD 08-FFHF-NVM	Steel
12,5	1/2"		AE12+OR12

Dust Protection - PVC - Female

Size	Part Number	Color
1" 25 mm	TM 1 G	Yellow
1/2" 12,5 mm	TM 12 L	Blue
1/2" 12,5 mm	TM 12 L/A	Orange
1/2" 12,5 mm	TM 12 L/G	Yellow
1/2" 12,5 mm	TM 12 L/GR	Grey
1/2" 12,5 mm	TM 12 L/M	Brown
1/2" 12,5 mm	TM 12 L/N	Black
1/2" 12,5 mm	TM 12 L/R	Red
1/2" 12,5 mm	TM 12 L/V	Green
1/2" 12,5 mm	TM 12-38	Blue
1/2" 12,5 mm	TM 12-38 C	LightBlue
1/2" 12,5 mm	TM 12-38 G	Yellow
1/2" 12,5 mm	TM 12-38 GR	Grey
1/2" 12,5 mm	TM 12-38 M	Brown
1/2" 12,5 mm	TM 12-38 N	Black
1/2" 12,5 mm	TM 12-38 P R4008	Purple
1/2" 12,5 mm	TM 12-38 R	Red
1/2" 12,5 mm	TM 12-38 V	Green
1/4" 6,3 mm	TM 14	Blue
1/4" 6,3 mm	TM 14 A	Orange
1/4" 6,3 mm	TM 14 G	Yellow
1/4" 6,3 mm	TM 14 GR	Grey
1/4" 6,3 mm	TM 14 N	Black
1/4" 6,3 mm	TM 14 R	Red
1/4" 6,3 mm	TM 14 V	Green
3/4" 20 mm	TM 34	Blue
3/4" 20 mm	TM 34 G	Yellow
1/2" 12,5 mm	TM 34 N	Black
3/4" 20 mm	TM 34 R	Red
3/8" 10 mm	TM 38	Blue
3/8" 10 mm	TM 38 G	Yellow
3/8" 10 mm	TM 38 N	Black
3/8" 10 mm	TM 38 R	Red
3/8" 10 mm	TM 38 V	Green

Dust Protection - PVC - Male

Size	Part Number	Color
1" 25 mm	TF 1 G	Yellow
1/4" 6,3 mm	TF 14	Blue
1/4" 6,3 mm	TF 14 A	Orange
1/4" 6,3 mm	TF 14 G	Yellow
1/4" 6,3 mm	TF 14 N	Black
1/4" 6,3 mm	TF 14 R	Red
1/4" 6,3 mm	TF 14 V	Green
3/4" 20 mm	TF 34 G	Yellow
3/8" 10 mm	TF 38 G	Yellow
3/8" 10 mm	TF 38 V	Green

Dust Protection - Aluminium - Female

Size	Part Number	Color
1/2" 12,5 mm	TM 12 S	Metal
1/4" 6,3 mm	TM 14 S	Metal

Dust Protection - Aluminium - Male

Size	Part Number	Color
1/4" 6,3 mm	TF 14 S	Metal

Seal kits

Size	Thread	Part Number
12,5 mm	1/2"		SK NV 12

Technical Specifications

Burst pressure (MPa)

Dash Size	Size (mmInch)	Working Pressure	Flow Rate (l/mingal/min)	Spillage (ml)	Force to connect (N)	Female Burst pressure	Male + Female Burst pressure
04	6.3 1/4"	35 MPa 5076.321 psi	15 3.963	0.8	55	140 MPa 140 20305.283 psi 20305.283	140 MPa 140 20305.283 psi 20305.283
08	12.5 1/2"	30 MPa 4351.132 psi	75 19.813	1.8	80	120 MPa 120 17404.529 psi 17404.529	130 MPa 130 18854.906 psi 18854.906

Material:
Steel

Seals:
NBR

Working temperatures:
-25 °C to 125 °C

Surface treatment:
MATE 500 (CrIII)

Specifications:
Series Interchange: FASTER
Valve Type: Poppet
Connection: Sleeve Retraction
Disconnection: Sleeve Retraction
Connection Under Pressure: Not Allowed

Pressure Drop

Data shown in the diagram are indicative and not binding.
(§) 1 MPa = 10 bar
Dash size are specified.
