Product series
CVLS
Applications
Agriculture Construction Equipment Vehicles & Road Machines

screw-to-connect coupling, safety sleeve

Screw-on male couplings suitable for general purpose applications. Connectable under residual pressure. High resistance to pressure and flow impulses. Equipped with an additional safety sleeve to prevent accidental disconnections proveked by vibrations. Interchangeable according to ISO 14541 standard.
Downloads
Male

Male

Filter items
Units

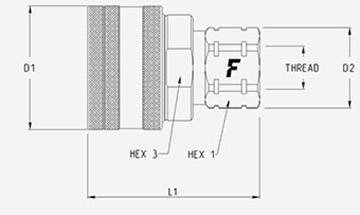

PartNumber Thread Specs
25 CVLS16 34GAS MV BSPP 3/4" FEMALE
Specs
Flow Rate: 175 (l/min) at 0.2 MPa
Temperature: -20 °C to 200 °C
Seals: FKM
Weight: 1214.5 g
41 55 69 50 96
25 CVLS1611/1SAE M 1-7/16"-12 UN MALE ORFS
Specs
Flow Rate: 175 (l/min) at 0.2 MPa
Temperature: -25 °C to 125 °C
Seals: NBR
45 55 69 50 96
  • Dust Protections

Accessories & Spares

Aluminium caps male Dust Protection - Aluminium - Male
Size Part Number Color
12,5 mm
 TFVV 08 S
Metal
25 mm
 TFVV 16 S
Metal
Plastic caps male Dust Protection - Plastic - Male
Size Part Number Color
12,5 mm
 TFVV 08
Red
25 mm
 TFVV 16
Red
Technical Specifications
Dash Size Size (mm) Working Pressure Flow Rate (l/min) Spillage (ml) Male Burst pressure Male + Female Burst pressure
16 25 27 MPa 175 13 110 MPa 140 MPa
Material:
Steel
Seals:
FKM
Working temperatures:
-20 °C to 200 °C
Surface treatment:
MATE 500 (CrIII)
Specifications:
Series Interchange: MARKET
Valve Type: Poppet
Connection: Screw to Connect
Disconnection: Unscrew to Disconnect
Connection Under Pressure: Allowed Residual

Pressure Drop

Data shown in the diagram are indicative and not binding.
(§) 1 MPa = 10 bar
Dash size are specified.

CVLS flow diagram
