Product series
AGRI Zinc-Nickel
Applications
Agriculture

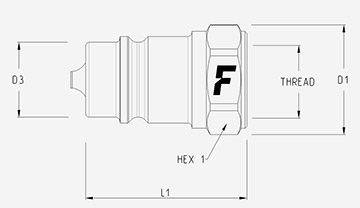

Male coupling for agriculture, Zinc-Nickel Surface Treatment. ISO 7241-A size 1/2" interchange.

The most popular male coupling for agricultural applications with Zn-Ni surface treatment for improved resistance. Interchangeable according to ISO 7241 part A, size 1/2".
Downloads
Male

Male

Filter items
Units
PartNumber Thread Specs
12,5 AGRI 12 GAS M7 BSPP 1/2" FEMALE
Specs
Flow Rate: 75 (l/min) at 0.2 MPa
Weight: 80.5 g
27 30 44
  • Dust Protections
  • Various Accessories
  • For Couplings

Accessories & Spares

Size (mm) Thread Part Number Material
12,5 SS 12 M Steel
12,5 IDES27 B PVC
12,5 IDES27 G PVC
12,5 IDES27 R PVC
12,5 IDES27 V PVC
12,5 SS 12 M TA R Steel & Plastic
12,5 SS 12 M TA N Steel & Plastic
12,5 AE12+OR12
PVC caps male Dust Protection - PVC - Male
Size Part Number Color
12,5 mm
 TF 12
Blue
12,5 mm
 TF 12 A
Orange
12,5 mm
 TF 12 G
Yellow
12,5 mm
 TF 12 GR
Grey
12,5 mm
 TF 12 M
Brown
12,5 mm
 TF 12 N
Black
12,5 mm
 TF 12 R
Red
12,5 mm
 TF 12 V
Green
Aluminium caps male Dust Protection - Aluminium - Male
Size Part Number Color
12,5 mm
 TF 12 S
Metal
Technical Specifications
Dash Size Size (mm) Working Pressure Flow Rate (l/min) Spillage (ml) Force to connect (N) Male Burst pressure Female Burst pressure Male + Female Burst pressure
08 12.5 25 MPa 75 1.8 80 100 MPa 130 MPa 130 MPa
Material:
Steel
Working temperatures:
-25 °C to 125 °C
Surface treatment:
MATE 1000 (ZnNi)
Specifications:
Series Interchange: ISO 7241-A
Valve Type: Poppet
Connection: Sleeve Retraction
Disconnection: Sleeve Retraction
Connection Under Pressure: Not Allowed

Pressure Drop

Data shown in the diagram are indicative and not binding.
(§) 1 MPa = 10 bar
Dash size are specified.

AGRI Zinc-Nickel flow diagram
