Product series
IN-LINE SWIVELS
Applicazioni
I giunti girevoli privi di sfere brevettati da Taimi assorbono i movimenti torsionali e di piegamento, proteggendo i tubi flessibili dall'usura prematura. I giunti girevoli lineari sono perfetti per percorsi fluidi diretti senza cambi di direzione.
Migliora l'affidabilità del tuo sistema idraulico con i raccordi girevoli Taimi, che aumentano significativamente la vita utile dei tubi, eliminano le perdite e sono scelti dai principali produttori di macchinari per una maggiore produttività e costi operativi inferiori.
Prodotti
Specs
Applicazioni
Maschio
Maschio
Filtra
Unità di Misura
Metric
Imperial
Dimensioni (mm)
10 mm
12,5 mm
16 mm
19 mm
25 mm
31,5 mm
37,5 mm
50 mm
Dimensioni (in)
3/8"
1/2"
5/8"
3/4"
1"
1-1/4"
1-1/2"
2"
Codice Prodotto
Thread 1 (T1)
Thread 2 (T2)

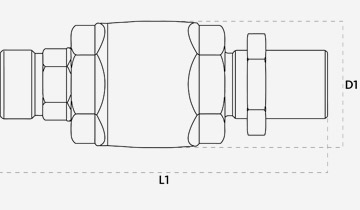

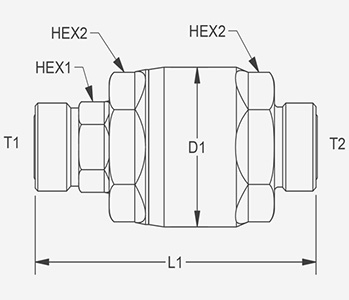

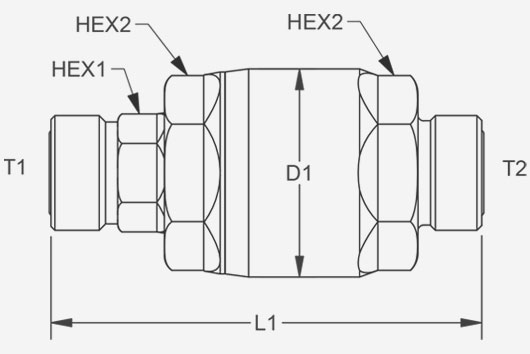

Specs
HEX1
HEX2
D1
L1
Seal kit
10
3/8"
|3/8|
SZ-J06M-J06M
9/16"-18 UNF MALE JIC
9/16"-18 UNF MALE JIC
Specs
Thread 1 (T1):
9/16"-18 UNF MALE JIC - ISO 8434-2
Thread 2 (T2):
9/16"-18 UNF MALE JIC - ISO 8434-2
Hex1:
12,7 mm
0,5"
Hex2:
25,4 mm
1"
D1:
31 mm
1,22"
L1:
75,7 mm
2,98"
Seal kit:
SZ-06-001SK-A
Guarnizioni:
FKM
* Ex reference S10613ES13ES-10V000
12,7
0,5
25,4
1
31
1,22
2,98
75,7
SZ-06-001SK-A
10
3/8"
|3/8|
SZ-J06M-J06MB
9/16"-18 UNF MALE JIC
9/16"-18 UNF MALE BULKHEAD JIC
Specs
Thread 1 (T1):
9/16"-18 UNF MALE JIC - ISO 8434-2
Thread 2 (T2):
9/16"-18 UNF MALE BULKHEAD JIC - ISO 8434-2
Hex1:
12,7 mm
0,5"
Hex2:
25,4 mm
1"
D1:
31 mm
1,22"
L1:
94,2 mm
3,71"
Seal kit:
SZ-06-001SK-A
Guarnizioni:
FKM
12,7
0,5
25,4
1
31
1,22
3,71
94,2
SZ-06-001SK-A
10
3/8"
|3/8|
SZ-J06M-JB06F
9/16"-18 UNF MALE JIC
Specs
Thread 1 (T1):
9/16"-18 UNF MALE JIC - ISO 8434-2
Hex1:
12,7 mm
0,5"
Hex2:
25,4 mm
1"
D1:
31 mm
1,22"
L1:
65,8 mm
2,59"
Seal kit:
SZ-06-001SK-A
Guarnizioni:
FKM
12,7
0,5
25,4
1
31
1,22
2,59
65,8
SZ-06-001SK-A
10
3/8"
|3/8|
SZ-S06M-S06M
11/16"-16 UN MALE ORFS
11/16"-16 UN MALE ORFS
Specs
Thread 1 (T1):
11/16"-16 UN MALE ORFS - ISO 8434-3
Thread 2 (T2):
11/16"-16 UN MALE ORFS - ISO 8434-3
Hex1:
15,9 mm
0,63"
Hex2:
28,6 mm
1,13"
D1:
34 mm
1,34"
L1:
71 mm
2,8"
Seal kit:
SZ-06-002SK-A
Guarnizioni:
FKM
* Ex reference S10611ES11ES-10V000
15,9
0,63
28,6
1,13
34
1,34
2,8
71
SZ-06-002SK-A
12,5
1/2"
|1/2|
SZ-F08M-F08F
1/2" NPTF MALE
NPTF 1/2" FEMALE
Specs
Thread 1 (T1):
1/2" NPTF MALE - ANSI B1.20.3
Thread 2 (T2):
NPTF 1/2" FEMALE - ANSI B1.20.3
Hex1:
19,1 mm
0,75"
Hex2:
30,2 mm
1,19"
D1:
38,9 mm
1,53"
L1:
75,4 mm
2,97"
Seal kit:
SZ-08-002SK-A
Guarnizioni:
FKM
19,1
0,75
30,2
1,19
38,9
1,53
2,97
75,4
SZ-08-002SK-A
12,5
1/2"
|1/2|
SZ-J08M-J08M
3/4"-16 UNF MALE JIC
3/4"-16 UNF MALE JIC
Specs
Thread 1 (T1):
3/4"-16 UNF MALE JIC - ISO 8434-2
Thread 2 (T2):
3/4"-16 UNF MALE JIC - ISO 8434-2
Hex1:
17,5 mm
0,69"
Hex2:
31,8 mm
1,25"
D1:
37,3 mm
1,47"
L1:
97,5 mm
3,84"
Seal kit:
SZ-08-001SK-A
Guarnizioni:
FKM
* Ex reference S10813FS13FS-10V000
17,5
0,69
31,8
1,25
37,3
1,47
3,84
97,5
SZ-08-001SK-A
12,5
1/2"
|1/2|
SZ-J08M-J08MB
3/4"-16 UNF MALE JIC
3/4"-16 UN MALE BULKHEAD JIC
Specs
Thread 1 (T1):
3/4"-16 UNF MALE JIC - ISO 8434-2
Thread 2 (T2):
3/4"-16 UN MALE BULKHEAD JIC - ISO 8434-2
Hex1:
17,5 mm
0,69"
Hex2:
31,8 mm
1,25"
D1:
37,3 mm
1,47"
L1:
116,6 mm
4,59"
Seal kit:
SZ-08-001SK-A
Guarnizioni:
FKM
* Ex reference S10813FS14FS-10V000
17,5
0,69
31,8
1,25
37,3
1,47
4,59
116,6
SZ-08-001SK-A
12,5
1/2"
|1/2|
SZ-J08M-JB08F
3/4"-16 UNF MALE JIC
3/4" - 16 UNF
Specs
Thread 1 (T1):
3/4"-16 UNF MALE JIC - ISO 8434-2
Thread 2 (T2):
3/4" - 16 UNF - ISO 11926-3 & ISO 8434-2
Hex1:
17,5 mm
0,69"
Hex2:
31,8 mm
1,25"
D1:
37,3 mm
1,47"
L1:
83,3 mm
3,28"
Seal kit:
SZ-08-001SK-A
Guarnizioni:
FKM
* Ex reference S10813FS00FS-10V000
17,5
0,69
31,8
1,25
37,3
1,47
3,28
83,3
SZ-08-001SK-A
12,5
1/2"
|1/2|
SZ-M20SM-P08F
M20x1.5 MALE 12S
1/2 BSP FEMALE ORB
Specs
Thread 1 (T1):
M20x1.5 MALE 12S - ISO 8434-1-S
Thread 2 (T2):
1/2 BSP FEMALE ORB - BS 5380
Hex1:
19,1 mm
0,75"
Hex2:
30,2 mm
1,19"
D1:
39 mm
1,54"
L1:
75 mm
2,95"
Seal kit:
SZ-08-002SK-A
Guarnizioni:
FKM
19,1
0,75
30,2
1,19
39
1,54
2,95
75
SZ-08-002SK-A
12,5
1/2"
|1/2|
SZ-P08M-P08F
60° 1/2 BSPP MALE 60° CONE MALE THREAD
1/2 BSP FEMALE ORB
Specs
Thread 1 (T1):
60° 1/2 BSPP MALE 60° CONE MALE THREAD - ISO 8434-6
Thread 2 (T2):
1/2 BSP FEMALE ORB - BS 5380
Hex1:
19,1 mm
0,75"
Hex2:
30,2 mm
1,19"
D1:
39 mm
1,54"
L1:
75 mm
2,95"
Seal kit:
SZ-08-002SK-A
Guarnizioni:
FKM
* Ex reference S10816DG00DG-10V000
19,1
0,75
30,2
1,19
39
1,54
2,95
75
SZ-08-002SK-A
12,5
1/2"
|1/2|
SZ-P08M-P08M
60° 1/2 BSPP MALE 60° CONE MALE THREAD
60° 1/2 BSPP MALE 60° CONE MALE THREAD
Specs
Thread 1 (T1):
60° 1/2 BSPP MALE 60° CONE MALE THREAD - ISO 8434-6
Thread 2 (T2):
60° 1/2 BSPP MALE 60° CONE MALE THREAD - ISO 8434-6
Hex1:
19,1 mm
0,75"
Hex2:
30,2 mm
1,19"
D1:
39 mm
1,54"
L1:
88 mm
3,46"
Seal kit:
SZ-08-002SK-A
Guarnizioni:
FKM
* Ex reference S10816DG16DG-10V000
19,1
0,75
30,2
1,19
39
1,54
3,46
88
SZ-08-002SK-A
12,5
1/2"
|1/2|
SZ-S08M-P08M
13/16"-16 UN MALE ORFS
60° 1/2 BSPP MALE 60° CONE MALE THREAD
Specs
Thread 1 (T1):
13/16"-16 UN MALE ORFS - ISO 8434-3
Thread 2 (T2):
60° 1/2 BSPP MALE 60° CONE MALE THREAD - ISO 8434-6
Hex1:
19,1 mm
0,75"
Hex2:
30,2 mm
1,19"
D1:
39 mm
1,54"
L1:
89 mm
3,5"
Seal kit:
SZ-08-002SK-A
Guarnizioni:
FKM
19,1
0,75
30,2
1,19
39
1,54
3,5
89
SZ-08-002SK-A
12,5
1/2"
|1/2|
SZ-S08M-S08F
13/16"-16 UN MALE ORFS
Specs
Thread 1 (T1):
13/16"-16 UN MALE ORFS - ISO 8434-3
Hex1:
19,1 mm
0,75"
Hex2:
30,2 mm
1,19"
D1:
40 mm
1,57"
L1:
76 mm
2,99"
Seal kit:
SZ-08-002SK-A
Guarnizioni:
FKM
19,1
0,75
30,2
1,19
40
1,57
2,99
76
SZ-08-002SK-A
12,5
1/2"
|1/2|
SZ-S08M-S08M
13/16"-16 UN MALE ORFS
13/16"-16 UN MALE ORFS
Specs
Thread 1 (T1):
13/16"-16 UN MALE ORFS - ISO 8434-3
Thread 2 (T2):
13/16"-16 UN MALE ORFS - ISO 8434-3
Hex1:
19,1 mm
0,75"
Hex2:
30,2 mm
1,19"
D1:
40,1 mm
1,58"
L1:
88,9 mm
3,5"
Seal kit:
SZ-08-002SK-A
Guarnizioni:
FKM
* Ex reference S10811FS11FS-10V000
19,1
0,75
30,2
1,19
40,1
1,58
3,5
88,9
SZ-08-002SK-A
12,5
1/2"
|1/2|
SZ-S08M-S08MB
13/16"-16 UN MALE ORFS
13/16"-16 UN MALE BULKHEAD ORFS
Specs
Thread 1 (T1):
13/16"-16 UN MALE ORFS - ISO 8434-3
Thread 2 (T2):
13/16"-16 UN MALE BULKHEAD ORFS - ISO 8434-3
Hex1:
19,1 mm
0,75"
Hex2:
30,2 mm
1,19"
D1:
40 mm
1,57"
L1:
108 mm
4,25"
Seal kit:
SZ-08-002SK-A
Guarnizioni:
FKM
* Ex reference S10811FS12FS-10V000
19,1
0,75
30,2
1,19
40
1,57
4,25
108
SZ-08-002SK-A
16
5/8"
|5/8|
SZ-J10M-JB10F
7/8"-14 UNF MALE JIC
7/8" - 14 UNF
Specs
Thread 1 (T1):
7/8"-14 UNF MALE JIC - ISO 8434-2
Thread 2 (T2):
7/8" - 14 UNF - ISO 11926-3 & ISO 8434-2
Hex1:
20,6 mm
0,81"
Hex2:
38,1 mm
1,5"
D1:
43,7 mm
1,72"
L1:
87,1 mm
3,43"
Seal kit:
SZ-10-001SK-A
Guarnizioni:
FKM
20,6
0,81
38,1
1,5
43,7
1,72
3,43
87,1
SZ-10-001SK-A
16
5/8"
|5/8|
SZ-M24SM-M24SMB
M24x1,5 MALE 16S
M24x1.5 MALE BULKHEAD 16S
Specs
Thread 1 (T1):
M24x1,5 MALE 16S - ISO 8434-1-S
Thread 2 (T2):
M24x1.5 MALE BULKHEAD 16S - ISO 8434-1-S
Hex1:
23,8 mm
0,94"
Hex2:
41,3 mm
1,63"
D1:
47 mm
1,85"
L1:
120 mm
4,72"
Seal kit:
SZ-10-002SK-A
Guarnizioni:
FKM
23,8
0,94
41,3
1,63
47
1,85
4,72
120
SZ-10-002SK-A
16
5/8"
|5/8|
SZ-P10M-P10F
BSPP 5/8" FEMALE
Specs
Thread 1 (T1):
BSPP 5/8" FEMALE - ISO 1179-1
Hex1:
23,8 mm
0,94"
Hex2:
41,3 mm
1,63"
D1:
47 mm
1,85"
L1:
81 mm
3,19"
Seal kit:
SZ-10-001SK-A
Guarnizioni:
FKM
Peso:
630 g
1,39 lb
23,8
0,94
41,3
1,63
47
1,85
3,19
81
SZ-10-001SK-A
16
5/8"
|5/8|
SZ-S10M-S10F
1"-14 UNS MALE ORFS
1" - 14 UNS SAE FEMALE ORFS
Specs
Thread 1 (T1):
1"-14 UNS MALE ORFS - ISO 8434-3
Thread 2 (T2):
1" - 14 UNS SAE FEMALE ORFS - ISO 8434-3
Hex1:
23,8 mm
0,94"
Hex2:
41,3 mm
1,63"
D1:
47 mm
1,85"
L1:
80 mm
3,15"
Seal kit:
SZ-10-002SK-A
Guarnizioni:
FKM
23,8
0,94
41,3
1,63
47
1,85
3,15
80
SZ-10-002SK-A
16
5/8"
|5/8|
SZ-S10M-S10M
1"-14 UNS MALE ORFS
1"-14 UNS MALE ORFS
Specs
Thread 1 (T1):
1"-14 UNS MALE ORFS - ISO 8434-3
Thread 2 (T2):
1"-14 UNS MALE ORFS - ISO 8434-3
Hex1:
23,8 mm
0,94"
Hex2:
41,3 mm
1,63"
D1:
47 mm
1,85"
L1:
96 mm
3,78"
Seal kit:
SZ-10-002SK-A
Guarnizioni:
FKM
23,8
0,94
41,3
1,63
47
1,85
3,78
96
SZ-10-002SK-A
16
5/8"
|5/8|
SZ-S10M-S10MB
1"-14 UNS MALE ORFS
1"-14 UNS MALE BULKHEAD ORFS
Specs
Thread 1 (T1):
1"-14 UNS MALE ORFS - ISO 8434-3
Thread 2 (T2):
1"-14 UNS MALE BULKHEAD ORFS - ISO 8434-3
Hex1:
23,8 mm
0,94"
Hex2:
41,3 mm
1,63"
D1:
47 mm
1,85"
L1:
115 mm
4,53"
Seal kit:
SZ-10-002SK-A
Guarnizioni:
FKM
* Ex reference S11011GS12GS-10V000
23,8
0,94
41,3
1,63
47
1,85
4,53
115
SZ-10-002SK-A
19
3/4"
|3/4|
SZ-F12M-F12F
3/4" NPTF MALE
NPTF 3/4" FEMALE
Specs
Thread 1 (T1):
3/4" NPTF MALE - ANSI B1.20.3
Thread 2 (T2):
NPTF 3/4" FEMALE - ANSI B1.20.3
Hex1:
23,8 mm
0,94"
Hex2:
41,3 mm
1,63"
D1:
50 mm
1,97"
L1:
98 mm
3,86"
Seal kit:
SZ-12-001SK-A
Guarnizioni:
FKM
23,8
0,94
41,3
1,63
50
1,97
3,86
98
SZ-12-001SK-A
19
3/4"
|3/4|
SZ-F12M-J12M
3/4" NPTF MALE
1-1/16"-12 UN MALE JIC
Specs
Thread 1 (T1):
3/4" NPTF MALE - ANSI B1.20.3
Thread 2 (T2):
1-1/16"-12 UN MALE JIC - ISO 8434-2
D1:
50 mm
1,97"
L1:
121,9 mm
4,8"
Guarnizioni:
FKM
50
1,97
4,8
121,9
19
3/4"
|3/4|
SZ-F12M-JB12F
3/4" NPTF MALE
1 1/16" - 12 UN
Specs
Thread 1 (T1):
3/4" NPTF MALE - ANSI B1.20.3
Thread 2 (T2):
1 1/16" - 12 UN - ISO 11926-3 & ISO 8434-2
Hex1:
23,8 mm
0,94"
Hex2:
41,3 mm
1,63"
D1:
50 mm
1,97"
L1:
103 mm
4,06"
Seal kit:
SZ-12-001SK-A
Guarnizioni:
FKM
23,8
0,94
41,3
1,63
50
1,97
4,06
103
SZ-12-001SK-A
19
3/4"
|3/4|
SZ-J12M-B12M
1-1/16"-12 UN MALE JIC
Specs
Thread 1 (T1):
1-1/16"-12 UN MALE JIC - ISO 8434-2
Hex1:
23,8 mm
0,94"
Hex2:
41,3 mm
1,63"
D1:
50 mm
1,97"
L1:
118,6 mm
4,67"
Seal kit:
SZ-12-001SK-A
Guarnizioni:
FKM
23,8
0,94
41,3
1,63
50
1,97
4,67
118,6
SZ-12-001SK-A
19
3/4"
|3/4|
SZ-J12M-F12F
1-1/16"-12 UN MALE JIC
NPTF 3/4" FEMALE
Specs
Thread 1 (T1):
1-1/16"-12 UN MALE JIC - ISO 8434-2
Thread 2 (T2):
NPTF 3/4" FEMALE - ANSI B1.20.3
Hex1:
23,8 mm
0,94"
Hex2:
41,3 mm
1,63"
D1:
50 mm
1,97"
L1:
100,3 mm
3,95"
Seal kit:
SZ-12-001SK-A
Guarnizioni:
FKM
23,8
0,94
41,3
1,63
50
1,97
3,95
100,3
SZ-12-001SK-A
19
3/4"
|3/4|
SZ-J12M-J12M
1-1/16"-12 UN MALE JIC
1-1/16"-12 UN MALE JIC
Specs
Thread 1 (T1):
1-1/16"-12 UN MALE JIC - ISO 8434-2
Thread 2 (T2):
1-1/16"-12 UN MALE JIC - ISO 8434-2
Hex1:
23,8 mm
0,94"
Hex2:
41,3 mm
1,63"
D1:
50 mm
1,97"
L1:
124,2 mm
4,89"
Seal kit:
SZ-12-001SK-A
Guarnizioni:
FKM
* Ex reference S11213HS13HS-10V000
23,8
0,94
41,3
1,63
50
1,97
4,89
124,2
SZ-12-001SK-A
19
3/4"
|3/4|
SZ-J12M-J12MB
1-1/16"-12 UN MALE JIC
1-1/16"-12 UN MALE BULKHEAD JIC
Specs
Thread 1 (T1):
1-1/16"-12 UN MALE JIC - ISO 8434-2
Thread 2 (T2):
1-1/16"-12 UN MALE BULKHEAD JIC - ISO 8434-2
Hex1:
23,8 mm
0,94"
Hex2:
41,3 mm
1,63"
D1:
50 mm
1,97"
L1:
144,5 mm
5,69"
Seal kit:
SZ-12-001SK-A
Guarnizioni:
FKM
* Ex reference S11213HS14HS-10V000
23,8
0,94
41,3
1,63
50
1,97
5,69
144,5
SZ-12-001SK-A
19
3/4"
|3/4|
SZ-J12M-JB12F
1-1/16"-12 UN MALE JIC
1 1/16" - 12 UN
Specs
Thread 1 (T1):
1-1/16"-12 UN MALE JIC - ISO 8434-2
Thread 2 (T2):
1 1/16" - 12 UN - ISO 11926-3 & ISO 8434-2
Hex1:
23,8 mm
0,94"
Hex2:
41,3 mm
1,63"
D1:
50 mm
1,97"
L1:
105,1 mm
4,14"
Seal kit:
SZ-12-001SK-A
Guarnizioni:
FKM
* Ex reference S11213HS00HS-10V000
23,8
0,94
41,3
1,63
50
1,97
4,14
105,1
SZ-12-001SK-A
19
3/4"
|3/4|
SZ-J12M-P12F
1-1/16"-12 UN MALE JIC
BSPP 3/4" FEMALE
Specs
Thread 1 (T1):
1-1/16"-12 UN MALE JIC - ISO 8434-2
Thread 2 (T2):
BSPP 3/4" FEMALE - ISO 1179-1
Hex1:
23,8 mm
0,94"
Hex2:
41,3 mm
1,63"
D1:
50 mm
1,97"
L1:
98,7 mm
3,89"
Seal kit:
SZ-12-001SK-A
Guarnizioni:
FKM
23,8
0,94
41,3
1,63
50
1,97
3,89
98,7
SZ-12-001SK-A
19
3/4"
|3/4|
SZ-J12M-P12M
1-1/16"-12 UN MALE JIC
G 3/4" 60° CONE MALE THREAD
Specs
Thread 1 (T1):
1-1/16"-12 UN MALE JIC - ISO 8434-2
Thread 2 (T2):
G 3/4" 60° CONE MALE THREAD - ISO 8434-6
Hex1:
23,8 mm
0,94"
Hex2:
41,3 mm
1,63"
D1:
50 mm
1,97"
L1:
113 mm
4,45"
Seal kit:
SZ-12-001SK-A
Guarnizioni:
FKM
23,8
0,94
41,3
1,63
50
1,97
4,45
113
SZ-12-001SK-A
19
3/4"
|3/4|
SZ-M30SM-M30SMB
M30x2 MALE 20S
M30x2 MALE BULKHEAD 20S
Specs
Thread 1 (T1):
M30x2 MALE 20S - ISO 8434-1-S
Thread 2 (T2):
M30x2 MALE BULKHEAD 20S - ISO 8434-1-S
Hex1:
27 mm
1,06"
Hex2:
44,5 mm
1,75"
D1:
55 mm
2,17"
L1:
142 mm
5,59"
Seal kit:
SZ-12-002SK-A
Guarnizioni:
FKM
27
1,06
44,5
1,75
55
2,17
5,59
142
SZ-12-002SK-A
19
3/4"
|3/4|
SZ-M30SM-P12F
M30x2 MALE 20S
3/4 BSP FEMALE ORB
Specs
Thread 1 (T1):
M30x2 MALE 20S - ISO 8434-1-S
Thread 2 (T2):
3/4 BSP FEMALE ORB - BS 5380
Hex1:
27 mm
1,06"
Hex2:
44,5 mm
1,75"
D1:
55 mm
2,17"
L1:
96 mm
3,78"
Seal kit:
SZ-12-002SK-A
Guarnizioni:
FKM
27
1,06
44,5
1,75
55
2,17
3,78
96
SZ-12-002SK-A
19
3/4"
|3/4|
SZ-P12M-F12F
G 3/4" 60° CONE MALE THREAD
NPTF 3/4" FEMALE
Specs
Thread 1 (T1):
G 3/4" 60° CONE MALE THREAD - ISO 8434-6
Thread 2 (T2):
NPTF 3/4" FEMALE - ANSI B1.20.3
Hex1:
23,8 mm
0,94"
Hex2:
41,3 mm
1,63"
D1:
50 mm
1,97"
L1:
96,6 mm
3,8"
Seal kit:
SZ-12-001SK-A
Guarnizioni:
FKM
23,8
0,94
41,3
1,63
50
1,97
3,8
96,6
SZ-12-001SK-A
19
3/4"
|3/4|
SZ-P12M-JB12F
G 3/4" 60° CONE MALE THREAD
1 1/16" - 12 UN
Specs
Thread 1 (T1):
G 3/4" 60° CONE MALE THREAD - ISO 8434-6
Thread 2 (T2):
1 1/16" - 12 UN - ISO 11926-3 & ISO 8434-2
Hex1:
23,8 mm
0,94"
Hex2:
41,3 mm
1,63"
D1:
50 mm
1,97"
L1:
101,3 mm
3,99"
Seal kit:
SZ-12-001SK-A
Guarnizioni:
FKM
Peso:
800 g
1,76 lb
23,8
0,94
41,3
1,63
50
1,97
3,99
101,3
SZ-12-001SK-A
19
3/4"
|3/4|
SZ-P12M-P12F
BSPP 3/4" FEMALE
G 3/4" 60° CONE MALE THREAD
Specs
Thread 1 (T1):
BSPP 3/4" FEMALE - ISO 1179-1
Thread 2 (T2):
G 3/4" 60° CONE MALE THREAD - ISO 8434-6
Hex1:
23,8 mm
0,94"
Hex2:
41,3 mm
1,63"
D1:
50 mm
1,97"
L1:
95 mm
3,74"
Seal kit:
SZ-12-001SK-A
Guarnizioni:
FKM
* Ex reference S11216FG00FG-10V000
23,8
0,94
41,3
1,63
50
1,97
3,74
95
SZ-12-001SK-A
19
3/4"
|3/4|
SZ-P12M-P12M
G 3/4" 60° CONE MALE THREAD
G 3/4" 60° CONE MALE THREAD
Specs
Thread 1 (T1):
G 3/4" 60° CONE MALE THREAD - ISO 8434-6
Thread 2 (T2):
G 3/4" 60° CONE MALE THREAD - ISO 8434-6
Hex1:
23,8 mm
0,94"
Hex2:
41,3 mm
1,63"
D1:
50 mm
1,97"
L1:
109 mm
4,29"
Seal kit:
SZ-12-001SK-A
Guarnizioni:
FKM
* Ex reference S11216FG16FG-10V000
23,8
0,94
41,3
1,63
50
1,97
4,29
109
SZ-12-001SK-A
19
3/4"
|3/4|
SZ-S12M-B12M
1-3/16"-12 UN MALE ORFS
Specs
Thread 1 (T1):
1-3/16"-12 UN MALE ORFS - ISO 8434-3
Hex1:
27 mm
1,06"
Hex2:
44,5 mm
1,75"
D1:
55 mm
2,17"
L1:
115 mm
4,53"
Seal kit:
SZ-12-002SK-A
Guarnizioni:
FKM
27
1,06
44,5
1,75
55
2,17
4,53
115
SZ-12-002SK-A
19
3/4"
|3/4|
SZ-S12M-JB12F
1-3/16"-12 UN MALE ORFS
1 1/16" - 12 UN
Specs
Thread 1 (T1):
1-3/16"-12 UN MALE ORFS - ISO 8434-3
Thread 2 (T2):
1 1/16" - 12 UN - ISO 11926-3 & ISO 8434-2
Hex1:
27 mm
1,06"
Hex2:
44,5 mm
1,75"
D1:
55 mm
2,17"
L1:
101 mm
3,98"
Seal kit:
SZ-12-002SK-A
Guarnizioni:
FKM
27
1,06
44,5
1,75
55
2,17
3,98
101
SZ-12-002SK-A
19
3/4"
|3/4|
SZ-S12M-S12F
1-3/16"-12 UN MALE ORFS
1 - 3/16" - 12 UN SAE FEMALE ORFS
Specs
Thread 1 (T1):
1-3/16"-12 UN MALE ORFS - ISO 8434-3
Thread 2 (T2):
1 - 3/16" - 12 UN SAE FEMALE ORFS - ISO 8434-3
Hex1:
27 mm
1,06"
Hex2:
44,5 mm
1,75"
D1:
55 mm
2,17"
L1:
96 mm
3,78"
Seal kit:
SZ-12-002SK-A
Guarnizioni:
FKM
* Ex reference S11211HS27HS-10V000
27
1,06
44,5
1,75
55
2,17
3,78
96
SZ-12-002SK-A
19
3/4"
|3/4|
SZ-S12M-S12M
1-3/16"-12 UN MALE ORFS
1-3/16"-12 UN MALE ORFS
Specs
Thread 1 (T1):
1-3/16"-12 UN MALE ORFS - ISO 8434-3
Thread 2 (T2):
1-3/16"-12 UN MALE ORFS - ISO 8434-3
Hex1:
27 mm
1,06"
Hex2:
44,5 mm
1,75"
D1:
55 mm
2,17"
L1:
113 mm
4,45"
Seal kit:
SZ-12-002SK-A
Guarnizioni:
FKM
* Ex reference S11211HS11HS-10V000
27
1,06
44,5
1,75
55
2,17
4,45
113
SZ-12-002SK-A
19
3/4"
|3/4|
SZ-S12M-S12MB
1-3/16"-12 UN MALE ORFS
1 3/16" - 12 UN MALE BULKHEAD ORFS
Specs
Thread 1 (T1):
1-3/16"-12 UN MALE ORFS - ISO 8434-3
Thread 2 (T2):
1 3/16" - 12 UN MALE BULKHEAD ORFS - ISO 8434-3
Hex1:
27 mm
1,06"
Hex2:
44,5 mm
1,75"
D1:
55 mm
2,17"
L1:
132 mm
5,2"
Seal kit:
SZ-12-002SK-A
Guarnizioni:
FKM
* Ex reference S11211HS12HS-10V000
27
1,06
44,5
1,75
55
2,17
5,2
132
SZ-12-002SK-A
25
1"
|1|
SZ-F16M-F16F
1” NPTF MALE
NPTF 1" FEMALE
Specs
Thread 1 (T1):
1” NPTF MALE - ANSI B1.20.3
Thread 2 (T2):
NPTF 1" FEMALE - ANSI B1.20.3
Hex1:
30,2 mm
1,19"
Hex2:
47,6 mm
1,87"
D1:
56,4 mm
2,22"
L1:
104,9 mm
4,13"
Seal kit:
SZ-16-001SK-A
Guarnizioni:
FKM
30,2
1,19
47,6
1,87
56,4
2,22
4,13
104,9
SZ-16-001SK-A
25
1"
|1|
SZ-F16M-J16M
1” NPTF MALE
1 - 5/16" - 12 UN MALE JIC
Specs
Thread 1 (T1):
1” NPTF MALE - ANSI B1.20.3
Thread 2 (T2):
1 - 5/16" - 12 UN MALE JIC - ISO 8434-2
D1:
58,17 mm
2,29"
L1:
133,6 mm
5,26"
Guarnizioni:
FKM
58,17
2,29
5,26
133,6
25
1"
|1|
SZ-F16M-JB16F
1” NPTF MALE
1 5/16" - 12 UN
Specs
Thread 1 (T1):
1” NPTF MALE - ANSI B1.20.3
Thread 2 (T2):
1 5/16" - 12 UN - ISO 11926-3 & ISO 8434-2
Hex1:
30,2 mm
1,19"
Hex2:
47,6 mm
1,87"
D1:
58 mm
2,28"
L1:
110 mm
4,33"
Seal kit:
SZ-16-001SK-A
Guarnizioni:
FKM
30,2
1,19
47,6
1,87
58
2,28
4,33
110
SZ-16-001SK-A
25
1"
|1|
SZ-F16M-P16M
1” NPTF MALE
G 1"
Specs
Thread 1 (T1):
1” NPTF MALE - ANSI B1.20.3
Thread 2 (T2):
G 1" - BS 5380
Hex1:
30,2 mm
1,19"
Hex2:
47,6 mm
1,87"
D1:
58,2 mm
2,29"
L1:
105 mm
4,13"
Seal kit:
SZ-16-001SK-A
Guarnizioni:
FKM
30,2
1,19
47,6
1,87
58,2
2,29
4,13
105
SZ-16-001SK-A
25
1"
|1|
SZ-J16M-B16M
1 - 5/16" - 12 UN MALE JIC
Specs
Thread 1 (T1):
1 - 5/16" - 12 UN MALE JIC - ISO 8434-2
Hex1:
30,2 mm
1,19"
Hex2:
47,6 mm
1,87"
D1:
58,2 mm
2,29"
L1:
132,8 mm
5,23"
Seal kit:
SZ-16-001SK-A
Guarnizioni:
FKM
30,2
1,19
47,6
1,87
58,2
2,29
5,23
132,8
SZ-16-001SK-A
25
1"
|1|
SZ-J16M-F16F
1 - 5/16" - 12 UN MALE JIC
NPTF 1" FEMALE
Specs
Thread 1 (T1):
1 - 5/16" - 12 UN MALE JIC - ISO 8434-2
Thread 2 (T2):
NPTF 1" FEMALE - ANSI B1.20.3
Hex1:
30,2 mm
1,19"
Hex2:
47,6 mm
1,87"
D1:
56,4 mm
2,22"
L1:
112,8 mm
4,44"
Seal kit:
SZ-16-001SK-A
Guarnizioni:
FKM
30,2
1,19
47,6
1,87
56,4
2,22
4,44
112,8
SZ-16-001SK-A
25
1"
|1|
SZ-J16M-J16M
1 - 5/16" - 12 UN MALE JIC
1 - 5/16" - 12 UN MALE JIC
Specs
Thread 1 (T1):
1 - 5/16" - 12 UN MALE JIC - ISO 8434-2
Thread 2 (T2):
1 - 5/16" - 12 UN MALE JIC - ISO 8434-2
Hex1:
30,2 mm
1,19"
Hex2:
47,6 mm
1,87"
D1:
58,2 mm
2,29"
L1:
141,5 mm
5,57"
Seal kit:
SZ-16-001SK-A
Guarnizioni:
FKM
* Ex reference S11613LS13LS-10V000
30,2
1,19
47,6
1,87
58,2
2,29
5,57
141,5
SZ-16-001SK-A
25
1"
|1|
SZ-J16M-J16MB
1 - 5/16" - 12 UN MALE JIC
1-5/16”-12 UN MALE BULKHEAD JIC
Specs
Thread 1 (T1):
1 - 5/16" - 12 UN MALE JIC - ISO 8434-2
Thread 2 (T2):
1-5/16”-12 UN MALE BULKHEAD JIC - ISO 8434-2
Hex1:
30,2 mm
1,19"
Hex2:
47,6 mm
1,87"
D1:
58,1 mm
2,29"
L1:
160,5 mm
6,32"
Seal kit:
SZ-16-001SK-A
Guarnizioni:
FKM
* Ex reference S11613LS14LS-10V000
30,2
1,19
47,6
1,87
58,1
2,29
6,32
160,5
SZ-16-001SK-A
25
1"
|1|
SZ-J16M-JB16F
1 - 5/16" - 12 UN MALE JIC
1 5/16" - 12 UN
Specs
Thread 1 (T1):
1 - 5/16" - 12 UN MALE JIC - ISO 8434-2
Thread 2 (T2):
1 5/16" - 12 UN - ISO 11926-3 & ISO 8434-2
Hex1:
30,2 mm
1,19"
Hex2:
47,6 mm
1,87"
D1:
58,2 mm
2,29"
L1:
117,6 mm
4,63"
Seal kit:
SZ-16-001SK-A
Guarnizioni:
FKM
* Ex reference S11613LS00LS-10V000
30,2
1,19
47,6
1,87
58,2
2,29
4,63
117,6
SZ-16-001SK-A
25
1"
|1|
SZ-J16M-P16F
1 - 5/16" - 12 UN MALE JIC
BSPP 1" FEMALE
Specs
Thread 1 (T1):
1 - 5/16" - 12 UN MALE JIC - ISO 8434-2
Thread 2 (T2):
BSPP 1" FEMALE - ISO 1179-1
Hex1:
30,2 mm
1,19"
Hex2:
47,6 mm
1,87"
D1:
58,2 mm
2,29"
L1:
112,8 mm
4,44"
Seal kit:
SZ-16-001SK-A
Guarnizioni:
FKM
30,2
1,19
47,6
1,87
58,2
2,29
4,44
112,8
SZ-16-001SK-A
25
1"
|1|
SZ-J16M-P16M
1 - 5/16" - 12 UN MALE JIC
G 1" 60° CONE MALE THREAD
Specs
Thread 1 (T1):
1 - 5/16" - 12 UN MALE JIC - ISO 8434-2
Thread 2 (T2):
G 1" 60° CONE MALE THREAD - ISO 8434-6
Hex1:
30,2 mm
1,19"
Hex2:
47,6 mm
1,87"
D1:
58,2 mm
2,29"
L1:
131,8 mm
5,19"
Seal kit:
SZ-16-001SK-A
Guarnizioni:
FKM
30,2
1,19
47,6
1,87
58,2
2,29
5,19
131,8
SZ-16-001SK-A
25
1"
|1|
SZ-M36SM-JB16F
M36x2 MALE 25S
1 5/16" - 12 UN
Specs
Thread 1 (T1):
M36x2 MALE 25S - ISO 8434-1-S
Thread 2 (T2):
1 5/16" - 12 UN - ISO 11926-3 & ISO 8434-2
Hex1:
30,2 mm
1,19"
Hex2:
50,8 mm
2"
D1:
61 mm
2,4"
L1:
115 mm
4,53"
Seal kit:
SZ-16-002SK-A
Guarnizioni:
FKM
30,2
1,19
50,8
2
61
2,4
4,53
115
SZ-16-002SK-A
25
1"
|1|
SZ-M36SM-P16F
M36x2 MALE 25S
BSPP 1" FEMALE
Specs
Thread 1 (T1):
M36x2 MALE 25S - ISO 8434-1-S
Thread 2 (T2):
BSPP 1" FEMALE - ISO 1179-1
Hex1:
30,2 mm
1,19"
Hex2:
50,8 mm
2"
D1:
61 mm
2,4"
L1:
108 mm
4,25"
Seal kit:
SZ-16-002SK-A
Guarnizioni:
FKM
30,2
1,19
50,8
2
61
2,4
4,25
108
SZ-16-002SK-A
25
1"
|1|
SZ-P16M-JB16F
G 1" 60° CONE MALE THREAD
1 5/16" - 12 UN
Specs
Thread 1 (T1):
G 1" 60° CONE MALE THREAD - ISO 8434-6
Thread 2 (T2):
1 5/16" - 12 UN - ISO 11926-3 & ISO 8434-2
Hex1:
30,2 mm
1,19"
Hex2:
47,6 mm
1,87"
D1:
58,2 mm
2,29"
L1:
115,3 mm
4,54"
Seal kit:
SZ-12-001SK-A
Guarnizioni:
FKM
30,2
1,19
47,6
1,87
58,2
2,29
4,54
115,3
SZ-12-001SK-A
25
1"
|1|
SZ-P16M-P16F
G 1" 60° CONE MALE THREAD
BSPP 1" FEMALE
Specs
Thread 1 (T1):
G 1" 60° CONE MALE THREAD - ISO 8434-6
Thread 2 (T2):
BSPP 1" FEMALE - ISO 1179-1
Hex1:
30,2 mm
1,19"
Hex2:
47,6 mm
1,87"
D1:
58,2 mm
2,29"
L1:
110 mm
4,33"
Seal kit:
SZ-16-001SK-A
Guarnizioni:
FKM
* Ex reference S11616GG00GG-10V000
30,2
1,19
47,6
1,87
58,2
2,29
4,33
110
SZ-16-001SK-A
25
1"
|1|
SZ-P16M-P16M
G 1" 60° CONE MALE THREAD
G 1" 60° CONE MALE THREAD
Specs
Thread 1 (T1):
G 1" 60° CONE MALE THREAD - ISO 8434-6
Thread 2 (T2):
G 1" 60° CONE MALE THREAD - ISO 8434-6
Hex1:
30,2 mm
1,19"
Hex2:
47,6 mm
1,87"
D1:
58 mm
2,28"
L1:
130 mm
5,12"
Seal kit:
SZ-16-001SK-A
Guarnizioni:
FKM
* Ex reference S11616GG16GG-10V000
30,2
1,19
47,6
1,87
58
2,28
5,12
130
SZ-16-001SK-A
25
1"
|1|
SZ-S16M-JB16F
1-7/16"-12 UN MALE ORFS
1 5/16" - 12 UN
Specs
Thread 1 (T1):
1-7/16"-12 UN MALE ORFS - ISO 8434-3
Thread 2 (T2):
1 5/16" - 12 UN - ISO 11926-3 & ISO 8434-2
Hex1:
30,2 mm
1,19"
Hex2:
50,8 mm
2"
D1:
61,2 mm
2,41"
L1:
115,1 mm
4,53"
Seal kit:
SZ-16-002SK-A
Guarnizioni:
FKM
30,2
1,19
50,8
2
61,2
2,41
4,53
115,1
SZ-16-002SK-A
25
1"
|1|
SZ-S16M-S16F
1-7/16"-12 UN MALE ORFS
1 - 7/16" - 12 UN SAE FEMALE ORFS
Specs
Thread 1 (T1):
1-7/16"-12 UN MALE ORFS - ISO 8434-3
Thread 2 (T2):
1 - 7/16" - 12 UN SAE FEMALE ORFS - ISO 8434-3
Hex1:
30,2 mm
1,19"
Hex2:
50,8 mm
2"
D1:
61 mm
2,4"
L1:
110 mm
4,33"
Seal kit:
SZ-16-002SK-A
Guarnizioni:
FKM
* Ex reference S11611LS27LS-10V000
30,2
1,19
50,8
2
61
2,4
4,33
110
SZ-16-002SK-A
25
1"
|1|
SZ-S16M-S16M
1-7/16"-12 UN MALE ORFS
1-7/16"-12 UN MALE ORFS
Specs
Thread 1 (T1):
1-7/16"-12 UN MALE ORFS - ISO 8434-3
Thread 2 (T2):
1-7/16"-12 UN MALE ORFS - ISO 8434-3
Hex1:
30,2 mm
1,19"
Hex2:
50,8 mm
2"
D1:
61,2 mm
2,41"
L1:
129,3 mm
5,09"
Seal kit:
SZ-16-002SK-A
Guarnizioni:
FKM
* Ex reference S11611LS11LS-10V000
30,2
1,19
50,8
2
61,2
2,41
5,09
129,3
SZ-16-002SK-A
25
1"
|1|
SZ-S16M-S16MB
1-7/16"-12 UN MALE ORFS
1-7/16"-12 UN MALE BULKHEAD ORFS
Specs
Thread 1 (T1):
1-7/16"-12 UN MALE ORFS - ISO 8434-3
Thread 2 (T2):
1-7/16"-12 UN MALE BULKHEAD ORFS - ISO 8434-3
Hex1:
30,2 mm
1,19"
Hex2:
50,8 mm
2"
D1:
61 mm
2,4"
L1:
148 mm
5,83"
Seal kit:
SZ-16-002SK-A
Guarnizioni:
FKM
* Ex reference S11611LS12LS-10V000
30,2
1,19
50,8
2
61
2,4
5,83
148
SZ-16-002SK-A
31,5
1-1/4"
|1-1/4|
SZ-F20M-JB20F
1-1/4” NPTF MALE
1 5/8" - 12 UN
Specs
Thread 1 (T1):
1-1/4” NPTF MALE - ANSI B1.20.3
Thread 2 (T2):
1 5/8" - 12 UN - ISO 11926-3 & ISO 8434-2
Hex1:
38,1 mm
1,5"
Hex2:
60,3 mm
2,37"
D1:
73,2 mm
2,88"
L1:
119,9 mm
4,72"
Seal kit:
SZ-20-001SK-A
Guarnizioni:
FKM
38,1
1,5
60,3
2,37
73,2
2,88
4,72
119,9
SZ-20-001SK-A
31,5
1-1/4"
|1-1/4|
SZ-J20M-C61M
1 - 5/8" - 12 UN MALE JIC
Specs
Thread 1 (T1):
1 - 5/8" - 12 UN MALE JIC - ISO 8434-2
Hex1:
38,1 mm
1,5"
Hex2:
60,3 mm
2,37"
D1:
73,2 mm
2,88"
L1:
176 mm
6,93"
Seal kit:
SZ-20-061SK
Guarnizioni:
FKM
38,1
1,5
60,3
2,37
73,2
2,88
6,93
176
SZ-20-061SK
31,5
1-1/4"
|1-1/4|
SZ-J20M-F16M
1 - 5/8" - 12 UN MALE JIC
1” NPTF MALE
Specs
Thread 1 (T1):
1 - 5/8" - 12 UN MALE JIC - ISO 8434-2
Thread 2 (T2):
1” NPTF MALE - ANSI B1.20.3
Hex1:
38,1 mm
1,5"
Hex2:
60,3 mm
2,37"
D1:
73,2 mm
2,88"
L1:
144,3 mm
5,68"
Seal kit:
SZ-20-001SK-A
Guarnizioni:
FKM
38,1
1,5
60,3
2,37
73,2
2,88
5,68
144,3
SZ-20-001SK-A
31,5
1-1/4"
|1-1/4|
SZ-J20M-F20F
1 - 5/8" - 12 UN MALE JIC
NPTF 1-1/4" FEMALE
Specs
Thread 1 (T1):
1 - 5/8" - 12 UN MALE JIC - ISO 8434-2
Thread 2 (T2):
NPTF 1-1/4" FEMALE - ANSI B1.20.3
Hex1:
38,1 mm
1,5"
Hex2:
60,3 mm
2,37"
D1:
73,2 mm
2,88"
L1:
130 mm
5,12"
Seal kit:
SZ-20-001SK-A
Guarnizioni:
FKM
38,1
1,5
60,3
2,37
73,2
2,88
5,12
130
SZ-20-001SK-A
31,5
1-1/4"
|1-1/4|
SZ-J20M-J20M
1 - 5/8" - 12 UN MALE JIC
1 - 5/8" - 12 UN MALE JIC
Specs
Thread 1 (T1):
1 - 5/8" - 12 UN MALE JIC - ISO 8434-2
Thread 2 (T2):
1 - 5/8" - 12 UN MALE JIC - ISO 8434-2
Hex1:
38,1 mm
1,5"
Hex2:
60,3 mm
2,37"
D1:
73,2 mm
2,88"
L1:
153,7 mm
6,05"
Seal kit:
SZ-20-001SK-A
Guarnizioni:
FKM
38,1
1,5
60,3
2,37
73,2
2,88
6,05
153,7
SZ-20-001SK-A
31,5
1-1/4"
|1-1/4|
SZ-J20M-JB20F
1 5/16" - 12 UN
1 - 5/8" - 12 UN MALE JIC
Specs
Thread 1 (T1):
1 5/16" - 12 UN - ISO 11926-3 & ISO 8434-2
Thread 2 (T2):
1 - 5/8" - 12 UN MALE JIC - ISO 8434-2
Hex1:
38,1 mm
1,5"
Hex2:
60,3 mm
2,37"
D1:
73,2 mm
2,88"
L1:
128,3 mm
5,05"
Seal kit:
SZ-20-001SK-A
Guarnizioni:
FKM
* Ex reference S12013MS00MS-10V000
38,1
1,5
60,3
2,37
73,2
2,88
5,05
128,3
SZ-20-001SK-A
31,5
1-1/4"
|1-1/4|
SZ-J20M-P20F
1 - 5/8" - 12 UN MALE JIC
BSPP 1-1/4" FEMALE
Specs
Thread 1 (T1):
1 - 5/8" - 12 UN MALE JIC - ISO 8434-2
Thread 2 (T2):
BSPP 1-1/4" FEMALE - ISO 1179-1
Hex1:
38,1 mm
1,5"
Hex2:
60,3 mm
2,37"
D1:
73,2 mm
2,88"
L1:
121,9 mm
4,8"
Seal kit:
SZ-20-001SK-A
Guarnizioni:
FKM
38,1
1,5
60,3
2,37
73,2
2,88
4,8
121,9
SZ-20-001SK-A
31,5
1-1/4"
|1-1/4|
SZ-M36SM-M36SMB
M36x2 MALE 25S
M36x2 MALE BULKHEAD 25S
Specs
Thread 1 (T1):
M36x2 MALE 25S - ISO 8434-1-S
Thread 2 (T2):
M36x2 MALE BULKHEAD 25S - ISO 8434-1-S
Hex1:
30,2 mm
1,19"
Hex2:
50,8 mm
2"
D1:
61 mm
2,4"
L1:
151 mm
5,94"
Seal kit:
SZ-16-002SK-A
Guarnizioni:
FKM
* Ex reference S12003NM06NM-10V000
30,2
1,19
50,8
2
61
2,4
5,94
151
SZ-16-002SK-A
31,5
1-1/4"
|1-1/4|
SZ-M42SM-M42SMB
M42x2 MALE 30S
M42x2 MALE BULKHEAD 30S
Specs
Thread 1 (T1):
M42x2 MALE 30S - ISO 8434-1-S
Thread 2 (T2):
M42x2 MALE BULKHEAD 30S - ISO 8434-1-S
Hex1:
39,7 mm
1,56"
Hex2:
60,3 mm
2,37"
D1:
73 mm
2,87"
L1:
180 mm
7,09"
Seal kit:
SZ-20-001SK-A
Guarnizioni:
FKM
39,7
1,56
60,3
2,37
73
2,87
7,09
180
SZ-20-001SK-A
31,5
1-1/4"
|1-1/4|
SZ-M42SM-P20F
M42x2 MALE 30S
BSPP 1-1/4" FEMALE
Specs
Thread 1 (T1):
M42x2 MALE 30S - ISO 8434-1-S
Thread 2 (T2):
BSPP 1-1/4" FEMALE - ISO 1179-1
Hex1:
39,7 mm
1,56"
Hex2:
60,3 mm
2,37"
D1:
73 mm
2,87"
L1:
116 mm
4,57"
Seal kit:
SZ-20-002SK-A
Guarnizioni:
FKM
39,7
1,56
60,3
2,37
73
2,87
4,57
116
SZ-20-002SK-A
31,5
1-1/4"
|1-1/4|
SZ-P20M-J20M
G 1 1/4" 60° CONE MALE THREAD
1 - 5/8" - 12 UN MALE JIC
Specs
Thread 1 (T1):
G 1 1/4" 60° CONE MALE THREAD - ISO 8434-6
Thread 2 (T2):
1 - 5/8" - 12 UN MALE JIC - ISO 8434-2
Hex1:
38,1 mm
1,5"
Hex2:
60,3 mm
2,37"
D1:
73 mm
2,87"
L1:
146 mm
5,75"
Seal kit:
SZ-20-001SK-A
Guarnizioni:
FKM
38,1
1,5
60,3
2,37
73
2,87
5,75
146
SZ-20-001SK-A
31,5
1-1/4"
|1-1/4|
SZ-P20M-P20F
G 1 1/4" 60° CONE MALE THREAD
BSPP 1-1/4" FEMALE
Specs
Thread 1 (T1):
G 1 1/4" 60° CONE MALE THREAD - ISO 8434-6
Thread 2 (T2):
BSPP 1-1/4" FEMALE - ISO 1179-1
Hex1:
38,1 mm
1,5"
Hex2:
60,3 mm
2,37"
D1:
73 mm
2,87"
L1:
115 mm
4,53"
Seal kit:
SZ-20-001SK-A
Guarnizioni:
FKM
Peso:
1900 g
4,19 lb
38,1
1,5
60,3
2,37
73
2,87
4,53
115
SZ-20-001SK-A
31,5
1-1/4"
|1-1/4|
SZ-S20M-JB20F
1-11/16"-12 UN MALE ORFS
1 5/8" - 12 UN
Specs
Thread 1 (T1):
1-11/16"-12 UN MALE ORFS - ISO 8434-3
Thread 2 (T2):
1 5/8" - 12 UN - ISO 11926-3 & ISO 8434-2
Hex1:
39,7 mm
1,56"
Hex2:
60,3 mm
2,37"
D1:
73,2 mm
2,88"
L1:
121,4 mm
4,78"
Seal kit:
SZ-20-002SK-A
Guarnizioni:
FKM
39,7
1,56
60,3
2,37
73,2
2,88
4,78
121,4
SZ-20-002SK-A
31,5
1-1/4"
|1-1/4|
SZ-S20M-S20F
1-11/16"-12 UN MALE ORFS
Specs
Thread 1 (T1):
1-11/16"-12 UN MALE ORFS - ISO 8434-3
Hex1:
39,7 mm
1,56"
Hex2:
60,3 mm
2,37"
D1:
73 mm
2,87"
L1:
119 mm
4,69"
Seal kit:
SZ-20-002SK-A
Guarnizioni:
FKM
39,7
1,56
60,3
2,37
73
2,87
4,69
119
SZ-20-002SK-A
31,5
1-1/4"
|1-1/4|
SZ-S20M-S20M
1-11/16"-12 UN MALE ORFS
1-11/16"-12 UN MALE ORFS
Specs
Thread 1 (T1):
1-11/16"-12 UN MALE ORFS - ISO 8434-3
Thread 2 (T2):
1-11/16"-12 UN MALE ORFS - ISO 8434-3
Hex1:
39,7 mm
1,56"
Hex2:
60,3 mm
2,37"
D1:
73 mm
2,87"
L1:
138 mm
5,43"
Seal kit:
SZ-20-002SK-A
Guarnizioni:
FKM
* Ex reference S12011MS11MS-10V000
39,7
1,56
60,3
2,37
73
2,87
5,43
138
SZ-20-002SK-A
37,5
1-1/2"
|1-1/2|
SZ-J24M-JB24F
1 - 7/8” - 12 UN MALE JIC
1 7/8" - 12 UN
Specs
Thread 1 (T1):
1 - 7/8” - 12 UN MALE JIC - ISO 8434-2
Thread 2 (T2):
1 7/8" - 12 UN - ISO 11926-3 & ISO 8434-2
Hex1:
44,5 mm
1,75"
Hex2:
63,5 mm
2,5"
D1:
79,2 mm
3,12"
L1:
135,6 mm
5,34"
Seal kit:
SZ-24-001SK-A
Guarnizioni:
FKM
44,5
1,75
63,5
2,5
79,2
3,12
5,34
135,6
SZ-24-001SK-A
37,5
1-1/2"
|1-1/2|
SZ-S24M-S24F
2”- 12 UN MALE ORFS
Specs
Thread 1 (T1):
2”- 12 UN MALE ORFS - ISO 8434-3
Hex1:
47,6 mm
1,87"
Hex2:
69,9 mm
2,75"
D1:
82 mm
3,23"
L1:
127 mm
5"
Seal kit:
SZ-24-002SK-A
Guarnizioni:
FKM
47,6
1,87
69,9
2,75
82
3,23
5
127
SZ-24-002SK-A
50
2"
|2|
SZ-J32M-JB32F
2 - 1/2" - 12 UN MALE JIC
2 1/2" - 12 UN
Specs
Thread 1 (T1):
2 - 1/2" - 12 UN MALE JIC - ISO 8434-2
Thread 2 (T2):
2 1/2" - 12 UN - ISO 11926-3 & ISO 8434-2
Hex1:
58,7 mm
2,31"
Hex2:
82,6 mm
3,25"
D1:
100,8 mm
3,97"
L1:
164,1 mm
6,46"
Seal kit:
SZ-32-001SK-A
Guarnizioni:
FKM
58,7
2,31
82,6
3,25
100,8
3,97
6,46
164,1
SZ-32-001SK-A
Forestry Harvester Heads
Roadside Maintenance Machines
Mining Trucks
Underground Mining Machines
Solar Concentrators
Specifiche Tecniche
Dash Size
Dimensioni (
mm
Inch
)
Pressione di esercizio
Pressione di Scoppio
06
10
3/8"
43 MPa
6236,623 psi
172 MPa
172 MPa
24946,491 psi
24946,491 psi
08
12,5
1/2"
43 MPa
6236,623 psi
172 MPa
172 MPa
24946,491 psi
24946,491 psi
12
19
3/4"
43 MPa
6236,623 psi
172 MPa
172 MPa
24946,491 psi
24946,491 psi
16
25
1"
43 MPa
6236,623 psi
172 MPa
172 MPa
24946,491 psi
24946,491 psi
20
31,5
1-1/4"
38 MPa
5511,434 psi
152 MPa
152 MPa
22045,736 psi
22045,736 psi
24
37,5
1-1/2"
38 MPa
5511,434 psi
152 MPa
152 MPa
22045,736 psi
22045,736 psi
32
50
2"
38 MPa
5511,434 psi
152 MPa
152 MPa
22045,736 psi
22045,736 psi
Materiale:
Acciaio
Guarnizioni:
FKM
Temperature di lavoro:
-40 °C to 180 °C
-40 °F to 356 °F
Trattamento della superficie:
CrIII
Warnings:
This product can expose you to chemicals such as Lead or Nickel which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to
www.p65warnings.ca.gov
.
Faster Payoff
Attendere prego...
L'operazione richiesta potrebbe richiedere qualche secondo
